ZEC Series

Catalog

PLUGGABLE TERMINAL BLOCKS ZEC 1.5/ 2-ST-5.0 C2 R1,2

Part	Insulation Height [z]	Insulation Height [z]	Wire Strip Length	Material Flammability Rating	Housing Material	Pitch	Pitch	Number of Levels	Termination Style	Contact Mating Finish	Voltage - UL	Mounting Type	Plug Wire Entry	Current - IEC	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Number of Positions	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Type	Positions Per Level	Voltage - IEC	Color	Current - UL	Convert From (Adapter End)	Convert From (Adapter End)	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Convert To (Adapter End)

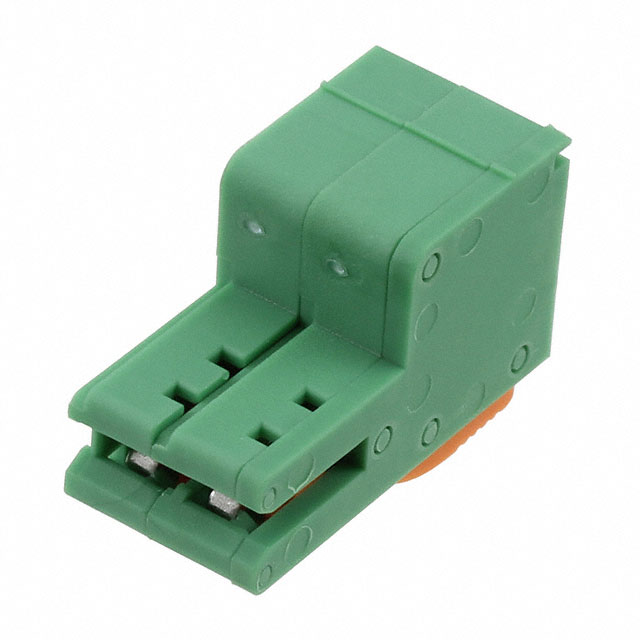

Phoenix Contact 1883048	0.689 in	17.5 mm	7 mm	UL94 V-0	Polyamide (PA) Nylon	0.197 in	5 mm	1	Screwless - Spring Cage Tension Clamp	Tin	300 V	Free Hanging (In-Line)	180 °	10 A	1.5 mm²	0.2 mm²	2	26 AWG	14 AWG	Plug Card Edge	2	630 V	Green	10 A

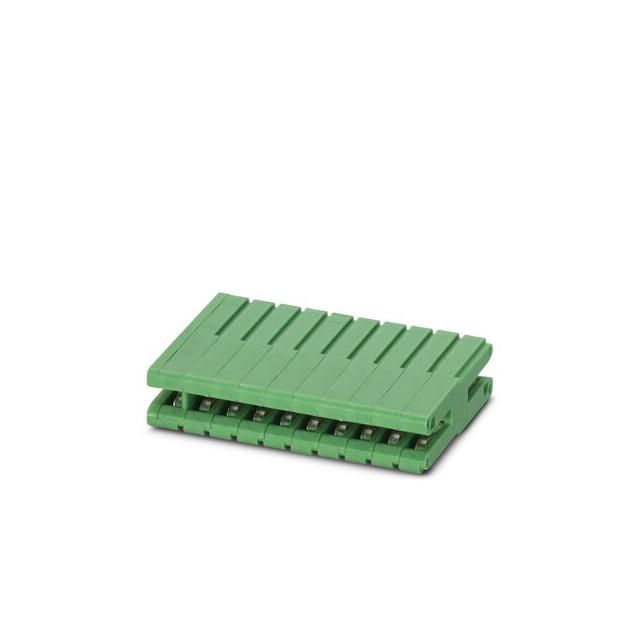

Phoenix Contact 1915738												Free Hanging (In-Line)													Card Edge Connector	10 Pos

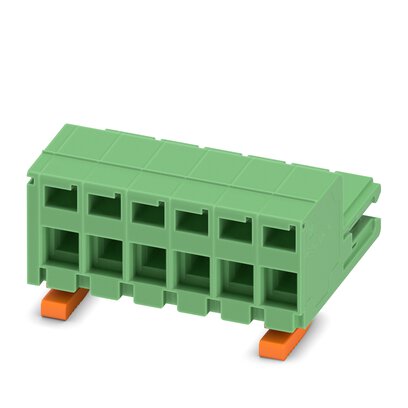

Phoenix Contact 1883080	0.689 in	17.5 mm	7 mm	UL94 V-0	Polyamide (PA) Nylon	0.197 in	5 mm	1	Screwless - Spring Cage Tension Clamp	Tin	300 V	Free Hanging (In-Line)	180 °	10 A	1.5 mm²	0.2 mm²	6	26 AWG	14 AWG	Plug Card Edge	6	630 V	Green	10 A			1.5 mm˛	0.2 mm˛

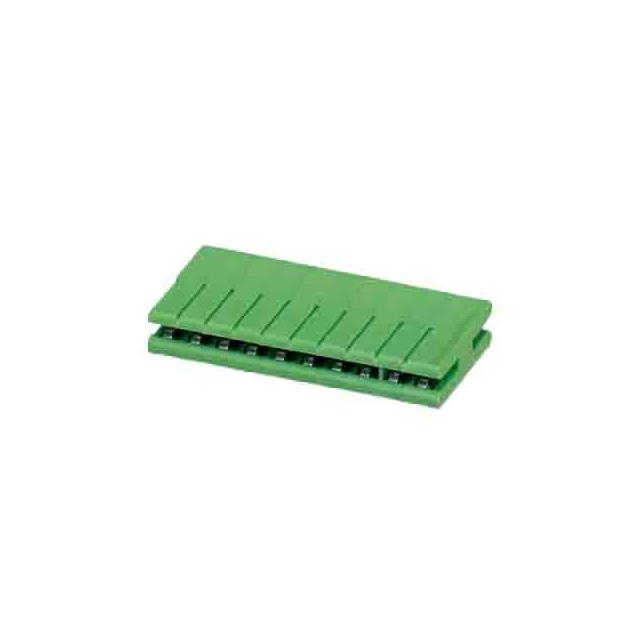

Phoenix Contact 1898279												Free Hanging (In-Line)													Card Edge Connector 3 pos				Card Edge Connector 3 Pos

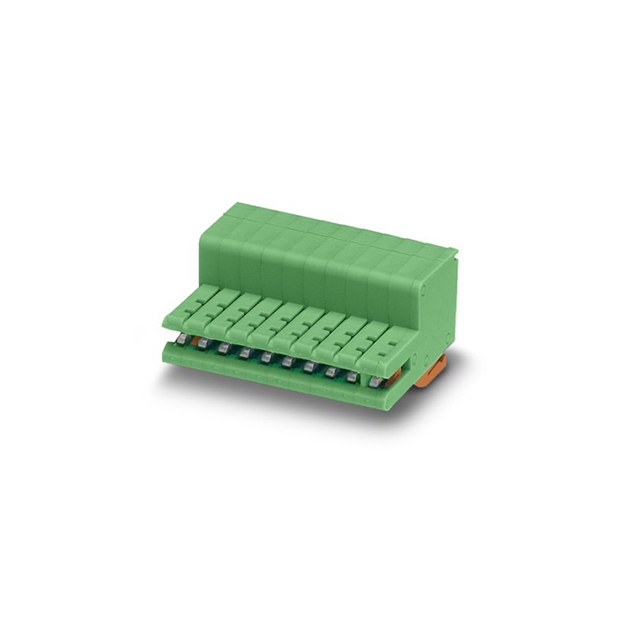

Phoenix Contact 1998205						0.138 "	3.5 mm	1	Screwless - Spring Cage Tension Clamp	Tin		Free Hanging (In-Line)	180 °	8 A	1 mm²	0.2 mm²		24 AWG	16 AWG	Plug Card Edge	3	160 V	Green
Phoenix Contact 1898428												Free Hanging (In-Line)													Card Edge Connector 7 pos				Card Edge Connector 7 pos

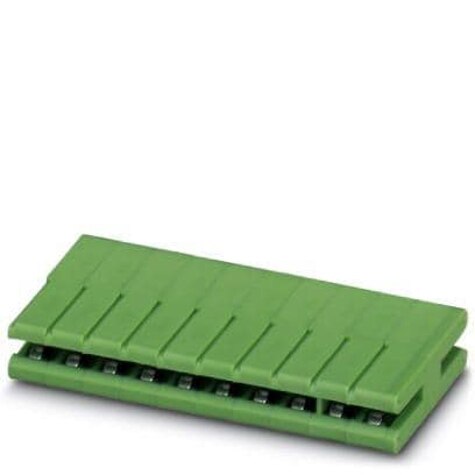

Phoenix Contact 1898318												Free Hanging (In-Line)													Card Edge Connector 7 pos				Card Edge Connector 7 pos
Phoenix Contact 1893711						0.138 "	3.5 mm	1	Screwless - Spring Cage Tension Clamp	Tin	150 V	Free Hanging (In-Line)	180 °	8 A	1 mm²	0.2 mm²	5	26 AWG	16 AWG	Plug Card Edge	5	320 V	Green	8 A

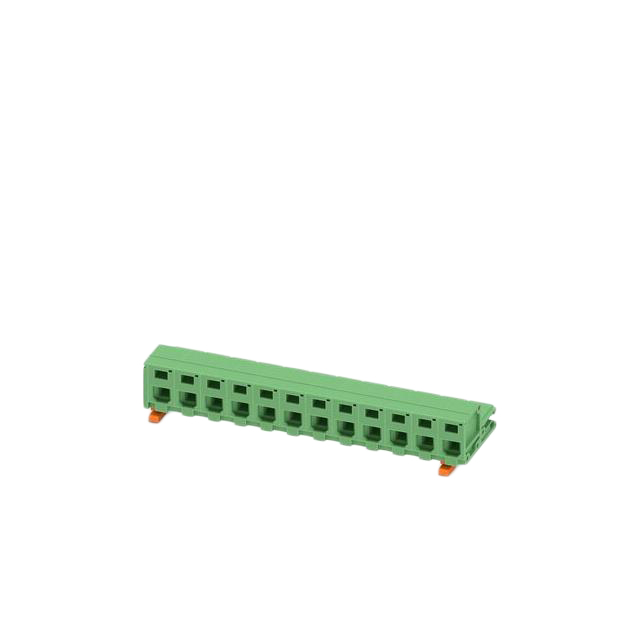

Phoenix Contact 1883242	0.689 in	17.5 mm	7 mm	UL94 V-0	Polyamide (PA) Nylon	0.295 in	7.5 mm	1	Screwless - Spring Cage Tension Clamp	Tin	300 V	Free Hanging (In-Line)	180 °	10 A	1.5 mm²	0.2 mm²	12	26 AWG	14 AWG	Plug Card Edge	12	1 kV	Green	10 A
Phoenix Contact 1898389												Free Hanging (In-Line)													Card Edge Connector 3 pos				Card Edge Connector 3 Pos
