A51F1C-P Series
Manufacturer: ODU
Beta
⌘K

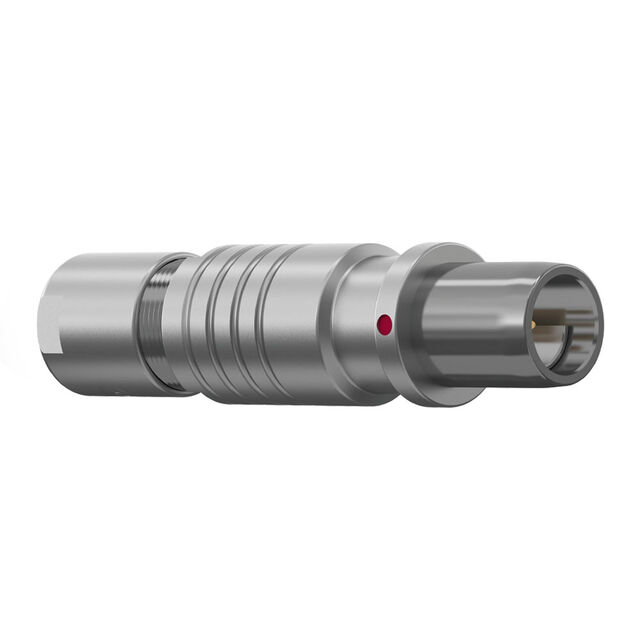

ODU MINI-SNAP PLUG, STY 5, SZ 3,
| Part | Voltage Rating | Shell Finish | Mounting Type | Backshell Material, Plating | Features | Connector Type | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Current Rating (Amps) | Shielding | Insert Material | Primary Material | Fastening Type | Orientation [custom] | Color | Shell Material | Material Flammability Rating | Applications | Shell Size - Insert | Contact Finish - Mating | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
366 V | Chrome over Nickel | Free Hanging (In-Line) | Brass Chrome over Nickel | Backshell | Plug Male Pins | Brass | 120 °C | -40 C | 18 | 0.276 " | 0.295 in | 7.5 mm | 7 mm | 7.5 A | Unshielded | Polyetheretherketone (PEEK) | Metal | Push-Pull | 1 | Silver | Brass | UL94 V-0 | Industrial Medical Military Testing Equipment & Measurement | 3 TPI | Gold | IP68 - Dust Tight Waterproof |
