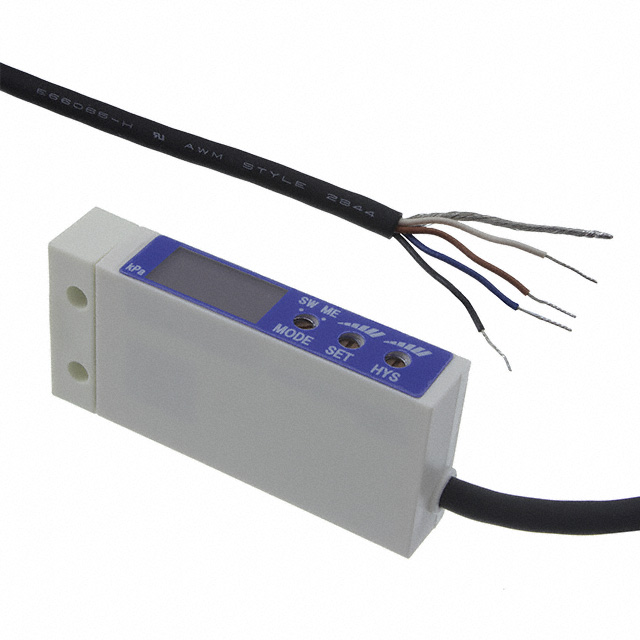

PS6-102 Series

Manufacturer: Nidec Components Corporation

Catalog

PRESSURE SWITCHES

Part	Package / Case	Applications	Features	Port Style	Output Type	Accuracy	Maximum Pressure [Max]	Maximum Pressure [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Port Size	Pressure Type	Operating Pressure	Operating Pressure	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]
Nidec Components Corporation PS6-102G-NWR	Module Box with Display	Industrial Automation	Temperature Compensated	Threaded	NPN - Open Collector	3 %	200 kPa	29.01 PSI	12 V	24 V	Female - M5	Gauge	100 kPa	14.5 PSI	Cable	-10 °C	60 °C
Nidec Components Corporation PS6-102V-PAM	Module Box with Display	Industrial Automation	Temperature Compensated	Threaded	PNP - Open Collector	3 %	200 kPa	29.01 PSI	12 V	24 V	Female - M5	Vented Gauge	100 kPa	14.5 PSI	Cable	-10 °C	60 °C
Nidec Components Corporation PS6-102V-PWR	Module Box with Display	Industrial Automation	Temperature Compensated	Threaded	PNP - Open Collector	3 %	200 kPa	29.01 PSI	12 V	24 V	Female - M5	Vented Gauge	100 kPa	14.5 PSI	Cable	-10 °C	60 °C
Nidec Components Corporation PS6-102V-NAM	Module Box with Display	Industrial Automation	Temperature Compensated	Threaded	NPN - Open Collector	3 %	200 kPa	29.01 PSI	12 V	24 V	Female - M5	Vented Gauge	100 kPa	14.5 PSI	Cable	-10 °C	60 °C
Nidec Components Corporation PS6-102V-PWM	Module Box with Display	Industrial Automation	Temperature Compensated	Threaded	PNP - Open Collector	3 %	200 kPa	29.01 PSI	12 V	24 V	Female - M5	Vented Gauge	100 kPa	14.5 PSI	Cable	-10 °C	60 °C
Nidec Components Corporation PS6-102V-NWM	Module Box with Display	Industrial Automation	Temperature Compensated	Threaded	NPN - Open Collector	3 %	200 kPa	29.01 PSI	12 V	24 V	Female - M5	Vented Gauge	100 kPa	14.5 PSI	Cable	-10 °C	60 °C
Nidec Components Corporation PS6-102G-PWM	Module Box with Display	Industrial Automation	Temperature Compensated	Threaded	PNP - Open Collector	3 %	200 kPa	29.01 PSI	12 V	24 V	Female - M5	Gauge	100 kPa	14.5 PSI	Cable	-10 °C	60 °C
Nidec Components Corporation PS6-102G-PWR	Module Box with Display	Industrial Automation	Temperature Compensated	Threaded	PNP - Open Collector	3 %	200 kPa	29.01 PSI	12 V	24 V	Female - M5	Gauge	100 kPa	14.5 PSI	Cable	-10 °C	60 °C
Nidec Components Corporation PS6-102V-PAR	Module Box with Display	Industrial Automation	Temperature Compensated	Threaded	PNP - Open Collector	3 %	200 kPa	29.01 PSI	12 V	24 V	Female - M5	Vented Gauge	100 kPa	14.5 PSI	Cable	-10 °C	60 °C
Nidec Components Corporation PS6-102V-NWR	Module Box with Display	Industrial Automation	Temperature Compensated	Threaded	NPN - Open Collector	3 %	200 kPa	29.01 PSI	12 V	24 V	Female - M5	Vented Gauge	100 kPa	14.5 PSI	Cable	-10 °C	60 °C
