325-114 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FML 114POS 0.100
| Part | Termination Rows [custom] | Material - Insulation | Card Type | Number of Rows [custom] | Gender | Contact Finish | Pitch | Pitch | Contact Finish Thickness | Contact Finish Thickness | Card Thickness | Card Thickness | Termination | Read Out | Mounting Type | Color | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row [custom] | Contact Material | Contact Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

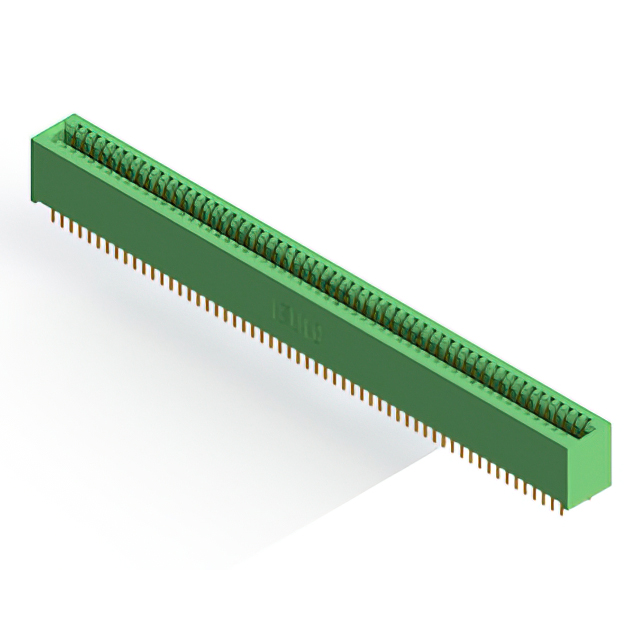

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | 2 | Female | Gold | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Solder | Dual | Through Hole | Green | 114 | -65 ░C | 125 °C | 57 | Copper Alloy | Cantilever | |||

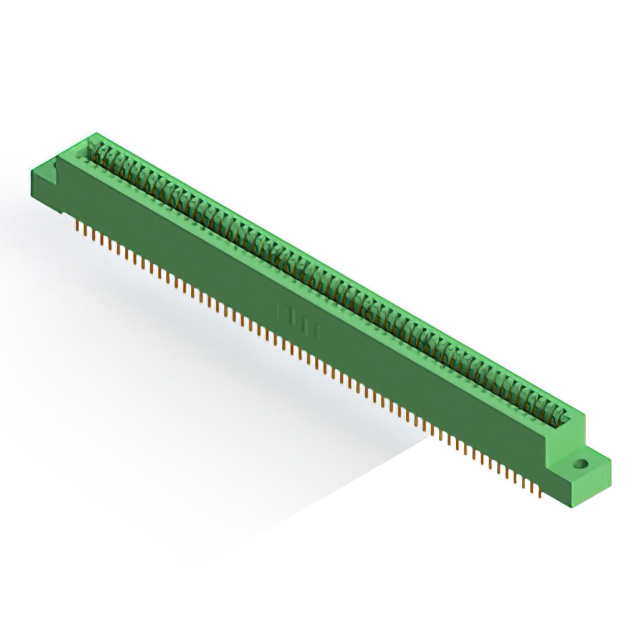

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | 2 | Female | Gold | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Solder | Dual | Through Hole | Green | 114 | -65 ░C | 125 °C | 57 | Copper Alloy | Cantilever | Flush Mount Top Opening Unthreaded | 0.16 " | 4.06 mm |

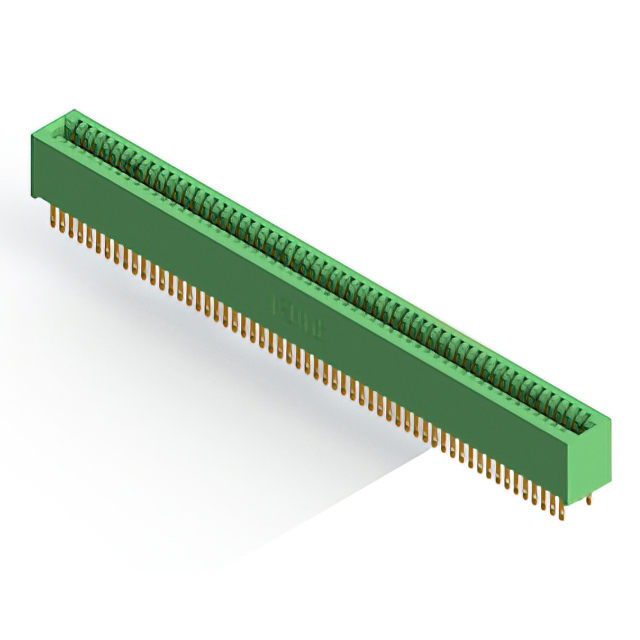

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | 2 | Female | Gold | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Solder Eyelet(s) | Dual | Through Hole | Green | 114 | -65 ░C | 125 °C | 57 | Copper Alloy | Cantilever | |||

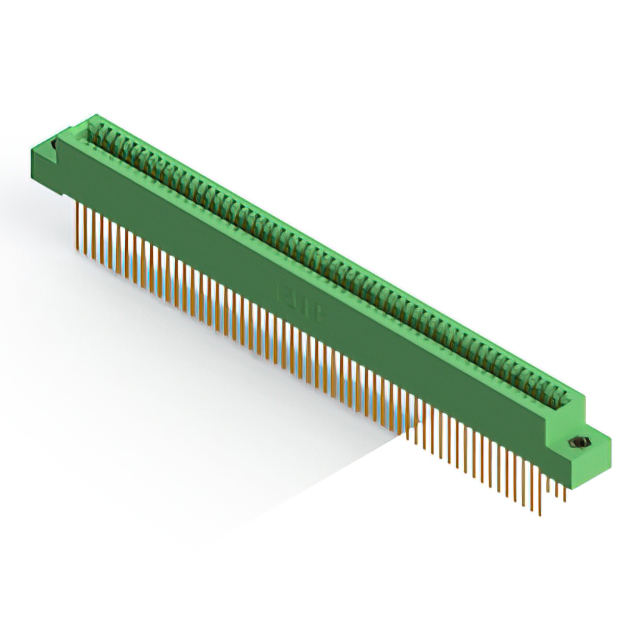

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | 2 | Female | Gold | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Wire Wrap | Dual | Through Hole | Green | 114 | -65 ░C | 125 °C | 57 | Copper Alloy | Cantilever | Flush Mount Top Opening Unthreaded | 0.16 " | 4.06 mm |

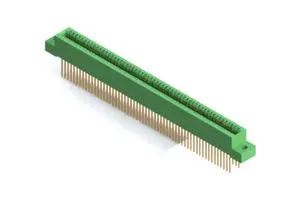

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | 2 | Female | Gold | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Wire Wrap | Dual | Through Hole | Green | 114 | -65 ░C | 125 °C | 57 | Copper Alloy | Cantilever | Flush Mount M3 Threaded Insert Top Opening |
