PPTC372 Series

Catalog

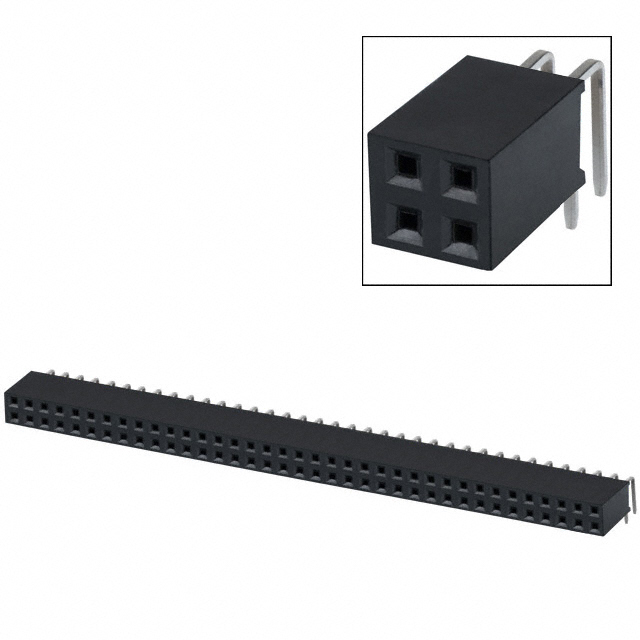

CONN HDR 74POS 0.1 TIN PCB R/A

Part	Contact Material	Insulation Material	Contact Shape	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Mounting Type	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Insulation Color	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Connector Type	Fastening Type	Voltage Rating	Contact Length - Post	Contact Length - Post	Termination	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]
Sullins Connector Solutions PPTC372LJBN	Phosphor Bronze	Polyester	Square	All	-40 C	105 ░C	UL94 V-0	74	0.1 in	2.54 mm	Female Socket	Right Angle Through Hole	3 A	0.1 "	2.54 mm	2	Black	Tin	0.2 in	5.08 mm	Header	Push-Pull	250 V	0.124 in	3.15 mm	Solder
Sullins Connector Solutions PPTC372LFBN-RC	Phosphor Bronze	Polyester	Square	All	-40 C	105 ░C	UL94 V-0	74	0.1 in	2.54 mm	Female Socket	Through Hole	3 A	0.1 "	2.54 mm	2	Black	Tin			Header	Push-Pull	250 V			Solder	0.335 "	8.51 mm	0.126 "	3.2 mm
