2355186 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS 6P,2MM,BRK HDR,SRVT,2.8,0.76AU,BOX

Part	Number of Positions	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Contact Type	Contact Material	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Color	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Shrouding	Current Rating (Amps)	Contact Shape	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post	Mounting Type	Number of Rows	Voltage Rating	Connector Type	Contact Finish - Post	Fastening Type	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity Raychem Cable Protection 2355186-6	6	Solder	30 Áin	0.76 Ám	Thermoplastic	Male Pin	Copper Alloy	0.079 in	2 mm	Black	Gold	4 mm	0.157 in	Unshrouded	2 A	Square	All	2 çm	78.7 çin	0.11 in	2.79 mm	Through Hole	1	125 VAC	Breakaway Header	Tin	Push-Pull	8.3 mm	0.327 in	1.5 mm	0.059 "	UL94 V-0	125 °C	-40 °C

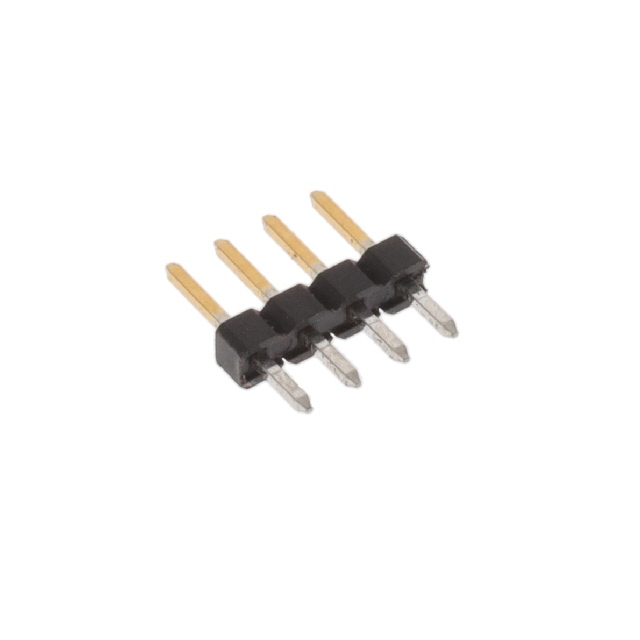

TE Connectivity Raychem Cable Protection 2355186-4	4	Solder	30 Áin	0.76 Ám	Thermoplastic	Male Pin	Copper Alloy	0.079 in	2 mm	Black	Gold	4 mm	0.157 in	Unshrouded	2 A	Square	All	2 çm	78.7 çin	0.11 in	2.79 mm	Through Hole	1	125 VAC	Breakaway Header	Tin	Push-Pull	8.3 mm	0.327 in	1.5 mm	0.059 "	UL94 V-0	125 °C	-40 °C

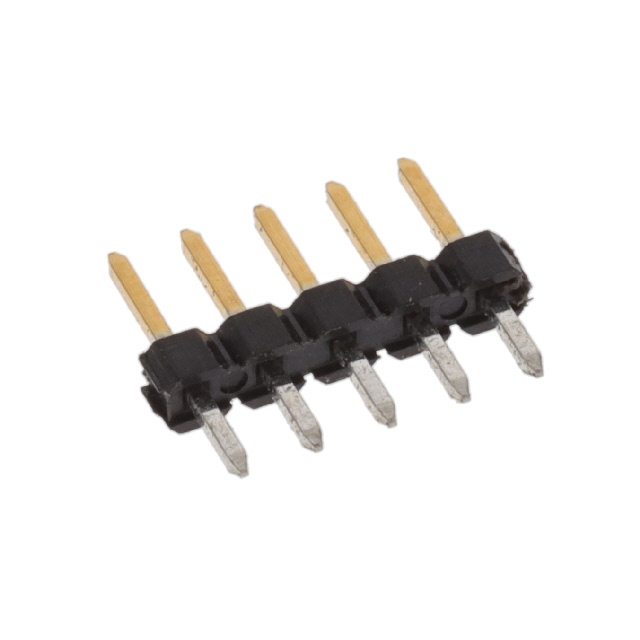

TE Connectivity Raychem Cable Protection 2355186-5		Solder	30 Áin	0.76 Ám	Thermoplastic	Male Pin	Copper Alloy	0.079 in	2 mm	Black	Gold	4 mm	0.157 in	Unshrouded	2 A	Square	All	2 çm	78.7 çin	0.11 in	2.79 mm	Through Hole	1	125 VAC	Breakaway Header	Tin	Push-Pull	8.3 mm	0.327 in	1.5 mm	0.059 "	UL94 V-0	125 °C	-40 °C

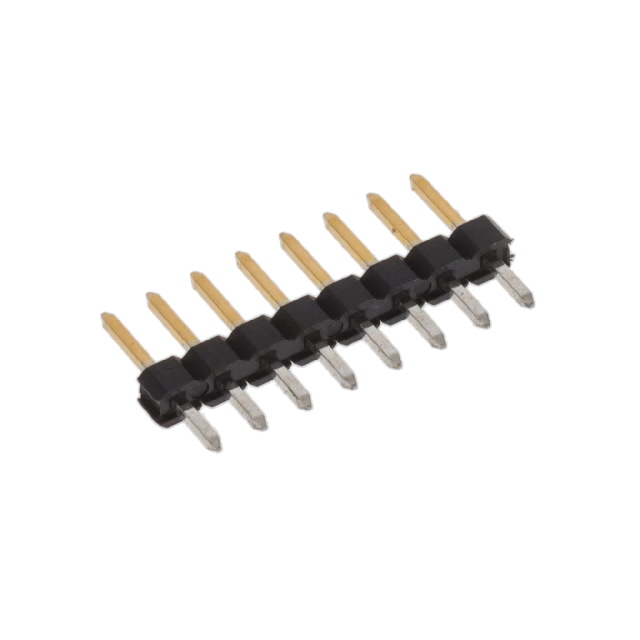

TE Connectivity Raychem Cable Protection 2355186-8	8	Solder	30 Áin	0.76 Ám	Thermoplastic	Male Pin	Copper Alloy	0.079 in	2 mm	Black	Gold	4 mm	0.157 in	Unshrouded	2 A	Square	All	2 çm	78.7 çin	0.11 in	2.79 mm	Through Hole	1	125 VAC	Breakaway Header	Tin	Push-Pull	8.3 mm	0.327 in	1.5 mm	0.059 "	UL94 V-0	125 °C	-40 °C
TE Connectivity Raychem Cable Protection 2355186-3		Solder	30 Áin	0.76 Ám	Thermoplastic	Male Pin	Copper Alloy	0.079 in	2 mm	Black	Gold	4 mm	0.157 in	Unshrouded	2 A	Square	All	2 çm	78.7 çin	0.11 in	2.79 mm	Through Hole	1	125 VAC	Breakaway Header	Tin	Push-Pull	8.3 mm	0.327 in	1.5 mm	0.059 "	UL94 V-0	125 °C	-40 °C

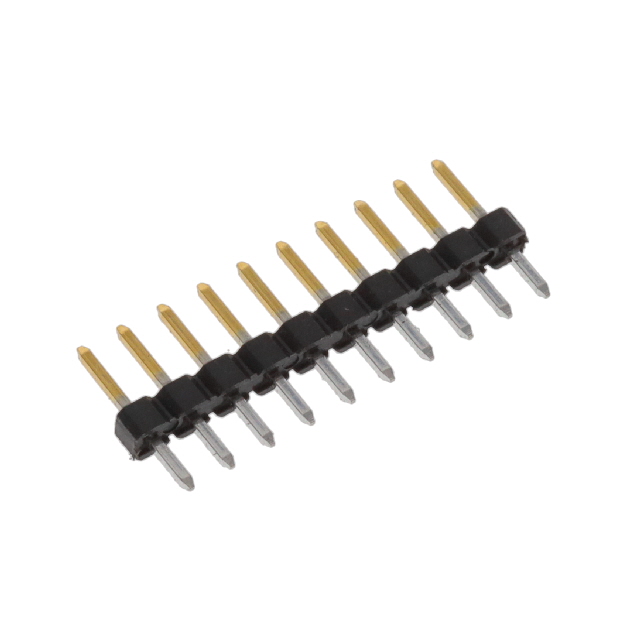

TE Connectivity Raychem Cable Protection 1-2355186-0	10	Solder	30 Áin	0.76 Ám	Thermoplastic	Male Pin	Copper Alloy	0.079 in	2 mm	Black	Gold	4 mm	0.157 in	Unshrouded	2 A	Square	All	2 çm	78.7 çin	0.11 in	2.79 mm	Through Hole	1	125 VAC	Breakaway Header	Tin	Push-Pull	8.3 mm	0.327 in	1.5 mm	0.059 "	UL94 V-0	125 °C	-40 °C
