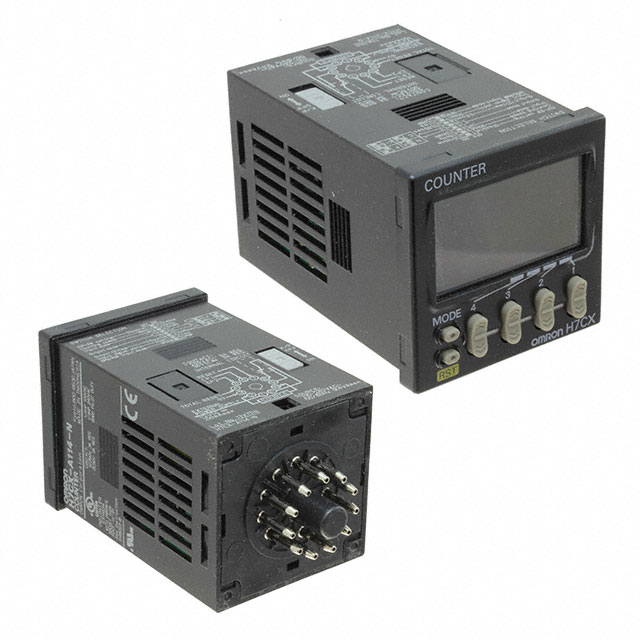

H7CX Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

COUNTER LCD 6 CHAR 100-240V PNL

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Display Characters - Height	Display Characters - Height	Display Type	Ingress Protection	Number of Characters Per Row	Number of Characters Per Row	Type	Reset	Operating Mode	Count Rate	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Input Type	Termination Style	Output Type	Voltage - Supply

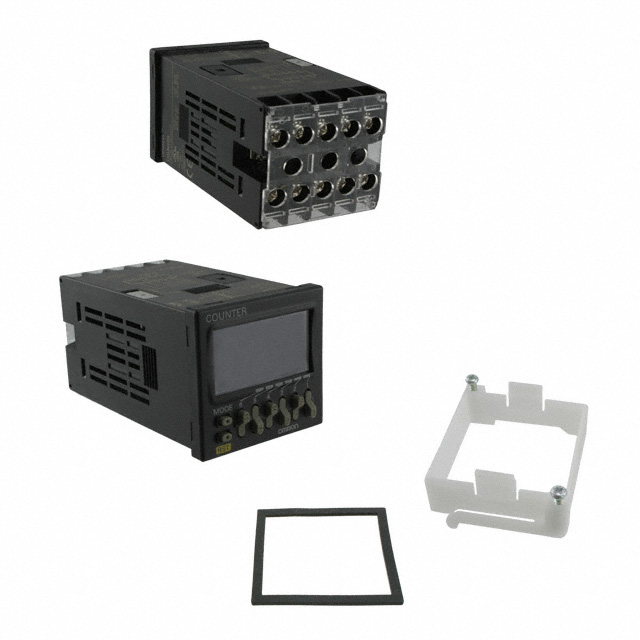

Omron Electronics Inc-EMC Div H7CX-A-N AC100-240	100 VAC	240 VAC	55 °C	-10 °C	6 mm 10 mm	0.236 in 0.394 in	LCD - Dual Color Characters Backlight	IP66	6	6	Preset Totalizer	External Front Panel Programmable	Command Down Individual Quadrature Up	5 kHz 30 Hz	45 mm	45 mm	No Voltage Voltage	Screw Terminal

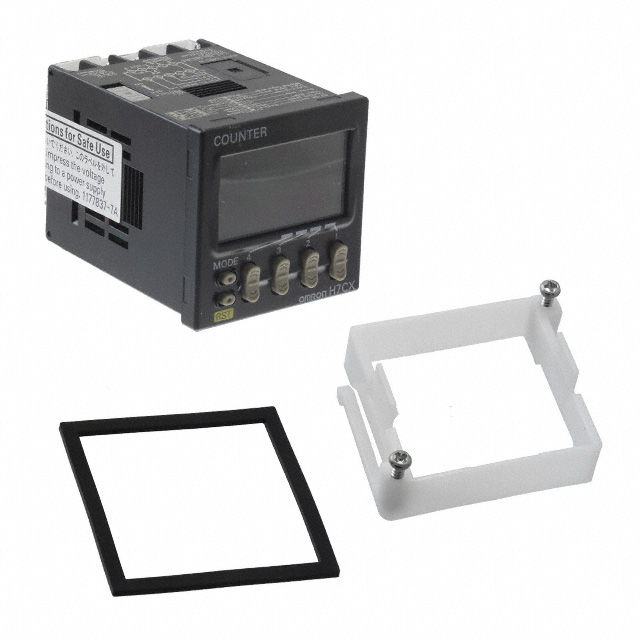

Omron Electronics Inc-EMC Div H7CX-A4SD-N DC12-24	12 V	24 V	55 °C	-10 °C	6 mm 12 mm	0.236 in 0.472 "	LCD - Dual Color Characters Backlight	IP66	4	4	Preset Totalizer	External Front Panel Programmable	Command Down Individual Quadrature Up	5 kHz 30 Hz	45 mm	45 mm	No Voltage Voltage	Screw Terminal	Solid State

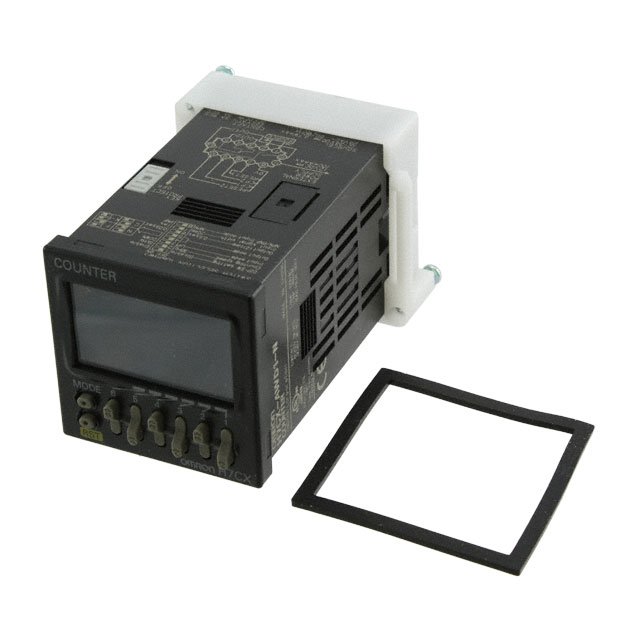

Omron Electronics Inc-EMC Div H7CX-AWD1-N DC12-24/AC24	12 V	24 V	55 °C	-10 °C	6 mm 10 mm	0.236 in 0.394 in	LCD - Dual Color Characters Backlight	IP66	6	6	Batch Preset Tachometer Totalizer	External Front Panel Programmable	Command Down Individual Quadrature Up	10 kHz 30 Hz	45 mm	45 mm	No Voltage Voltage	Screw Terminal		24 VAC

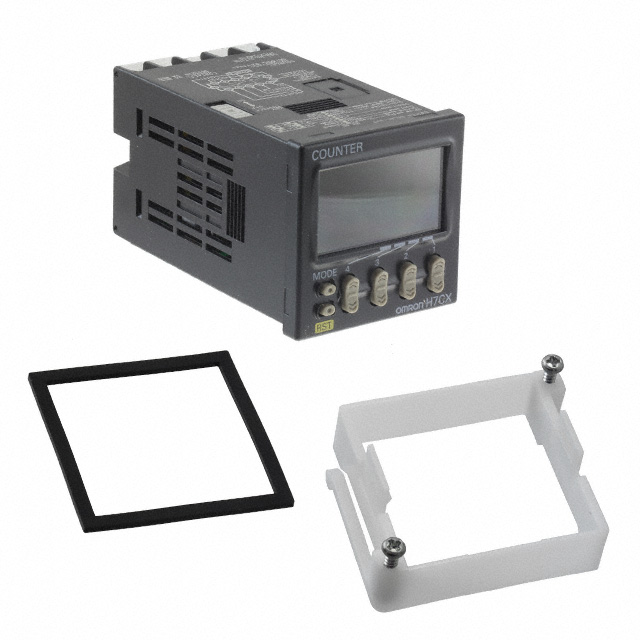

Omron Electronics Inc-EMC Div H7CX-A4W-N AC100-240	100 VAC	240 VAC	55 °C	-10 °C	6 mm 12 mm	0.236 in 0.472 "	LCD - Dual Color Characters Backlight	IP66	4	4	Batch Preset Totalizer	External Front Panel Programmable	Command Down Individual Quadrature Up	5 kHz 30 Hz	45 mm	45 mm	No Voltage Voltage	Screw Terminal

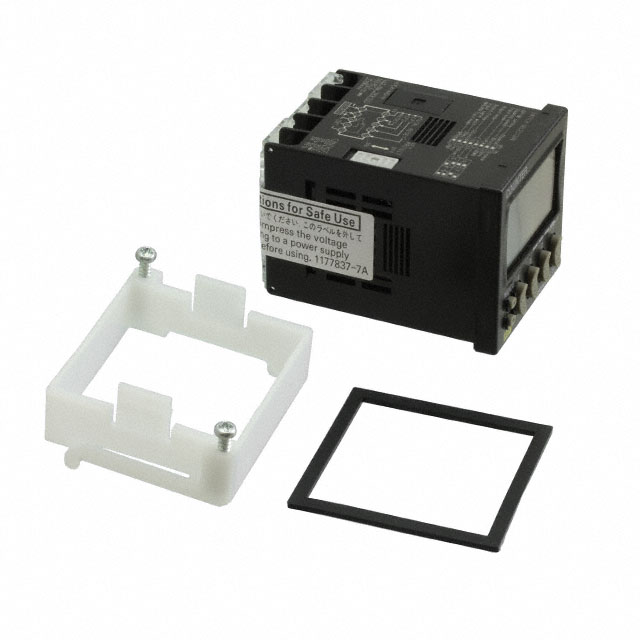

Omron Electronics Inc-EMC Div H7CX-A4D-N-DC1224	12 V	24 V	55 °C	-10 °C	6 mm 12 mm	0.236 in 0.472 "	LCD - Dual Color Characters Backlight	IP66	4	4	Preset Totalizer	External Front Panel Programmable	Command Down Individual Quadrature Up	5 kHz 30 Hz	45 mm	45 mm	No Voltage Voltage	Screw Terminal

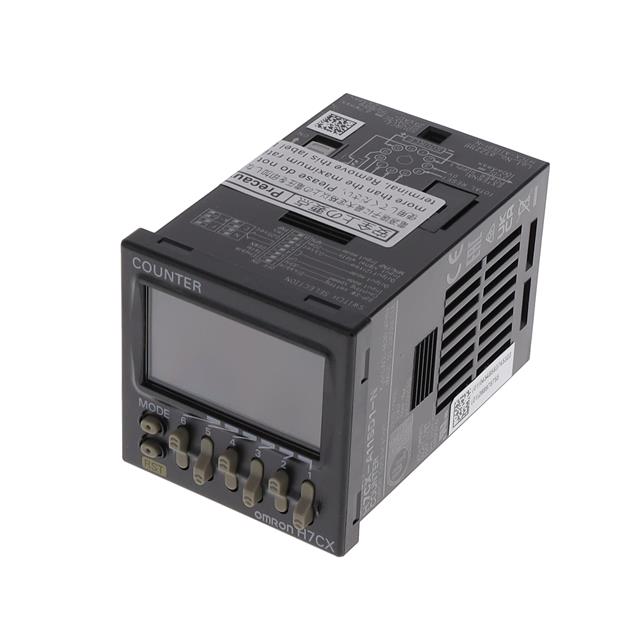

Omron Electronics Inc-EMC Div H7CX-A11SD1-N DC12-24/AC24	12 V	24 V	55 °C	-10 °C	6 mm 10 mm	0.236 in 0.394 in	LCD - Dual Color Characters Backlight	IP66	6	6	Preset Totalizer	External Front Panel Programmable	Command Down Individual Quadrature Up	5 kHz 30 Hz	45 mm	45 mm	No Voltage Voltage	Plug In 11 Pin (Octal)	Solid State	24 VAC
Omron Electronics Inc-EMC Div H7CX-A114-N AC100-240	100 VAC	240 VAC	55 °C	-10 °C	6 mm 12 mm	0.236 in 0.472 "	LCD - Dual Color Characters Backlight	IP66	4	4	Preset Totalizer	External Front Panel Programmable	Command Down Individual Quadrature Up	5 kHz 30 Hz	45 mm	45 mm	No Voltage Voltage	Plug In 11 Pin (Octal)
Omron Electronics Inc-EMC Div H7CX-AUD1-N DC12-24/AC24	12 V	24 V	55 °C	-10 °C	6 mm 10 mm	0.236 in 0.394 in	LCD - Dual Color Characters Backlight	IP66	6	6	Batch Preset Tachometer Totalizer	External Front Panel Programmable	Command Down Individual Quadrature Up	10 kHz 30 Hz	45 mm	45 mm	No Voltage Voltage	Screw Terminal	Relay Solid State	24 VAC

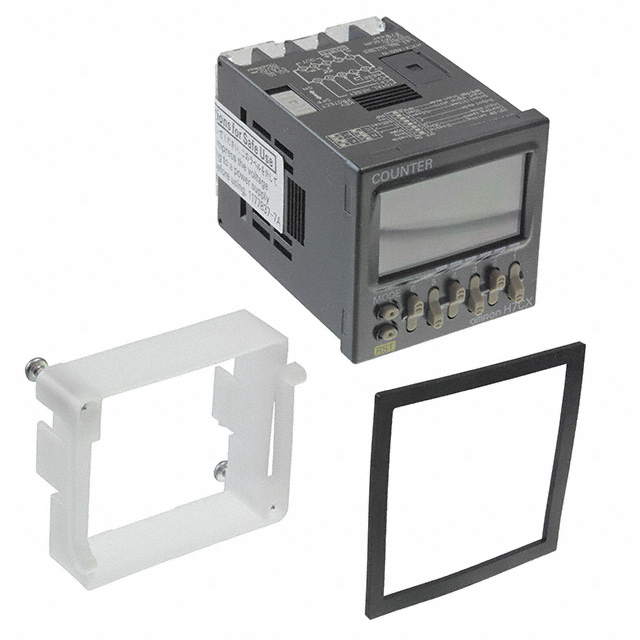

Omron Electronics Inc-EMC Div H7CX-ASD-N DC12-24	12 V	24 V	55 °C	-10 °C	6 mm 10 mm	0.236 in 0.394 in	LCD - Dual Color Characters Backlight	IP66	6	6	Preset Totalizer	External Front Panel Programmable	Command Down Individual Quadrature Up	5 kHz 30 Hz	45 mm	45 mm	No Voltage Voltage	Screw Terminal	Solid State
Omron Electronics Inc-EMC Div H7CX-AWS-N AC100-240	100 VAC	240 VAC	55 °C	-10 °C	6 mm 10 mm	0.236 in 0.394 in	LCD - Dual Color Characters Backlight	IP66	6	6	Batch Preset Tachometer Totalizer	External Front Panel Programmable	Command Down Individual Quadrature Up	10 kHz 30 Hz	45 mm	45 mm	No Voltage Voltage	Screw Terminal	Solid State
