FI2D002 Series
Manufacturer: Belden Inc.
Beta
⌘K

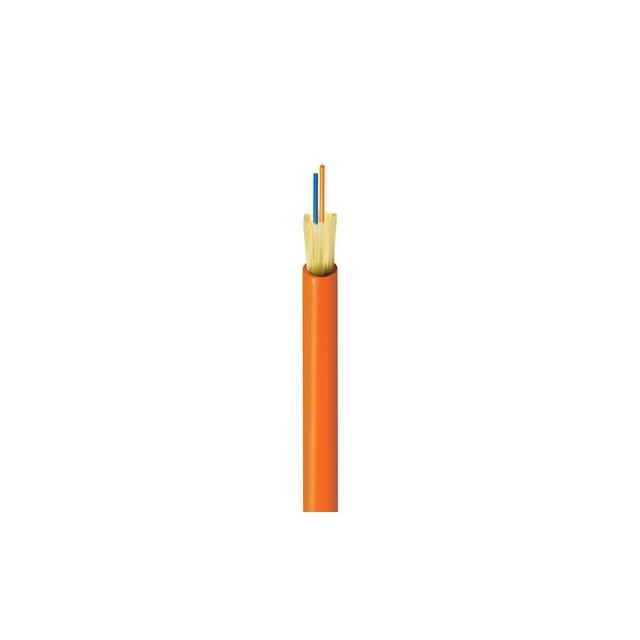

CBL FIBER OPTIC 125UM MULTIMODE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Cladding Diameter [diameter] | Ratings | Core Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Style | Jacket (Insulation) Material | Features | Type | Jacket Color | Tensile Strength |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | -20 ░C | 70 °C | 125 µm | OFNR | 50 µm | 4.67 mm | 0.184 in | Multiple Fibers | Poly-Vinyl Chloride (PVC) | 2 Fibers Rip Cord | Multimode | Orange | 20.4 kg |
 Belden Inc. | 0 °C | 70 °C | 125 µm | OFNP | 50 µm | 4.42 mm | 0.174 in | Multiple Fibers | Poly-Vinyl Chloride (PVC) | 2 Fibers Rip Cord | Multimode | Orange | 20.4 kg |
