9721 Series
Manufacturer: Belden Inc.
Beta
⌘K

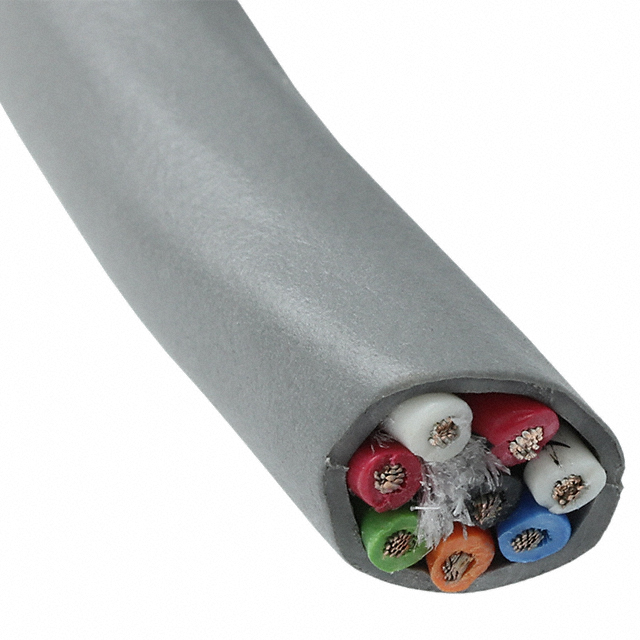

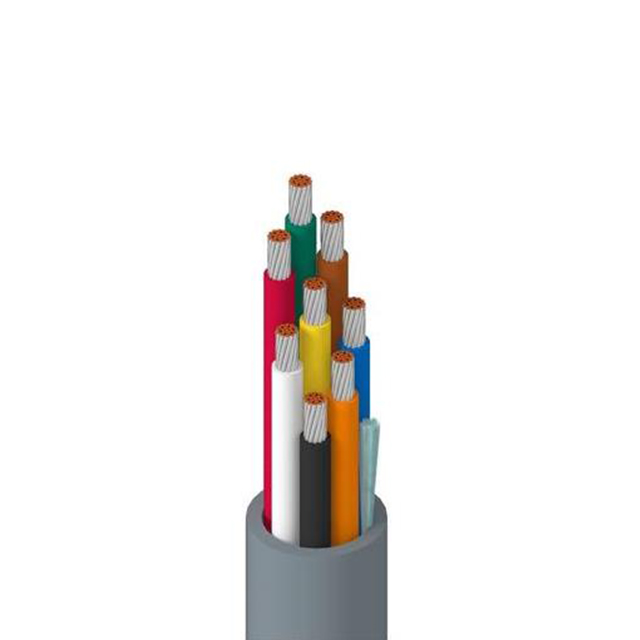

CABLE 8COND 16AWG CHROME
| Part | Wire Gauge | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Material | Length | Length | Cable Type | Number of Conductors [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Jacket Color | Usage | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 16 AWG | Poly-Vinyl Chloride (PVC) | 19 | 29 | 80 °C | -20 ░C | Copper Tinned | 152.4 m | 500 ft | Multi-Conductor | 8 | 1.143 mm | 0.045 in | Chrome | Audio Control Instrumentation | Poly-Vinyl Chloride (PVC) | 0.49 " | 12.45 mm | ||
 Belden Inc. | 16 AWG | Poly-Vinyl Chloride (PVC) | 19 | 29 | 80 °C | -20 ░C | Copper Tinned | Multi-Conductor | 8 | 1.143 mm | 0.045 in | Chrome | Audio Control Instrumentation | Poly-Vinyl Chloride (PVC) | 0.49 " | 12.45 mm | 100 ft | 30.5 m |
