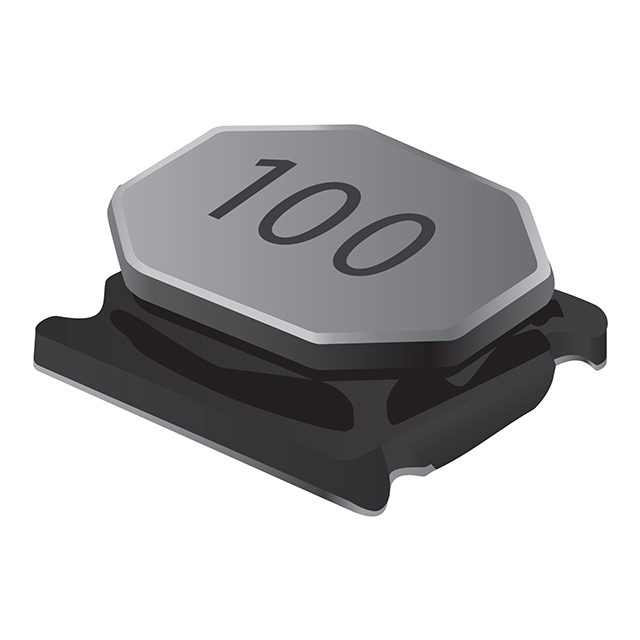

SRN5020TA Series
Manufacturer: Bourns Inc.
Beta
⌘K
INDUCTOR, AEC-Q200, SEMI-SHLD, 1UH/4.1A
| Part | Mounting Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Type | Shielding | Ratings | Current Rating (Amps) | Frequency - Self Resonant | Inductance Frequency - Test | DC Resistance (DCR) | Inductance | Material - Core | Current - Saturation (Isat) | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Q @ Freq | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Surface Mount | 0.079 in | 2 mm | -55 C | 125 °C | Nonstandard | Drum Core Wirewound | Shielded | AEC-Q200 | 4.1 A | 143 MHz | 100 kHz | 20 mOhm | 1 µH | Ferrite | 5 A | 0.197 in | 0.197 " | 5 mm | 5 mm | 15 100 kHz | 30 % |
Bourns Inc. | Surface Mount | 0.079 in | 2 mm | -55 C | 125 °C | Nonstandard | Drum Core Wirewound | Shielded | AEC-Q200 | 800 mA | 20 MHz | 100 kHz | 335 mOhm | 33 µH | Ferrite | 800 mA | 0.197 in | 0.197 " | 5 mm | 5 mm | 15 100 kHz | 20 % |
Bourns Inc. | Surface Mount | 0.079 in | 2 mm | -55 C | 125 °C | Nonstandard | Drum Core Wirewound | Shielded | AEC-Q200 | 1.17 A | 28 MHz | 100 kHz | 190 mOhm | 18 µH | Ferrite | 1.2 A | 0.197 in | 0.197 " | 5 mm | 5 mm | 15 100 kHz | 20 % |
