65825 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

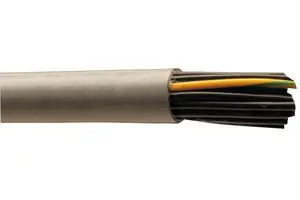

MULTICONDUCTOR CABLE, XTRA GUARD® FLEX CONTROL, UNSHIELDED, 25 CONDUCTOR, 18 AWG, 1 MM², 1000 FT
| Part | Cable Type | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Length | Length | Ratings | Conductor Insulation | Wire Gauge | Features | Jacket Color | Number of Conductors [custom] | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Multi-Conductor | 600 V | 0.05 in | 1.27 mm | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | ISO 10993 UL Style 2587 | Poly-Vinyl Chloride (PVC) | 18 AWG | Biological Compatibility | Slate | 25 | Copper Bare | 0.666 " | 16.92 mm | 16 | 30 AWG | ||
 ALPHA WIRE | Multi-Conductor | 600 V | 0.05 in | 1.27 mm | Poly-Vinyl Chloride (PVC) | ISO 10993 UL Style 2587 | Poly-Vinyl Chloride (PVC) | 18 AWG | Biological Compatibility | Slate | 25 | Copper Bare | 0.666 " | 16.92 mm | 16 | 30 AWG | 100 ft | 30.5 m |
