45481 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

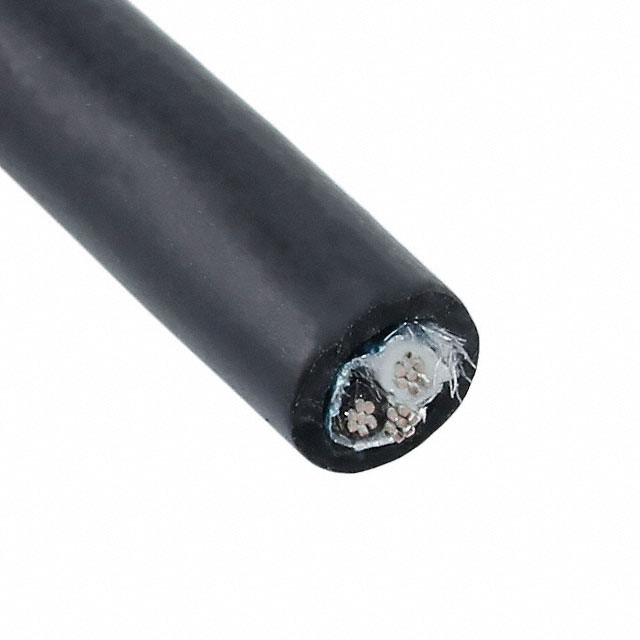

CABLE 2COND 24AWG BLK SHLD 1000'
| Part | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Voltage | Shield Material | Wire Gauge | Cable Type | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Jacket (Insulation) Material | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Coverage | Conductor Insulation | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Black | -50 °C | 125 °C | ISO 10993 | 7 | 30 AWG | Foil | 300 V | Aluminum | 24 AWG | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | 5.64 mm | 0.222 in | 2 | Thermoplastic Elastomer (TPE) | Copper Tinned | 1.143 mm | 0.045 in | 100 % | Thermoplastic Elastomer (TPE) | 1000 ft | 304.8 m |
ALPHA WIRE | Blue | -50 °C | 125 °C | ISO 10993 | 7 | 30 AWG | Foil | 300 V | Aluminum | 24 AWG | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | 5.64 mm | 0.222 in | 2 | Thermoplastic Elastomer (TPE) | Copper Tinned | 1.143 mm | 0.045 in | 100 % | Thermoplastic Elastomer (TPE) | 1000 ft | 304.8 m |
ALPHA WIRE | Slate | -50 °C | 125 °C | ISO 10993 | 7 | 30 AWG | Foil | 300 V | Aluminum | 24 AWG | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | 5.64 mm | 0.222 in | 2 | Thermoplastic Elastomer (TPE) | Copper Tinned | 1.143 mm | 0.045 in | 100 % | Thermoplastic Elastomer (TPE) | 1000 ft | 304.8 m |
