1969582 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

ASSY, HDR, VERT, NO-BOSS, DUAL ROW,EP2.5

Part	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Termination	Connector Type	Insulation Color	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Mounting Type	Insulation Material	Contact Material	Voltage Rating	Insulation Height	Insulation Height	Applications	Shrouding	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Style	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Number of Rows	Contact Type	Current Rating (Amps)	Number of Positions

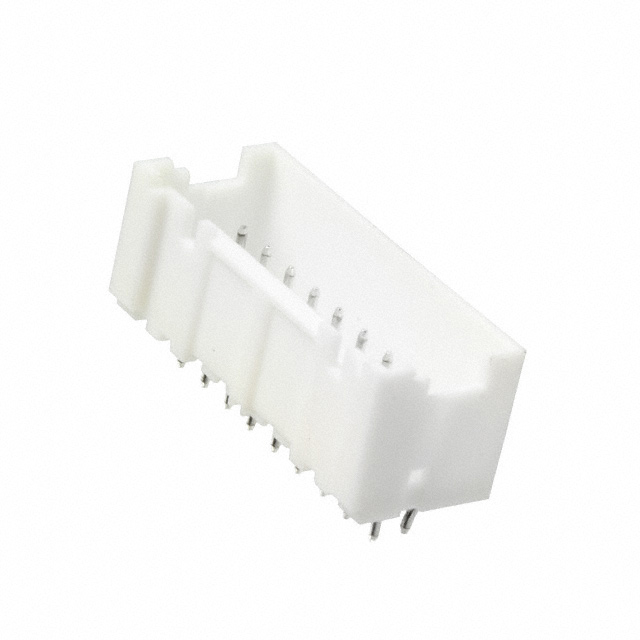

TE Connectivity Raychem Cable Protection 1-1969582-8	Friction Lock	105 ░C	-55 °C	UL94 V-0	Kinked Pin Solder	Header	White	0.134 in	3.4 mm	All	Through Hole	Polyamide (PA66) Nylon 6/6	Brass	250 VAC	9.8 mm	0.386 in	General Purpose Industrial Lighting	Shrouded - 4 Wall	Tin	2.5 mm	0.098 in	Board to Cable/Wire	Circular	0.098 in	2.5 mm	18	2	Male Pin	4.2 A

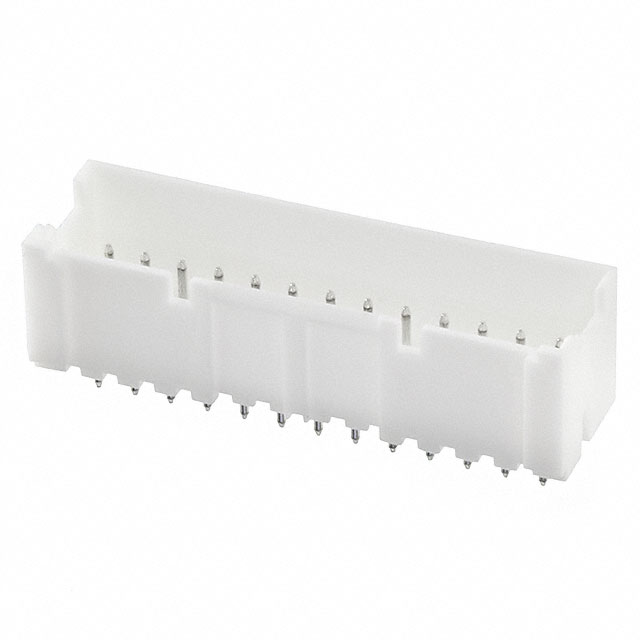

TE Connectivity Raychem Cable Protection 2-1969582-6	Friction Lock	105 ░C	-55 °C	UL94 V-0	Kinked Pin Solder	Header	White	0.134 in	3.4 mm	All	Through Hole	Polyamide (PA66) Nylon 6/6	Brass	250 VAC	9.8 mm	0.386 in	General Purpose Industrial Lighting	Shrouded - 4 Wall	Tin	2.5 mm	0.098 in	Board to Cable/Wire	Circular	0.098 in	2.5 mm	26	2	Male Pin	4.2 A

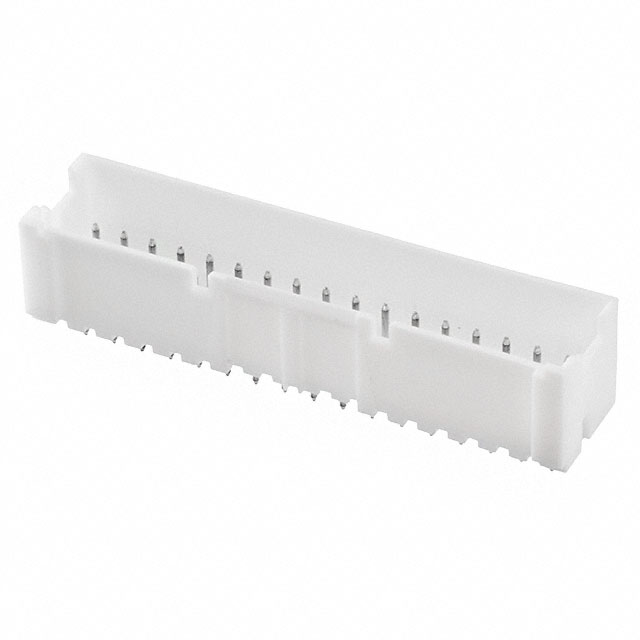

TE Connectivity Raychem Cable Protection 3-1969582-4	Friction Lock	105 ░C	-55 °C	UL94 V-0	Kinked Pin Solder	Header	White	0.134 in	3.4 mm	All	Through Hole	Polyamide (PA66) Nylon 6/6	Brass	250 VAC	9.8 mm	0.386 in	General Purpose Industrial Lighting	Shrouded - 4 Wall	Tin	2.5 mm	0.098 in	Board to Cable/Wire	Circular	0.098 in	2.5 mm	34	2	Male Pin	4.2 A

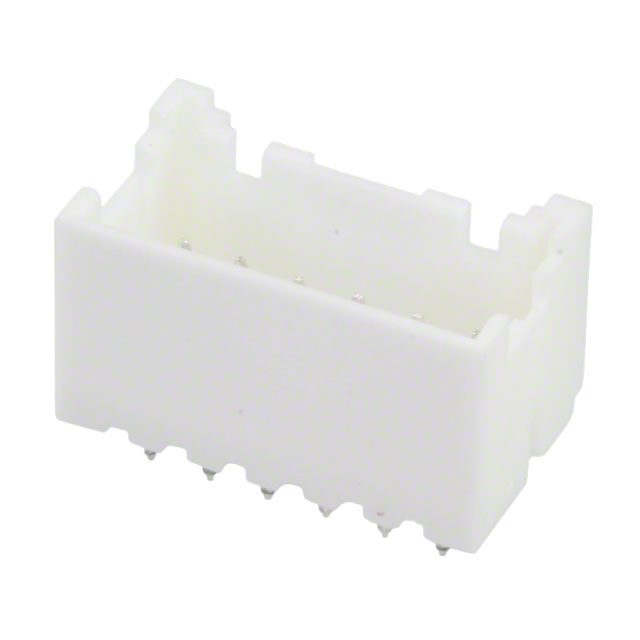

TE Connectivity Raychem Cable Protection 1-1969582-2	Friction Lock	105 ░C	-55 °C	UL94 V-0	Kinked Pin Solder	Header	White	0.134 in	3.4 mm	All	Through Hole	Polyamide (PA66) Nylon 6/6	Brass	250 VAC	9.8 mm	0.386 in	General Purpose Industrial Lighting	Shrouded - 4 Wall	Tin	2.5 mm	0.098 in	Board to Cable/Wire	Circular	0.098 in	2.5 mm	12	2	Male Pin	4.2 A

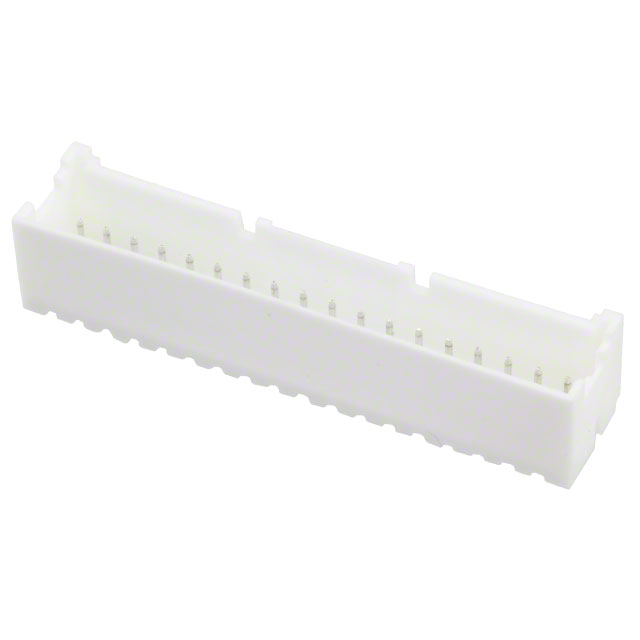

TE Connectivity Raychem Cable Protection 3-1969582-6	Friction Lock	105 ░C	-55 °C	UL94 V-0	Kinked Pin Solder	Header	White	0.134 in	3.4 mm	All	Through Hole	Polyamide (PA66) Nylon 6/6	Brass	250 VAC	9.8 mm	0.386 in	General Purpose Industrial Lighting	Shrouded - 4 Wall	Tin	2.5 mm	0.098 in	Board to Cable/Wire	Circular	0.098 in	2.5 mm	36	2	Male Pin	4.2 A
TE Connectivity Raychem Cable Protection 1-1969582-6	Friction Lock	105 ░C	-55 °C	UL94 V-0	Kinked Pin Solder	Header	White	0.134 in	3.4 mm	All	Through Hole	Polyamide (PA66) Nylon 6/6	Brass	250 VAC	9.8 mm	0.386 in	General Purpose Industrial Lighting	Shrouded - 4 Wall	Tin	2.5 mm	0.098 in	Board to Cable/Wire	Circular	0.098 in	2.5 mm		2	Male Pin	4.2 A	16
