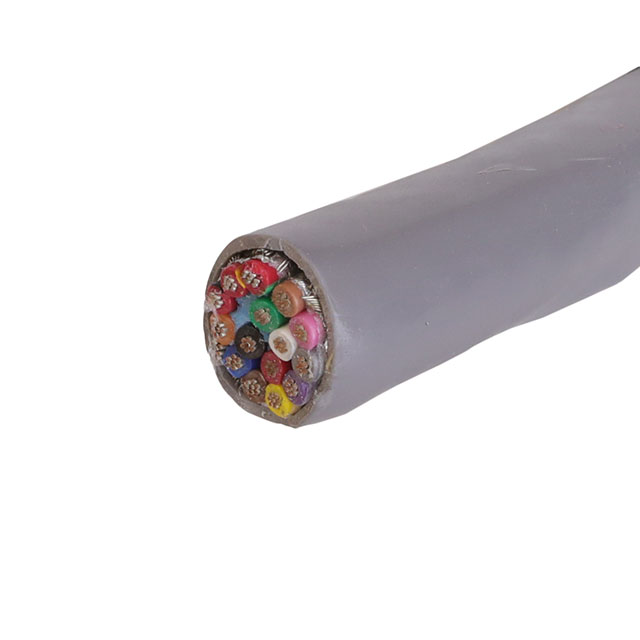

5160/15C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CBL 15COND 20AWG SHLD 1000=1000'
| Part | Ratings | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Shield Coverage | Number of Conductors | Jacket Color | Cable Type | Usage | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Jacket (Insulation) Material | Shield Material | Voltage | Features | Conductor Insulation | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | ISO 10993 UL Style 2464 | Copper Tinned | -35 °C | 105 ░C | 10.64 mm | 0.419 in | 20 AWG | 70 % 100 % | 15 | Slate | Multi-Conductor | Communication Control | 28 | 7 | Braid Foil | Poly-Vinyl Chloride (PVC) | Copper Tinned Suprashield® | 300 V | Biological Compatibility Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | ||
 ALPHA WIRE | ISO 10993 UL Style 2464 | Copper Tinned | -35 °C | 105 ░C | 10.64 mm | 0.419 in | 20 AWG | 70 % 100 % | 15 | Slate | Multi-Conductor | Communication Control | 28 | 7 | Braid Foil | Poly-Vinyl Chloride (PVC) | Copper Tinned Suprashield® | 300 V | Biological Compatibility Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | 500 ' | 152.4 m |
