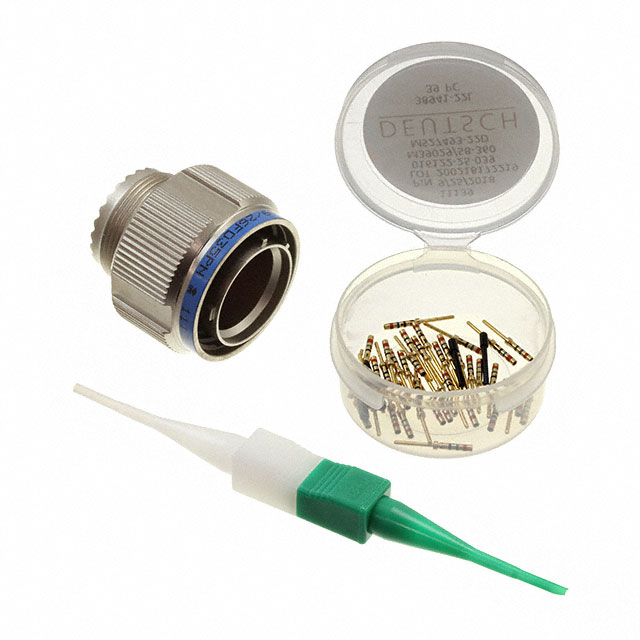

D38999/26FD Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN PLUG FMALE 19POS GOLD CRIMP
| Part | Applications | Contact Material | Insert Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Grade | Fastening Type | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Color | Shell Finish | Mounting Type | Ingress Protection | Orientation | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Primary Material | Shell Material | Qualification | Number of Positions | Shell Size, MIL | Features | Shielding | Connector Type | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Aviation Communication Systems Industrial Military | Copper Alloy | Thermoplastic | 50 µin | 1.27 µm | Crimp | Military | Threaded | 15 | 19 | Silver | Nickel | Free Hanging (In-Line) | Environment Resistant | N (Normal) | 7.5 A | -65 ░C | 200 °C | Metal | Aluminum | MIL-DTL-38999 Series III | 19 | D | Self Locking | Shielded | Plug Female Sockets | Gold |
 TE Connectivity AMP Connectors | Aviation Communication Systems Industrial Military | Copper Alloy | Thermoplastic | 50 µin | 1.27 µm | Crimp | Military | Threaded | 15 | 35 | Silver | Nickel | Free Hanging (In-Line) | Environment Resistant | N (Normal) | 5 A | -65 ░C | 200 °C | Metal | Aluminum | MIL-DTL-38999 Series III | 37 | D | Self Locking | Shielded | Plug Male Pins | Gold |
