TSA89 Series

Manufacturer: ConductRF

Catalog

CBL ASSY NTYPE PLUG TO PLUG 5'

Part	Connector Impedance	Cable Impedance	2nd Connector	Cable Type [diameter]	Cable Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Style	Length	Length	Length	Features	Overall Impedance	2nd Contact Gender	2nd Connector Mounting Type	Frequency - Max [Max]	1st Connector Mounting Type	1st Contact Gender	Style [Max]	Style [Min]	1st Connector	2nd Connector	1st Connector	Style
ConductRF TSA89-N1N1-S60	50 Ohms	50 Ohms	N-Type Plug	4.95 mm	Coaxial Cable	Black	-55 C	125 °C	N-Type to N-Type	60 in	1.5 m	5 ft	Shielded	50 Ohms	Male	Free Hanging (In-Line)	18 GHz	Free Hanging (In-Line)	Male
ConductRF TSA89-D1D1-S60	50 Ohms	50 Ohms		4.95 mm	Coaxial Cable	Black	-55 C	125 °C		60 in	1.5 m	5 ft	Shielded	50 Ohms	Male	Free Hanging (In-Line)	40 GHz	Free Hanging (In-Line)	Male	2.92 mm	2.92 mm	2.92 mm	2.92 mm

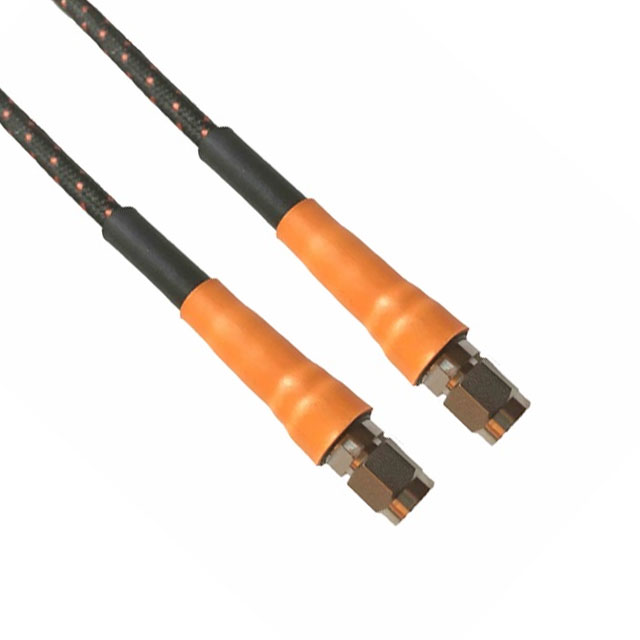

ConductRF TSA89-S1S1-S36	50 Ohms	50 Ohms	SMA Plug	4.95 mm	Coaxial Cable	Black	-55 C	125 °C	SMA to SMA	36 in	91.44 cm		Shielded	50 Ohms	Male	Free Hanging (In-Line)	27 GHz	Free Hanging (In-Line)	Male					SMA Plug
ConductRF TSA89-D1D1-S36	50 Ohms	50 Ohms		4.95 mm	Coaxial Cable	Black	-55 C	125 °C		36 in	91.44 cm		Shielded	50 Ohms	Male	Free Hanging (In-Line)	40 GHz	Free Hanging (In-Line)	Male	2.92 mm	2.92 mm	2.92 mm	2.92 mm
ConductRF TSA89-S1S1-S60	50 Ohms	50 Ohms	SMA Plug	4.95 mm	Coaxial Cable	Black	-55 C	125 °C	SMA to SMA	60 in	1.5 m	5 ft	Shielded	50 Ohms	Male	Free Hanging (In-Line)	27 GHz	Free Hanging (In-Line)	Male					SMA Plug
ConductRF TSA89-N1N1-S36	50 Ohms	50 Ohms	N-Type Plug	4.95 mm	Coaxial Cable	Black	-55 C	125 °C	N-Type to N-Type	36 in	91.44 cm		Shielded	50 Ohms	Male	Free Hanging (In-Line)	18 GHz	Free Hanging (In-Line)	Male
ConductRF TSA89-E1E1-S60	50 Ohms	50 Ohms		4.95 mm	Coaxial Cable	Black	-55 C	125 °C		60 in	1.5 m	5 ft	Shielded	50 Ohms	Male	Free Hanging (In-Line)	32 GHz	Free Hanging (In-Line)	Male	3.5 mm	3.5 mm	3.5 mm	3.5 mm
ConductRF TSA89-E1N1-S36	50 Ohms	50 Ohms	N-Type Plug	4.95 mm	Coaxial Cable	Black	-55 C	125 °C	N-Type	36 in	91.44 cm		Shielded	50 Ohms	Male	Free Hanging (In-Line)	18 GHz	Free Hanging (In-Line)	Male			3.5 mm			3.5 mm
ConductRF TSA89-E1E1-S36	50 Ohms	50 Ohms		4.95 mm	Coaxial Cable	Black	-55 C	125 °C		36 in	91.44 cm		Shielded	50 Ohms	Male	Free Hanging (In-Line)	32 GHz	Free Hanging (In-Line)	Male	3.5 mm	3.5 mm	3.5 mm	3.5 mm
