1355154 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

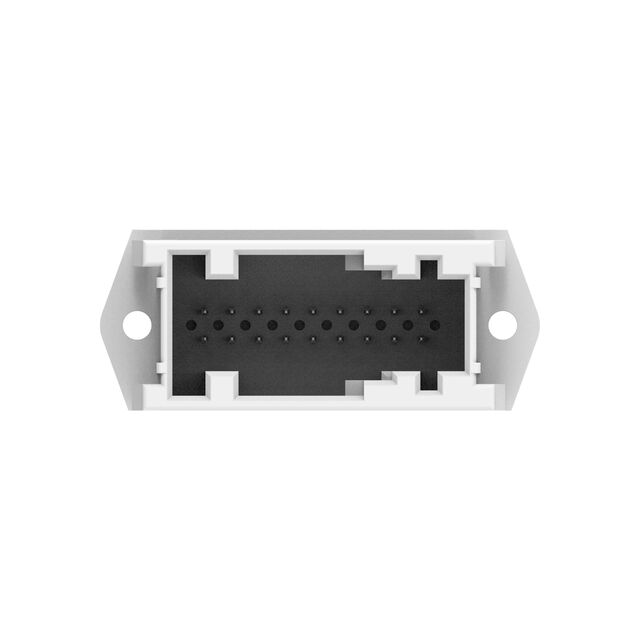

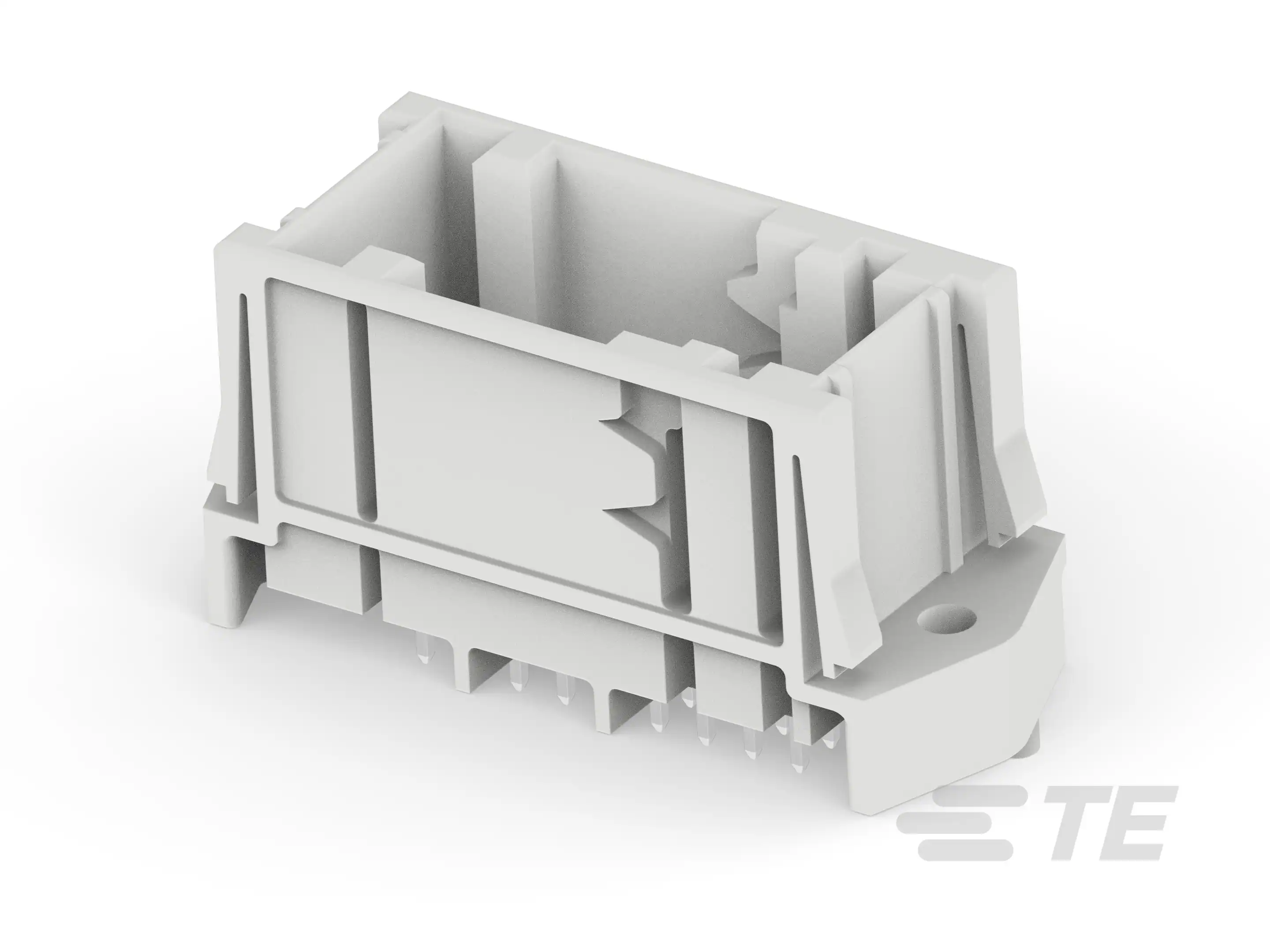

MQS STIFTWANNE 18P
| Part | Termination | Connector Type | Number of Positions | Fastening Type | Insulation Material | Contact Material | Pitch - Mating | Pitch - Mating | Mounting Type | Style | Contact Type | Insulation Color | Contact Length - Post [x] | Contact Length - Post | Number of Rows [custom] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Height [z] | Insulation Height [z] | Shrouding | Contact Length - Mating | Contact Length - Mating | Contact Shape | Material Flammability Rating | Features | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Solder | Header | 18 | Push-Pull | Polyethylene Terephthalate (PET) Glass Filled | Copper Alloy | 0.1 " | 2.54 mm | Through Hole | Board to Cable/Wire | Male Pin | Natural | 0.134 " | 3.4 mm | 2 | 0.1 in | 2.54 mm | 120 °C | -40 C | 0.799 in | 20.3 mm | Shrouded - 4 Wall | 6.7 mm | 0.264 in | Square | UL94 V-0 | Mounting Flange | All |
