A1120 Series
Manufacturer: Allegro MicroSystems
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
BOARD MOUNT HALL EFFECT / MAGNETIC SENSORS CHOPPER-STABILIZED PRECISION HALL SWITCH
| Part | Output Type | Operating Temperature (Min) | Operating Temperature (Max) | Package Name | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Grade | Sensing Range (Trip) | Sensing Range (Release) | Mounting Type | Current - Supply (Max) | Package / Case | Polarization | Function | Test Condition (Min) | Test Condition (Max) | Technology | Qualification | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

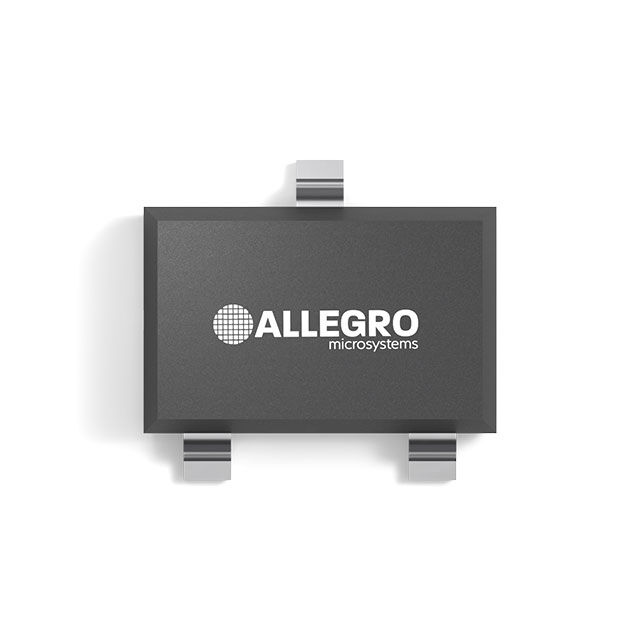

 Allegro MicroSystems | Open Drain | -40 °C | 150 °C | SOT-23W | 24 VAC | 3 V | Automotive | 5 mT | 0.5 mT | Surface Mount | 4 mA | SOT-23W | South Pole | Unipolar Switch | -40 °C | 150 °C | Hall Effect | AEC-Q100 | 25 mA |
Allegro MicroSystems | Open Drain | -40 °C | 150 °C | SOT-23W | 24 VAC | 3 V | Automotive | 5 mT | 0.5 mT | Surface Mount | 4 mA | SOT-23W | South Pole | Unipolar Switch | -40 °C | 150 °C | Hall Effect | AEC-Q100 | 25 mA |

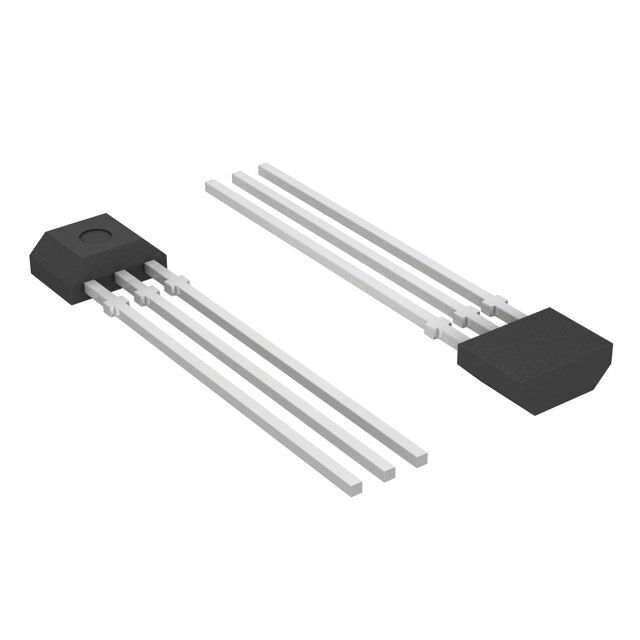

 Allegro MicroSystems | Open Drain | -40 °C | 150 °C | 3-SIP | 24 VAC | 3 V | Automotive | 5 mT | 0.5 mT | Through Hole | 4 mA | 3-SSIP | South Pole | Unipolar Switch | -40 °C | 150 °C | Hall Effect | AEC-Q100 | 25 mA |
