E1225E48B Series
Manufacturer: Mechatronics Fan Group
Beta
⌘K
FAN AXIAL 120X25MM 48VDC WIRE
| Part | Material - Blade | Current Rating (Amps) | Size / Dimension [z] | Size / Dimension [x] | Noise | Termination | Air Flow | Air Flow | Static Pressure | Static Pressure | Weight | Weight | Fan Type | Width [y] | Voltage - Rated | RPM | Features | Bearing Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

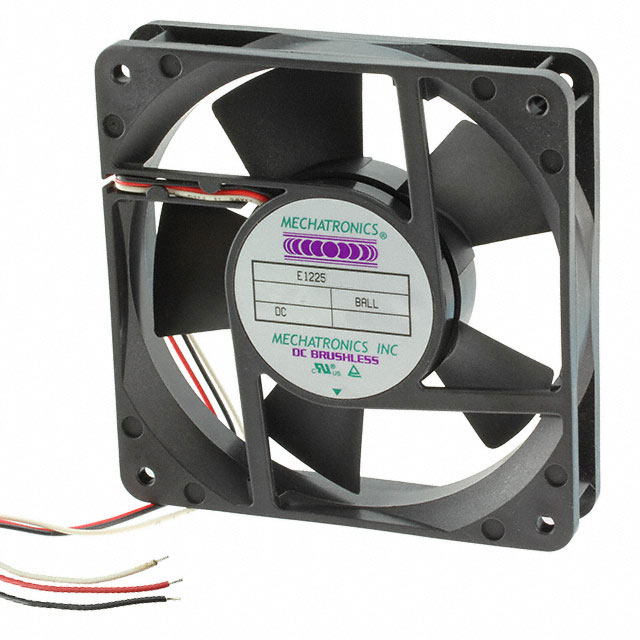

 Mechatronics Fan Group | Polybutylene Terephthalate (PBT) | 0.17 A | 120 mm | 120 mm | 44 dB(A) | 4 Wire Leads | 93 CFM | 2.6 mł/min | 0.28 in H2O | 69.7 Pa | 196.86 g | 0.434 lb | Tubeaxial | 25 mm | 48 VDC | 3000 RPM | Alarm Sensor Speed Sensor (Tach) Thermal Overload Protector (TOP) | Ball | CE cUL TUV UL |

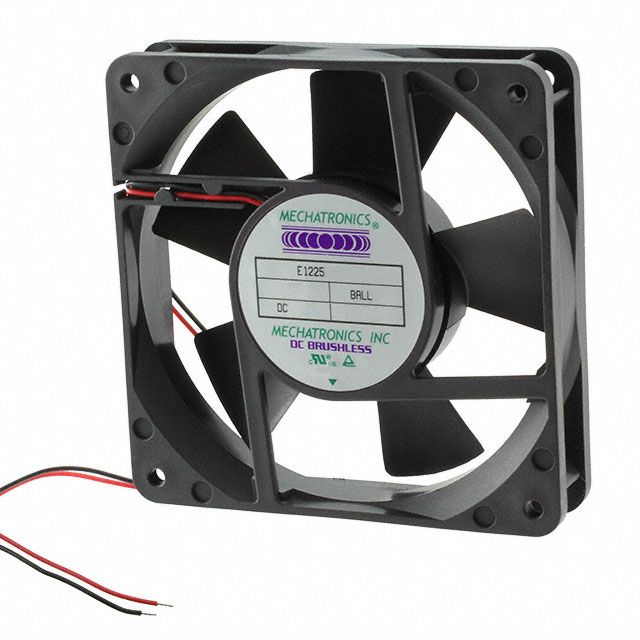

 Mechatronics Fan Group | Polybutylene Terephthalate (PBT) | 0.17 A | 120 mm | 120 mm | 44 dB(A) | 2 Wire Leads | 93 CFM | 2.6 mł/min | 0.28 in H2O | 69.7 Pa | 196.86 g | 0.434 lb | Tubeaxial | 25 mm | 48 VDC | 3000 RPM | Thermal Overload Protector (TOP) | Ball | CE cUL TUV UL |
