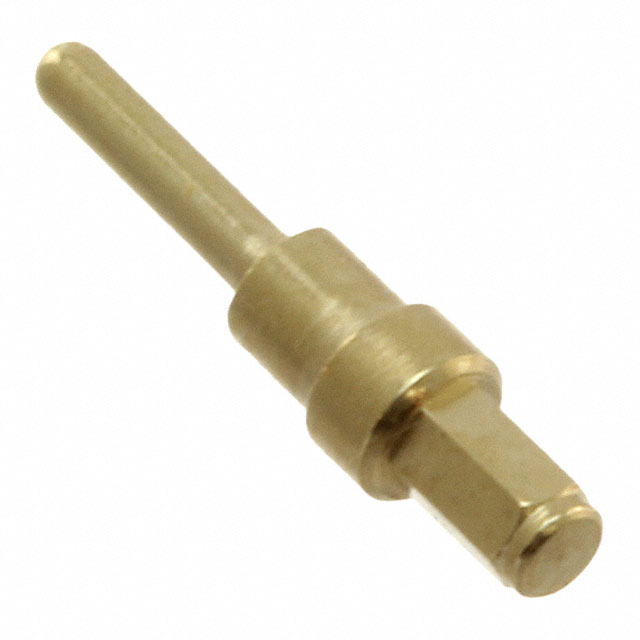

6025-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PIN RCPT
| Part | Contact Material | Contact Finish | Termination | Terminal Type | Contact Finish Thickness | Contact Finish Thickness | Flange Diameter [diameter] | Flange Diameter [diameter] | Mounting Type | Terminal Style | Insulation | Length - Overall [x] | Length - Overall [x] | Pin Size - Below Flange | Pin Size - Below Flange | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Above Flange [x] | Length - Above Flange [x] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Length - Below Flange [x] | Length - Below Flange [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Brass Alloy | Tin | Press-Fit | Single Post | 200 Áin | 5.08 Ám | 0.093 in | 2.36 mm | Through Hole | Flanged Pin Retention | Non-Insulated | 10.64 mm | 0.419 in | 1.7 mm | 0.067 in | 1.73 mm | 0.068 " | 4.78 mm | 0.188 in | 0.04 in | 1.02 mm | 2.54 mm | 0.1 " |
 Mill-Max Manufacturing Corp. | Brass Alloy | Gold | Press-Fit | Single Post | 10 Áin | 0.25 Ám | 0.093 in | 2.36 mm | Through Hole | Flanged Pin Retention | Non-Insulated | 10.64 mm | 0.419 in | 1.7 mm | 0.067 in | 1.73 mm | 0.068 " | 4.78 mm | 0.188 in | 0.04 in | 1.02 mm | 2.54 mm | 0.1 " |
