65402 Series

Catalog

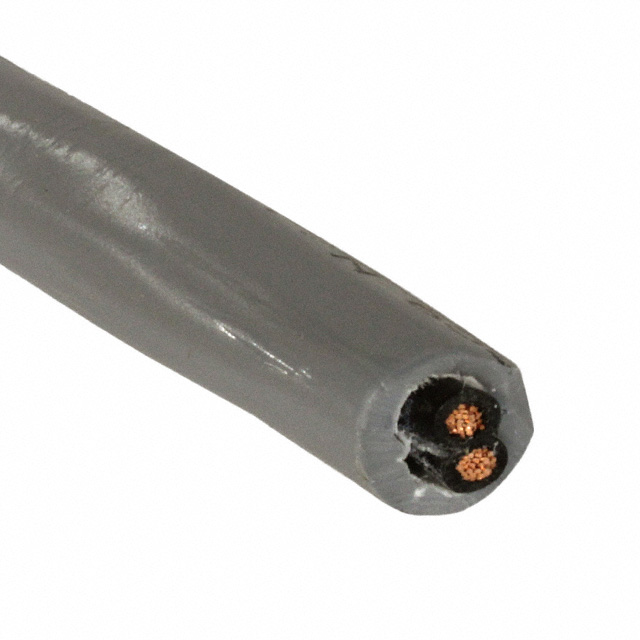

CABLE 2COND 14AWG SLATE 500'

Part	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Cable Type	Wire Gauge	Ratings	Features	Jacket (Insulation) Material	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Conductor Insulation	Length	Length
ALPHA WIRE 65402 SL002	600 V	41	30 AWG	2	Multi-Conductor	13.5 AWG	ISO 10993 UL Style 2587	Biological Compatibility	Poly-Vinyl Chloride (PVC)	Copper Bare	1.118 mm	0.044 in	Slate	0.33 in	8.38 mm	500 '	152.4 m	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 65402 SL005	600 V	41	30 AWG	2	Multi-Conductor	13.5 AWG	ISO 10993 UL Style 2587	Biological Compatibility	Poly-Vinyl Chloride (PVC)	Copper Bare	1.118 mm	0.044 in	Slate	0.33 in	8.38 mm	100 ft	30.5 m	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 65402 SL199	600 V	41	30 AWG	2	Multi-Conductor	13.5 AWG	ISO 10993 UL Style 2587	Biological Compatibility	Poly-Vinyl Chloride (PVC)	Copper Bare	1.118 mm	0.044 in	Slate	0.33 in	8.38 mm	100 ft	30.5 m	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 65402 SL001	600 V	41	30 AWG	2	Multi-Conductor	13.5 AWG	ISO 10993 UL Style 2587	Biological Compatibility	Poly-Vinyl Chloride (PVC)	Copper Bare	1.118 mm	0.044 in	Slate	0.33 in	8.38 mm			Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m
