500SSP3 Series

Manufacturer: E-Switch

Catalog

SWITCH SLIDE SPDT 5A 120V

Part	Mechanical Life	Electrical Life	Actuator Material	Switch Travel	Termination Style	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Current Rating (Amps)	Contact Finish	Voltage Rating - AC	Switch Function	Actuator Length [x]	Circuit	Mounting Type	Contact Timing	Features	Voltage Rating - DC
E-Switch 500SSP3S2M2QEA	30000 Steps	30000 Cycles	Polyamide (PA) Nylon	2.16 mm	PC Pin	Copper Alloy	85 °C	-30 ░C	Standard	5 A	Silver	120 V	On-Off-On	7.24 mm	SPDT	Through Hole	Not Specified	Epoxy Sealed Terminals	28 V
E-Switch 500SSP3S3M1QEB	30000 Steps	30000 Cycles	Polyamide (PA) Nylon	2.16 mm	Solder Lug	Copper Alloy	85 °C	-30 ░C	Standard	5 A	Silver	120 V	On-Off-On	9.4 mm	SPDT	Panel Mount	Not Specified	Epoxy Sealed Terminals	28 V
E-Switch 500SSP3S4M6QEB	30000 Steps	30000 Cycles	Polyamide (PA) Nylon	2.16 mm	PC Pin	Copper Alloy	85 °C	-30 ░C	Standard	5 A	Silver	120 V	On-Off-On	3.2 mm	SPDT	Panel Mount Right Angle	Not Specified	Epoxy Sealed Terminals	28 V
E-Switch 500SSP3S2M1QEB	30000 Steps	30000 Cycles	Polyamide (PA) Nylon	2.16 mm	Solder Lug	Copper Alloy	85 °C	-30 ░C	Standard	5 A	Silver	120 V	On-Off-On	7.24 mm	SPDT	Panel Mount	Not Specified	Epoxy Sealed Terminals	28 V
E-Switch 500SSP3S2M1QEA	30000 Steps	30000 Cycles	Polyamide (PA) Nylon	2.16 mm	Solder Lug	Copper Alloy	85 °C	-30 ░C	Standard	5 A	Silver	120 V	On-Off-On	7.24 mm	SPDT	Panel Mount	Not Specified	Epoxy Sealed Terminals	28 V
E-Switch 500SSP3S3M1QEA	30000 Steps	30000 Cycles	Polyamide (PA) Nylon	2.16 mm	Solder Lug	Copper Alloy	85 °C	-30 ░C	Standard	5 A	Silver	120 V	On-Off-On	9.4 mm	SPDT	Panel Mount	Not Specified	Epoxy Sealed Terminals	28 V
E-Switch 500SSP3S1M7QEA	30000 Steps	30000 Cycles	Polyamide (PA) Nylon	2.16 mm	PC Pin	Copper Alloy	85 °C	-30 ░C	Standard	5 A	Silver	120 V	On-Off-On	4.72 mm	SPDT	Right Angle Through Hole Vertical	Not Specified	Epoxy Sealed Terminals	28 V
E-Switch 500SSP3S1M7REA	30000 Steps	30000 Cycles	Polyamide (PA) Nylon	2.16 mm	PC Pin	Copper Alloy	85 °C	-30 ░C	Standard	0.4 VA	Gold	20 V	On-Off-On	4.72 mm	SPDT	Right Angle Through Hole Vertical	Not Specified	Epoxy Sealed Terminals	20 V

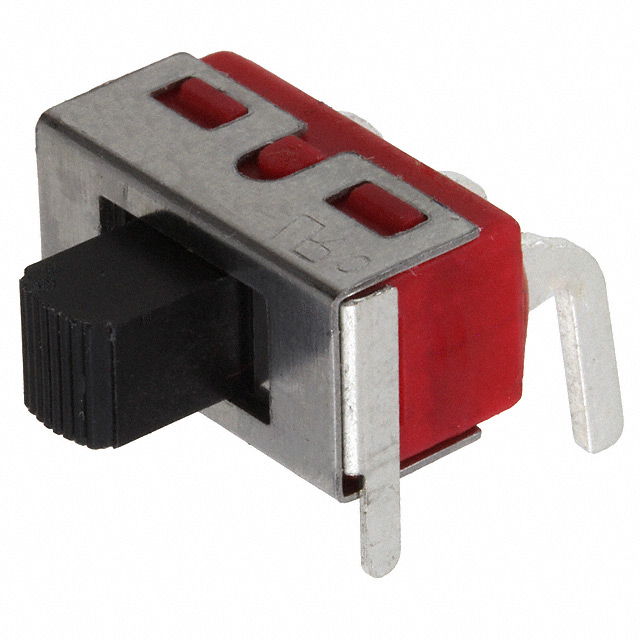

E-Switch 500SSP3S1M6QEA	30000 Steps	30000 Cycles	Polyamide (PA) Nylon	2.16 mm	PC Pin	Copper Alloy	85 °C	-30 ░C	Standard	5 A	Silver	120 V	On-Off-On	4.72 mm	SPDT	Right Angle Through Hole	Not Specified	Epoxy Sealed Terminals	28 V

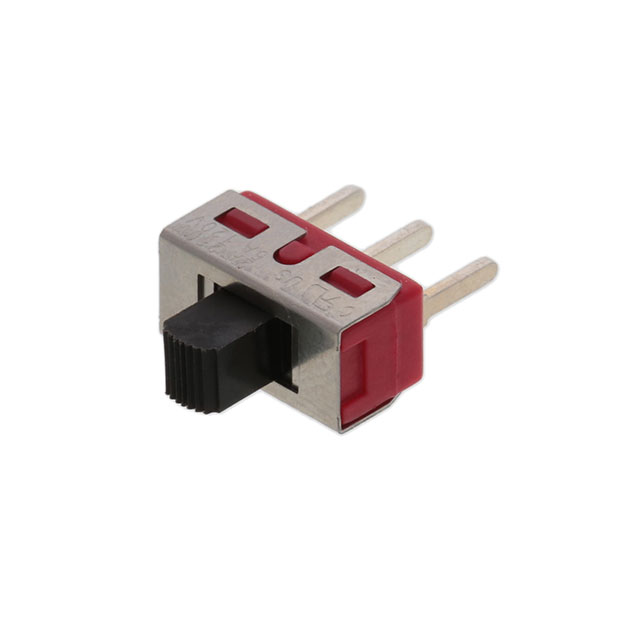

E-Switch 500SSP3S1M2QEA	30000 Steps	30000 Cycles	Polyamide (PA) Nylon	2.16 mm	PC Pin	Copper Alloy	85 °C	-30 ░C	Standard	5 A	Silver	120 V	On-Off-On	5.08 mm	SPDT	Through Hole	Not Specified	Epoxy Sealed Terminals	28 V
