EDZ1110 Series

Catalog

TERM BLOCK PLUG 16POS 5.08MM

Part	Wire Strip Length	Housing Material	Material Flammability Rating	Wire Gauge or Range - mm˛	Contact Material	Torque - Screw	Torque - Screw	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Mounting Type	Wire Gauge or Range - mm²	Termination Style	Positions Per Level	Pitch	Pitch	Color	Voltage - UL	Number of Positions	Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]

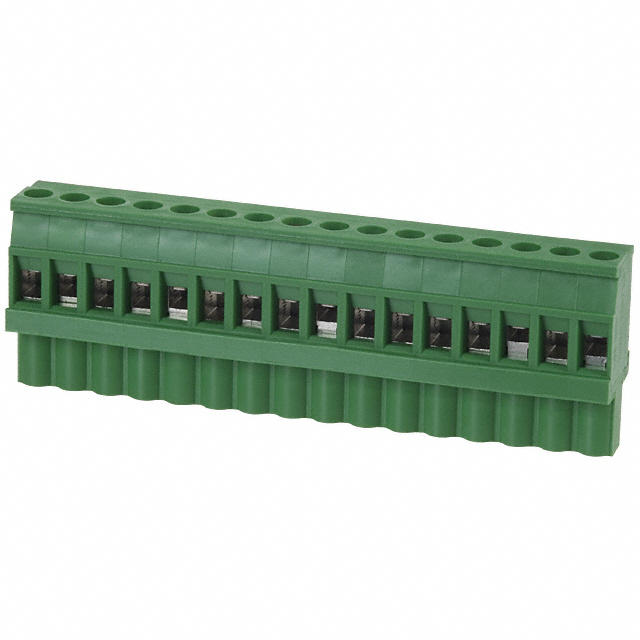

On Shore Technology Inc. EDZ1110/16	7 mm	Polyamide (PA) Nylon	UL94 V-0	2.5 mm˛	Copper Tin Alloy	4.4 Lb-In	0.5 Nm	-30 ░C	105 ░C	1	Free Hanging (In-Line)	2.5 mm²	Screw	16	5.08 mm	0.2 in	Green	300 V	16	Plug Female Sockets	22 AWG	10 AWG
On Shore Technology Inc. EDZ1110/6	7 mm	Polyamide (PA) Nylon	UL94 V-0	2.5 mm˛	Copper Tin Alloy	4.4 Lb-In	0.5 Nm	-30 ░C	105 ░C	1	Free Hanging (In-Line)	2.5 mm²	Screw	6	5.08 mm	0.2 in	Green	300 V	6	Plug Female Sockets	22 AWG	10 AWG
On Shore Technology Inc. EDZ1110/8	7 mm	Polyamide (PA) Nylon	UL94 V-0		Copper Tin Alloy	4.4 Lb-In	0.5 Nm	-30 ░C	105 ░C	1	Free Hanging (In-Line)	2.5 mm²	Screw	8	5.08 mm	0.2 in	Green	300 V	8	Plug Female Sockets	22 AWG	10 AWG
On Shore Technology Inc. EDZ1110/9	7 mm	Polyamide (PA) Nylon	UL94 V-0	2.5 mm˛	Copper Tin Alloy	4.4 Lb-In	0.5 Nm	-30 ░C	105 ░C	1	Free Hanging (In-Line)	2.5 mm²	Screw	9	5.08 mm	0.2 in	Green	300 V	9	Plug Female Sockets	22 AWG	10 AWG

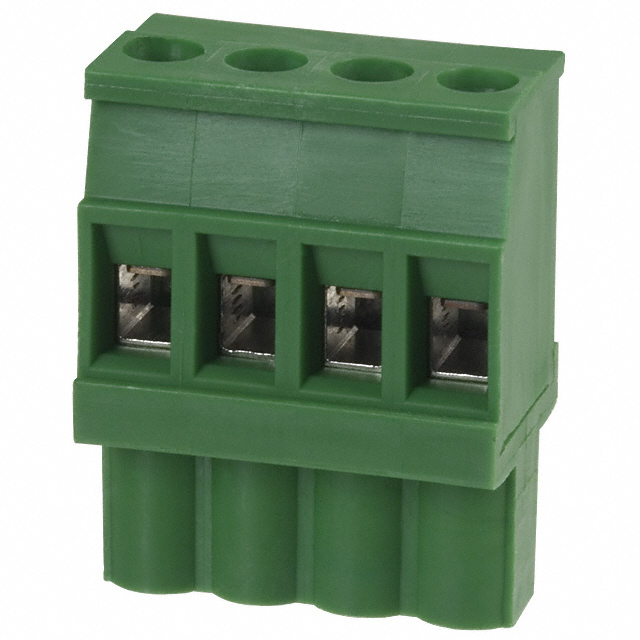

On Shore Technology Inc. EDZ1110/4	7 mm	Polyamide (PA) Nylon	UL94 V-0	2.5 mm˛	Copper Tin Alloy	4.4 Lb-In	0.5 Nm	-30 ░C	105 ░C	1	Free Hanging (In-Line)	2.5 mm²	Screw	4	5.08 mm	0.2 in	Green	300 V	4	Plug Female Sockets	22 AWG	10 AWG
On Shore Technology Inc. EDZ1110/3	7 mm	Polyamide (PA) Nylon	UL94 V-0	2.5 mm˛	Copper Tin Alloy	4.4 Lb-In	0.5 Nm	-30 ░C	105 ░C	1	Free Hanging (In-Line)	2.5 mm²	Screw	3	5.08 mm	0.2 in	Green	300 V		Plug Female Sockets	22 AWG	10 AWG
On Shore Technology Inc. EDZ1110/14	7 mm	Polyamide (PA) Nylon	UL94 V-0	2.5 mm˛	Copper Tin Alloy	4.4 Lb-In	0.5 Nm	-30 ░C	105 ░C	1	Free Hanging (In-Line)	2.5 mm²	Screw	14	5.08 mm	0.2 in	Green	300 V	14	Plug Female Sockets	22 AWG	10 AWG

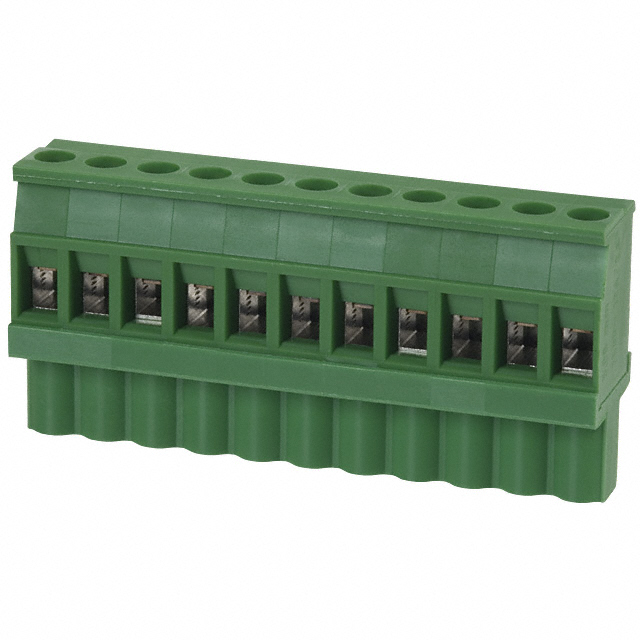

On Shore Technology Inc. EDZ1110/11	7 mm	Polyamide (PA) Nylon	UL94 V-0	2.5 mm˛	Copper Tin Alloy	4.4 Lb-In	0.5 Nm	-30 ░C	105 ░C	1	Free Hanging (In-Line)	2.5 mm²	Screw	11	5.08 mm	0.2 in	Green	300 V	11	Plug Female Sockets	22 AWG	10 AWG
On Shore Technology Inc. EDZ1110/10	7 mm	Polyamide (PA) Nylon	UL94 V-0	2.5 mm˛	Copper Tin Alloy	4.4 Lb-In	0.5 Nm	-30 ░C	105 ░C	1	Free Hanging (In-Line)	2.5 mm²	Screw	10	5.08 mm	0.2 in	Green	300 V	10	Plug Female Sockets	22 AWG	10 AWG
