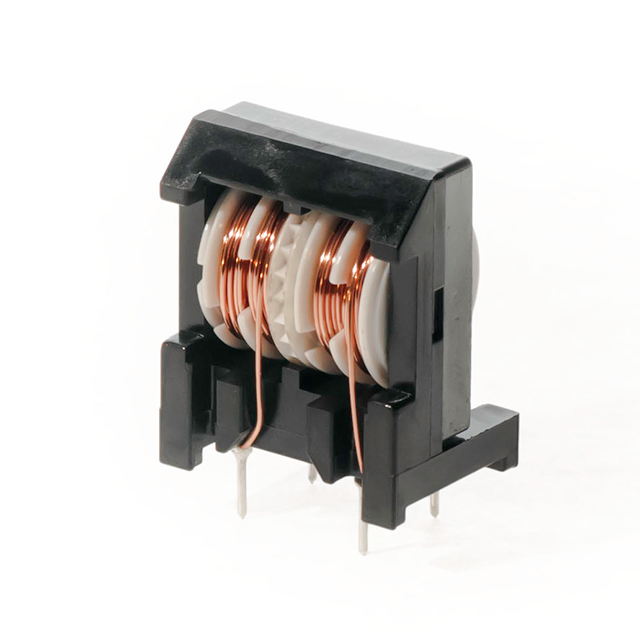

SSRH7H Series

Manufacturer: KEMET

Catalog

COMMON MODE CHOKES DUAL 8100UH 10KHZ 1.1A 0.27OHM DCR THRU-HOLE TRAY

Part	DC Resistance (DCR) (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Inductance @ Frequency	Height (Max) [z]	Height (Max) [z]	Voltage Rating - AC	Current Rating (Max) [Max]	Package / Case	Number of Lines	DC Resistance (DCR) (Max)
KEMET SSRH7H-M11081	270 mOhm	0.571 "	18 mm	14.5 mm	0.709 in	Through Hole	120 °C	-25 °C	8.1 mH	12 mm	0.472 in	250 V	1.1 A	Vertical 4 PC Pin	2
KEMET SSRH7H-M04596	2.02 Ohm	0.571 "	18 mm	14.5 mm	0.709 in	Through Hole	120 °C	-25 °C	10 kHz 59.6 mH	12 mm	0.472 in	250 V	400 mA	Vertical 4 PC Pin	2
KEMET SSRH7H-M20016		0.571 "	18 mm	14.5 mm	0.709 in	Through Hole	120 °C	-25 °C	1.6 mH	12 mm	0.472 in	250 V	2 A	Vertical 4 PC Pin	2	90 mOhm
KEMET SSRH7H-M07196	710 mOhm	0.571 "	18 mm	14.5 mm	0.709 in	Through Hole	120 °C	-25 °C	19.6 mH	12 mm	0.472 in	250 V	700 mA	Vertical 4 PC Pin	2
KEMET SSRH7H-M05408	1.36 Ohm	0.571 "	18 mm	14.5 mm	0.709 in	Through Hole	120 °C	-25 °C	40.8 mH	12 mm	0.472 in	250 V	500 mA	Vertical 4 PC Pin	2
KEMET SSRH7H-M06237	780 mOhm	0.571 "	18 mm	14.5 mm	0.709 in	Through Hole	120 °C	-25 °C	10 kHz 23.7 mH	12 mm	0.472 in	250 V	600 mA	Vertical 4 PC Pin	2
