CDSOT23 Series
Manufacturer: Bourns Inc.
Beta
⌘K
ESD SUPPRESSOR DIODE ARRAY UNI-DIR 5V 6-PIN SOT-23 T/R
| Part | Current - Peak Pulse (10/1000çs) | Operating Temperature [Max] | Operating Temperature [Min] | Power Line Protection | Voltage - Breakdown (Min) [Min] | Applications | Voltage - Clamping (Max) @ Ipp [Max] | Unidirectional Channels [custom] | Type | Power - Peak Pulse | Supplier Device Package | Mounting Type | Current - Peak Pulse (10/1000µs) | Package / Case | Voltage - Reverse Standoff (Typ) | Capacitance @ Frequency | Bidirectional Channels [custom] | Current - Peak Pulse (10/1000çs) | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 30 A | 150 °C 150 °C | -55 ░C -55 °C | 6 V | Ethernet | 15 V | 4 | Steering (Rail to Rail) | 500 W | SOT-23-6 | Surface Mount | 30 A | SOT-23-6 | 5 V | ||||||

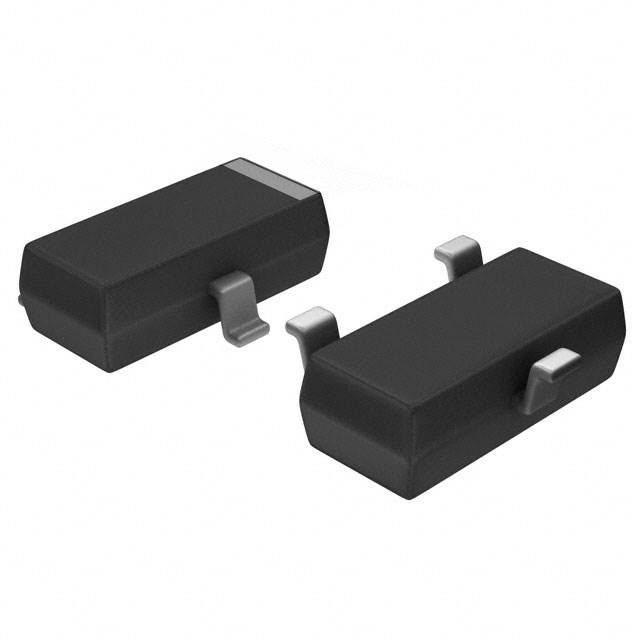

 Bourns Inc. | 150 °C | -55 °C | 6 V | General Purpose | 13.5 V | Zener | 500 W | SOT-23-3 | Surface Mount | 42 A | SC-59 SOT-23-3 TO-236-3 | 5 V | 1 MHz 210 pF | 1 | ||||||
Bourns Inc. | 9 A | 150 °C 150 °C | -55 ░C -55 °C | 40 V | General Purpose | 76.8 V | Zener | 500 W | SOT-23-3 | Surface Mount | 9 A | SC-59 SOT-23-3 TO-236-3 | 36 V | 1 MHz 60 pF | 1 | 8 çs 20 çs | ||||
Bourns Inc. | 150 °C | -55 °C | 16.7 V | General Purpose | 1 | Zener | 500 W | SOT-23-3 | Surface Mount | 17 A | SC-59 SOT-23-3 TO-236-3 | 15 V | 100 pF | |||||||
 Bourns Inc. | 150 °C | -55 °C | 26.7 V | General Purpose | 49 V | Zener | 500 W | SOT-23-3 | Surface Mount | 12 A | SC-59 SOT-23-3 TO-236-3 | 24 V | 1 MHz 5 pF | 1 | ||||||
Bourns Inc. | 150 °C | -55 °C | 13.3 V | General Purpose | 25.9 V | 1 | Zener | 500 W | SOT-23-3 | Surface Mount | 21 A | SC-59 SOT-23-3 TO-236-3 | 12 V | 1 MHz 150 pF | ||||||
Bourns Inc. | 150 °C | -55 °C | 8.5 V | General Purpose | 16.9 V | 1 | Zener | 500 W | SOT-23-3 | Surface Mount | 34 A | SC-59 SOT-23-3 TO-236-3 | 8 V | 1 MHz 250 pF | ||||||
 Bourns Inc. | 150 °C | -55 °C | 8.5 V | Telecom | 16.9 V | Zener | SOT-23-3 | Surface Mount | 34 A | SC-59 SOT-23-3 TO-236-3 | 8 V | 1 MHz 150 pF | 1 | AEC-Q101 | Automotive | |||||
Bourns Inc. | 43 A | 150 °C 150 °C | -55 ░C -55 °C | 4 V | General Purpose | 10.9 V | Zener | 500 W | SOT-23-3 | Surface Mount | 43 A | SC-59 SOT-23-3 TO-236-3 | 3.3 V | 1 | ||||||
Bourns Inc. | 150 °C | -55 °C | 40 V | General Purpose | 76.8 V | Zener | 500 W | SOT-23-3 | Surface Mount | 9 A | SC-59 SOT-23-3 TO-236-3 | 36 V | 1 MHz 5 pF |
