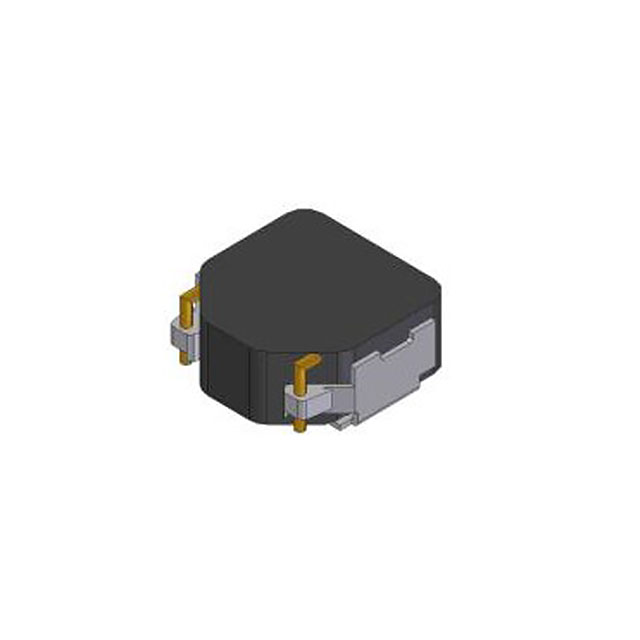

DFEH10040D Series
Manufacturer: Murata Electronics
Beta
⌘K
FIXED IND 3.3UH 10A 12 MOHM SMD
| Part | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Tolerance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Current - Saturation (Isat) | Material - Core | Package / Case | Inductance Frequency - Test | Height - Seated (Max) | Height - Seated (Max) [Max] | Inductance | Current Rating (Amps) | Ratings | DC Resistance (DCR) [Max] | Shielding | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Electronics | Surface Mount | -40 C | 155 C | 20 % | 10.9 mm | 10 mm | 0.429 " | 0.394 in | 13 A | Iron Powder | Nonstandard | 100 MHz | 4 mm | 0.157 in | 3.3 µH | 10 A | AEC-Q200 | 12 mOhm | Shielded | |
Murata Electronics | Surface Mount | -40 C | 155 C | 20 % | 10.9 mm | 10 mm | 0.429 " | 0.394 in | 9.2 A | Iron Powder | Nonstandard | 100 MHz | 4 mm | 0.157 in | 5.6 µH | 8 A | AEC-Q200 | 18 mOhm | Shielded | |
 Murata Electronics | ||||||||||||||||||||
Murata Electronics | Surface Mount | -40 C | 155 C | 20 % | 10.9 mm | 10 mm | 0.429 " | 0.394 in | 5.3 A | Iron Powder | Nonstandard | 100 MHz | 4 mm | 0.157 in | 22 µH | 3.8 A | AEC-Q200 | Shielded | 70 mOhm | |
Murata Electronics | Surface Mount | -40 C | 155 C | 20 % | 10.9 mm | 10 mm | 0.429 " | 0.394 in | 14 A | Iron Powder | Nonstandard | 100 MHz | 4 mm | 0.157 in | 2.2 µH | 12 Amps | AEC-Q200 | Shielded | 7.5 mOhm | |
Murata Electronics | Surface Mount | -40 C | 155 C | 20 % | 10.9 mm | 10 mm | 0.429 " | 0.394 in | 24 A | Iron Powder | Nonstandard | 100 MHz | 4 mm | 0.157 in | 1 µH | 17 A | AEC-Q200 | Shielded | 3.5 mOhm | |
Murata Electronics | Surface Mount | -40 C | 155 C | 20 % | 10.9 mm | 10 mm | 0.429 " | 0.394 in | 19 A | Iron Powder | Nonstandard | 100 MHz | 4 mm | 0.157 in | 1.5 µH | 14 A | AEC-Q200 | 5 mOhm | Shielded |
