MPM3695 Series
Manufacturer: MONOLITHIC POWER SYSTEMS (MPS)
Beta
⌘K
DC/DC SWITCHING REGULATOR, ADJUSTABLE, BUCK (STEP DOWN), 1 OUTPUT, 500 MV TO 5.5 V, 20 A, 600 KHZ, 5… MORE
| Part | Mounting Type | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Number of Outputs | Applications | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Features | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Supplier Device Package | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Type | Package / Case | Current - Output | Voltage - Input [Min] | Voltage - Input [Max] | Utilized IC / Part | Board Type | Frequency - Switching | Outputs and Type | Outputs and Type | Voltage - Output | Main Purpose | Supplied Contents | Regulator Topology | Voltage - Input |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

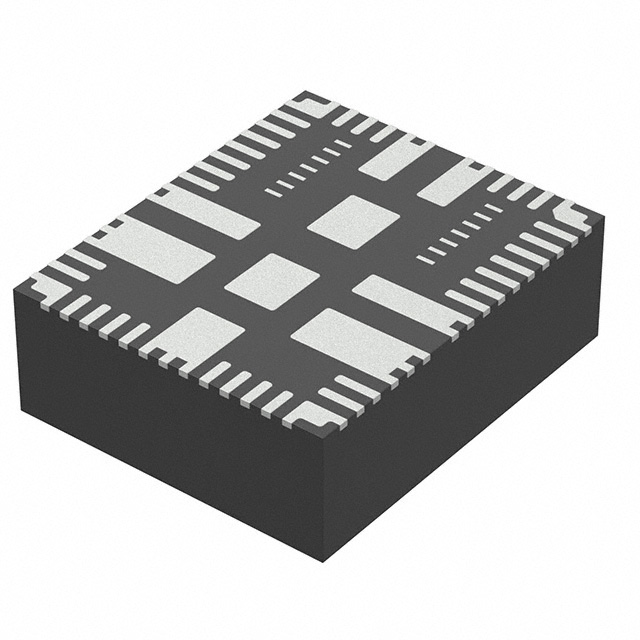

 MONOLITHIC POWER SYSTEMS (MPS) | Surface Mount | 5.5 V | 0.5 V | 1 | ITE (Commercial) | 16 V | 125 °C | -40 °C | OCP OTP OVP Remote On/Off SCP UVLO | 3 V | 20 A | 59-QFN (10x12) | 4.1 mm | 0.39 " | 0.47 in | 12 mm | 10 mm | 0.16 in | Non-Isolated PoL Module | 59-PowerBQFN Module | |||||||||||||
MONOLITHIC POWER SYSTEMS (MPS) | 10 A | 4 V | 16 V | MPM3695-10 | Fully Populated | 800 kHz | Non-Isolated | 1 | 1.2 V | DC/DC Step Down | Board(s) | Buck | |||||||||||||||||||||

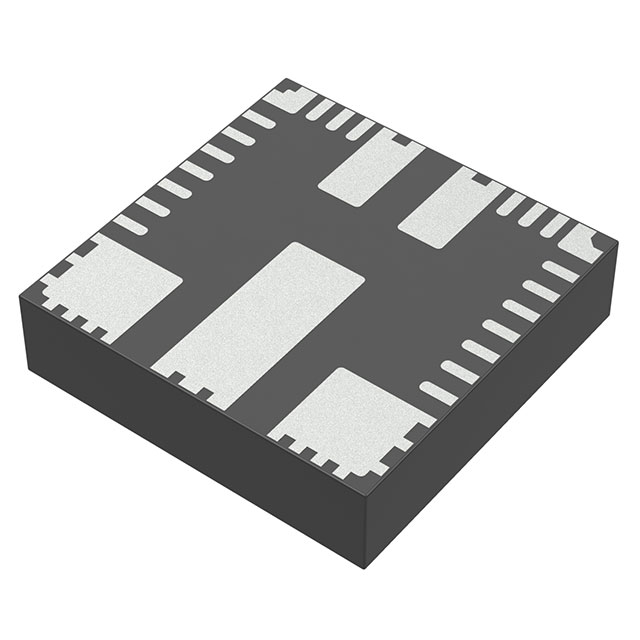

 MONOLITHIC POWER SYSTEMS (MPS) | Surface Mount | 5 V | 0.5 V | 1 | ITE (Commercial) | 16 V | 125 °C | -40 °C | Adjustable Output PMBus™ Remote Sense | 10 A | 45-LGA (8x8) | 0.08 in 2 mm | 0.31 in 8 mm | 0.31 in 8 mm | Non-Isolated PoL Module Digital | 45-PowerFLGA Module | |||||||||||||||||

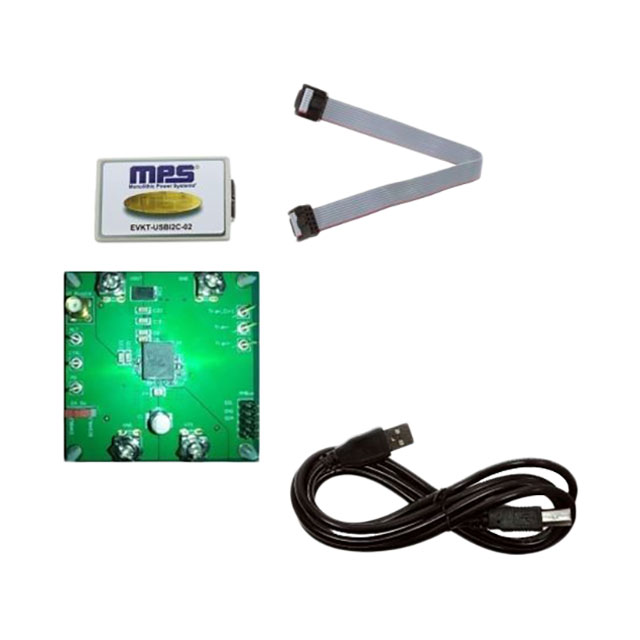

 MONOLITHIC POWER SYSTEMS (MPS) | 20 A | MPM3695-25 | Fully Populated | 600 kHz | Non-Isolated | 1 | 1.8 V | DC/DC Step Down | Accessories Board(s) Cable(s) | Buck | 12 VDC |
