896-064 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 64POS 0.125

...

Part	Termination Rows	Material - Insulation	Contact Finish Thickness	Gender	Contact Material	Color	Number of Rows	Contact Finish	Operating Temperature (Max)	Operating Temperature (Min)	Card Type	Read Out	Number of Positions	Contact Type	Card Thickness (Min)	Card Thickness (Max)	Pitch	Termination	Mounting Type	Flange Feature Diameter	Flange Feature	Features

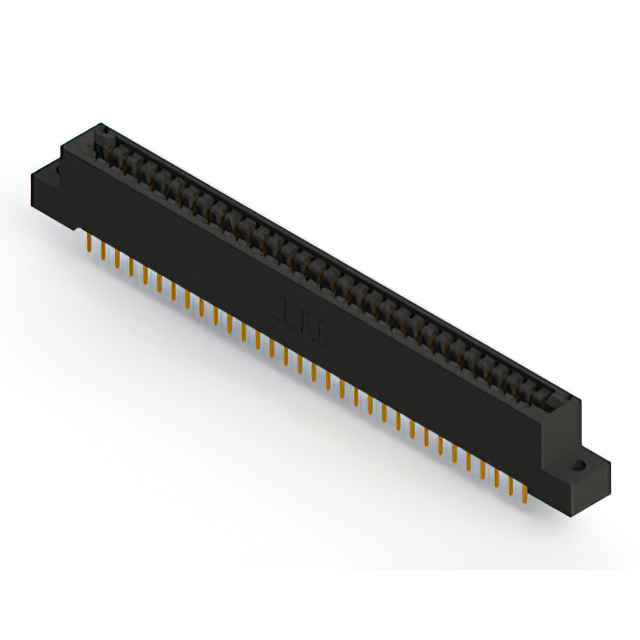

EDAC Inc. 896-064-521-202	2 rows	Polyphenylene Sulfide PPS	10 Ąin	Female	Copper Alloy	Black	2	Gold	125 °C	-40 °C	Dual Edge Non Specified	Dual	32 64	Cantilever	0.054 in	0.07 in	0.125 in	Solder	Through Hole	0.128 in	Flush Mount Top Opening Unthreaded
EDAC Inc. 896-064-540-807	2 rows	Polyphenylene Sulfide PPS	10 Ąin	Female	Copper Alloy	Black	2	Gold	125 °C	-40 °C	Dual Edge Non Specified	Dual	32 64	Cantilever	0.054 in	0.07 in	0.125 in	Wire Wrap	Through Hole		M3 Threaded Insert Top Mount Opening
EDAC Inc. 896-064-522-203	2 rows	Polyphenylene Sulfide PPS	10 Ąin	Female	Copper Alloy	Black	2	Gold	125 °C	-40 °C	Dual Edge Non Specified	Dual	32 64	Cantilever	0.054 in	0.07 in	0.125 in	Solder	Through Hole	0.116 in	Floating Bobbin Flush Mount
EDAC Inc. 896-064-555-201	2 rows	Polyphenylene Sulfide PPS	10 Ąin	Female	Copper Alloy	Black	2	Gold	125 °C	-40 °C	Dual Edge Non Specified	Dual	32 64	Cantilever	0.054 in	0.07 in	0.125 in	Solder Eyelet(s)	Board Edge Straddle Mount			Card Extender
EDAC Inc. 896-064-559-812	2 rows	Polyphenylene Sulfide PPS	10 Ąin	Female	Copper Alloy	Black	2	Gold	125 °C	-40 °C	Dual Edge Non Specified	Dual	32 64	Cantilever	0.054 in	0.07 in	0.125 in	Solder	Right Angle Through Hole	0.128 in	Side Mount Opening Unthreaded
EDAC Inc. 896-064-522-202	2 rows	Polyphenylene Sulfide PPS	10 Ąin	Female	Copper Alloy	Black	2	Gold	125 °C	-40 °C	Dual Edge Non Specified	Dual	32 64	Cantilever	0.054 in	0.07 in	0.125 in	Solder	Through Hole	0.128 in	Flush Mount Top Opening Unthreaded
EDAC Inc. 896-064-541-202	2 rows	Polyphenylene Sulfide PPS	10 Ąin	Female	Copper Alloy	Black	2	Gold	125 °C	-40 °C	Dual Edge Non Specified	Dual	32 64	Cantilever	0.054 in	0.07 in	0.125 in	Wire Wrap	Through Hole	0.128 in	Flush Mount Top Opening Unthreaded
EDAC Inc. 896-064-520-212	2 rows	Polyphenylene Sulfide PPS	10 Ąin	Female	Copper Alloy	Black	2	Gold	125 °C	-40 °C	Dual Edge Non Specified	Dual	32 64	Cantilever	0.054 in	0.07 in	0.125 in	Solder	Through Hole	0.128 in	Flush Mount Side Opening Unthreaded
EDAC Inc. 896-064-559-212	2 rows	Polyphenylene Sulfide PPS	10 Ąin	Female	Copper Alloy	Black	2	Gold	125 °C	-40 °C	Dual Edge Non Specified	Dual	32 64	Cantilever	0.054 in	0.07 in	0.125 in	Solder	Right Angle Through Hole	0.128 in	Flush Mount Side Opening Unthreaded
EDAC Inc. 896-064-520-201	2 rows	Polyphenylene Sulfide PPS	10 Ąin	Female	Copper Alloy	Black	2	Gold	125 °C	-40 °C	Dual Edge Non Specified	Dual	32 64	Cantilever	0.054 in	0.07 in	0.125 in	Solder	Through Hole
