Q54SH Series

Catalog

DC DC CONVERTER 11.8V 1001W

Part	Voltage - Isolation	Applications	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Number of Outputs	Features	Type	Voltage - Output 1	Mounting Type	Voltage - Input (Min) [Min]	Supplier Device Package	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Efficiency	Voltage - Input (Max) [Max]	Package / Case	Size / Dimension [z]	Size / Dimension [y]
Delta Electronics Q54SH12084NNDH	707 V	ITE (Commercial)	1001 W	36.8 mm	2.3 in	1.45 in	15 mm	58.4 mm	0.59 in	1	PMBus™ Remote On/Off	Isolated Module	11.8 V	Through Hole	40 V	Quarter Brick	Active Low Enable	85 °C	-20 ░C	84.8 A	97.3 %	60 V	Quarter Brick

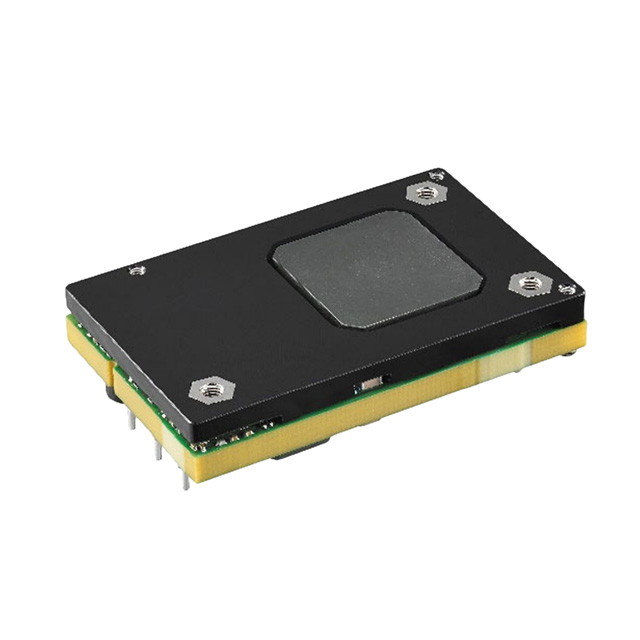

Delta Electronics Q54SH12060NRAH	707 V	ITE (Commercial)	708 W		2.3 in	1.45 in		58.4 mm	0.64 in	1	PMBus™ Remote On/Off	Isolated Module	11.8 V	Through Hole	40 V	Quarter Brick	Active Low Enable	85 °C	-20 ░C	60 A	97.7 %	60 V	Quarter Brick	16.2 mm	36.8 mm
Delta Electronics Q54SH12050NNDH	707 V	ITE (Commercial)	602 W		2.3 in	1.45 in		58.4 mm	0.61 in	1	PMBus™ Remote On/Off	Isolated Module	11.8 V	Through Hole	40 V	Quarter Brick	Active Low Enable	85 °C	-20 ░C	51 A	97.8 %	60 V	Quarter Brick	15.5 mm	36.8 mm
Delta Electronics Q54SH12068NNDH	707 V	ITE (Commercial)	802 W		2.3 in	1.45 in		58.4 mm	0.57 "	1	PMBus™ Remote On/Off	Isolated Module	11.8 V	Through Hole	40 V	Quarter Brick	Active Low Enable	85 °C	-20 ░C	68 A	97.5 %	60 V	Quarter Brick	14.5 mm	36.8 mm
