317-83 Series

Manufacturer: Preci-Dip

Catalog

CONN SOCKET 32POS 0.07 GOLD PCB

Part	Contact Shape	Contact Material	Insulation Material	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Number of Rows	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Insulation Height	Insulation Height	Contact Finish - Post	Contact Finish - Mating	Material Flammability Rating	Fastening Type	Contact Type	Mounting Type	Number of Positions [custom]	Number of Positions	Contact Length - Post	Contact Length - Post

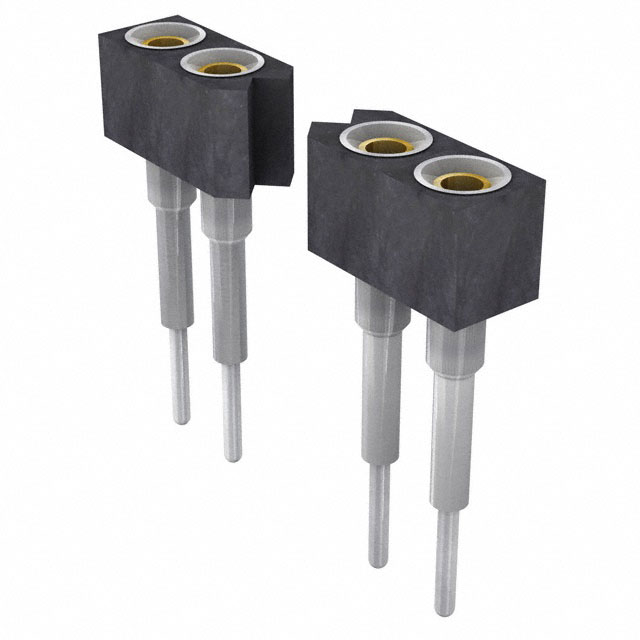

Preci-Dip 317-83-132-41-022101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	29.5 µin	0.75 µm	0.07 in	1.78 mm	All	-55 C	125 °C	Black	1	Socket	0.126 "	3.2 mm	Solder	0.335 "	8.51 mm	Tin	Gold	UL94 V-0	Push-Pull	Female Socket	Through Hole
Preci-Dip 317-83-133-41-022101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	29.5 µin	0.75 µm	0.07 in	1.78 mm	All	-55 C	125 °C	Black	1	Socket	0.126 "	3.2 mm	Solder	0.335 "	8.51 mm	Tin	Gold	UL94 V-0	Push-Pull	Female Socket	Through Hole	33
Preci-Dip 317-83-137-41-022101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	29.5 µin	0.75 µm	0.07 in	1.78 mm	All	-55 C	125 °C	Black	1	Socket	0.126 "	3.2 mm	Solder	0.335 "	8.51 mm	Tin	Gold	UL94 V-0	Push-Pull	Female Socket	Through Hole		37
Preci-Dip 317-83-127-41-022101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	29.5 µin	0.75 µm	0.07 in	1.78 mm	All	-55 C	125 °C	Black	1	Socket	0.126 "	3.2 mm	Solder	0.335 "	8.51 mm	Tin	Gold	UL94 V-0	Push-Pull	Female Socket	Through Hole		27

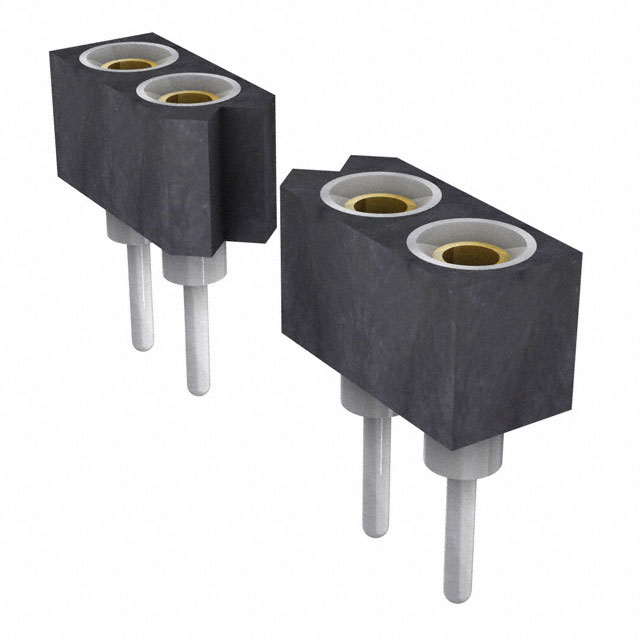

Preci-Dip 317-83-138-41-005101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	29.5 µin	0.75 µm	0.07 in	1.78 mm	All	-55 C	125 °C	Black	1	Socket			Solder	0.165 in	4.2 mm	Tin	Gold	UL94 V-0	Push-Pull	Female Socket	Through Hole		38	0.125 in	3.18 mm
Preci-Dip 317-83-113-01-687101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	29.5 µin	0.75 µm	0.07 in	1.78 mm	All	-55 C	125 °C	Black	1	Socket			Solder	0.165 in	4.2 mm	Tin	Gold	UL94 V-0	Push-Pull	Female Socket	Through Hole		13	0.125 in	3.18 mm
Preci-Dip 317-83-109-41-005101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	29.5 µin	0.75 µm	0.07 in	1.78 mm	All	-55 C	125 °C	Black	1	Socket			Solder	0.165 in	4.2 mm	Tin	Gold	UL94 V-0	Push-Pull	Female Socket	Through Hole		9	0.125 in	3.18 mm

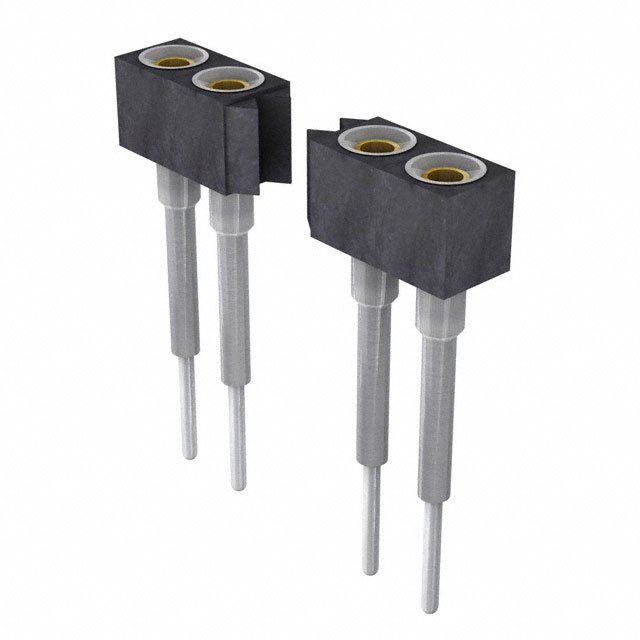

Preci-Dip 317-83-109-41-026101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	29.5 µin	0.75 µm	0.07 in	1.78 mm	All	-55 C	125 °C	Black	1	Socket	0.157 in		Solder	0.394 "	10 mm	Tin	Gold	UL94 V-0	Push-Pull	Female Socket	Through Hole		9		4 mm
Preci-Dip 317-83-117-41-026101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	29.5 µin	0.75 µm	0.07 in	1.78 mm	All	-55 C	125 °C	Black	1	Socket	0.157 in		Solder	0.394 "	10 mm	Tin	Gold	UL94 V-0	Push-Pull	Female Socket	Through Hole				4 mm
Preci-Dip 317-83-135-41-005101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	29.5 µin	0.75 µm	0.07 in	1.78 mm	All	-55 C	125 °C	Black	1	Socket			Solder	0.165 in	4.2 mm	Tin	Gold	UL94 V-0	Push-Pull	Female Socket	Through Hole		35	0.125 in	3.18 mm
