39X2215 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

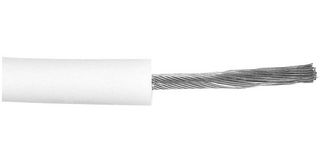

WIRE, HOOK UP, HIGH VOLTAGE, SILICONE RUBBER, WHITE, 22 AWG, 500 FT
| Part | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Length [x] | Length [x] | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Material | Features | Voltage | Cable Type | Wire Gauge | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 2.79 mm | 0.11 in | ISO 10993 | 7 | 30 AWG | 0.04 in | 1.02 mm | Silicone Rubber | 500 ' | 152.4 m | 200 °C | -40 °C | Copper Silver Coated | Biological Compatibility | 15 kV | Hook-Up | 22 AWG | ||
 ALPHA WIRE | 2.79 mm | 0.11 in | ISO 10993 | 7 | 30 AWG | 0.04 in | 1.02 mm | Silicone Rubber | 200 °C | -40 °C | Copper Silver Coated | Biological Compatibility | 15 kV | Hook-Up | 22 AWG | 1000 ft | 304.8 m |
