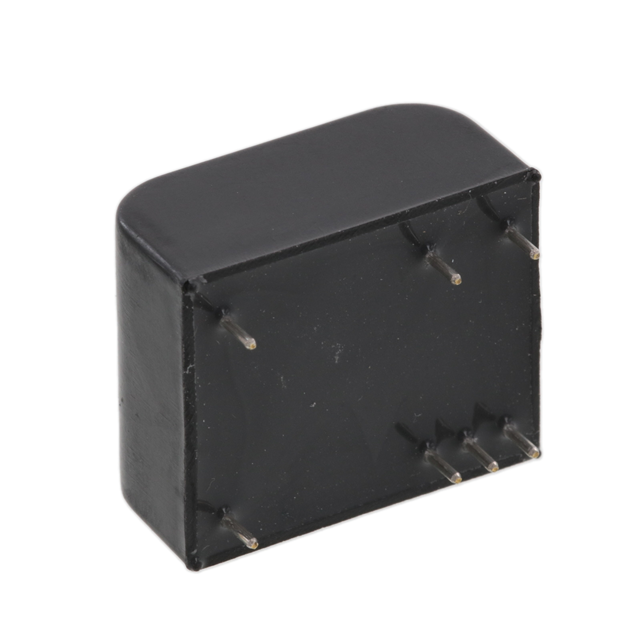

BPWX 0.5 Series

Catalog

AC/DC CONVERTER 8V 1/2W

Part	Efficiency	Operating Temperature (Min)	Operating Temperature (Max)	Approval Agency	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length	Type	Applications	Mounting Type	Package / Case	Voltage - Input (AC) Maximum	Voltage - Input (AC) Minimum	Number of Outputs	Voltage - Output 1	Current - Output (Max) Options	Power (Watts)	Current - Output (Max)
Cita Technologies, LLC. BPWX 0.5-08-00	70 %	-40 °C	85 °C	CB cURus	0.55 in	0.92 in	1.1 in	Enclosed	ITE (Commercial)	Through Hole	7-DIP Module	308 V	90 V	1	8 V
Cita Technologies, LLC. BPWX 0.5-14-33	70 %	-40 °C	85 °C	CB cURus	0.55 in	0.92 in	1.1 in	Enclosed	ITE (Commercial)	Through Hole	7-DIP Module	308 V	90 V	2	14 V	23mA 36mA	441 mW
Cita Technologies, LLC. BPWX 0.5-08-33	70 %	-40 °C	85 °C	CB cURus	0.55 in	0.92 in	1.1 in	Enclosed	ITE (Commercial)	Through Hole	7-DIP Module	308 V	90 V	2	8 V	53mA 63mA	632 mW
Cita Technologies, LLC. BPWX 0.5-14-00	70 %	-40 °C	85 °C	CB cURus	0.55 in	0.92 in	1.1 in	Enclosed	ITE (Commercial)	Through Hole	7-DIP Module	308 V	90 V	1	14 V
Cita Technologies, LLC. BPWX 0.5-14-50	70 %	-40 °C	85 °C	CB cURus	0.55 in	0.92 in	1.1 in	Enclosed	ITE (Commercial)	Through Hole	7-DIP Module	308 V	90 V	2	14 V	28mA 36mA	572 mW
Cita Technologies, LLC. BPWX 0.5-08-50	70 %	-40 °C	85 °C	CB cURus	0.55 in	0.92 in	1.1 in	Enclosed	ITE (Commercial)	Through Hole	7-DIP Module	308 V	90 V	2	8 V		819 mW	63 mA
