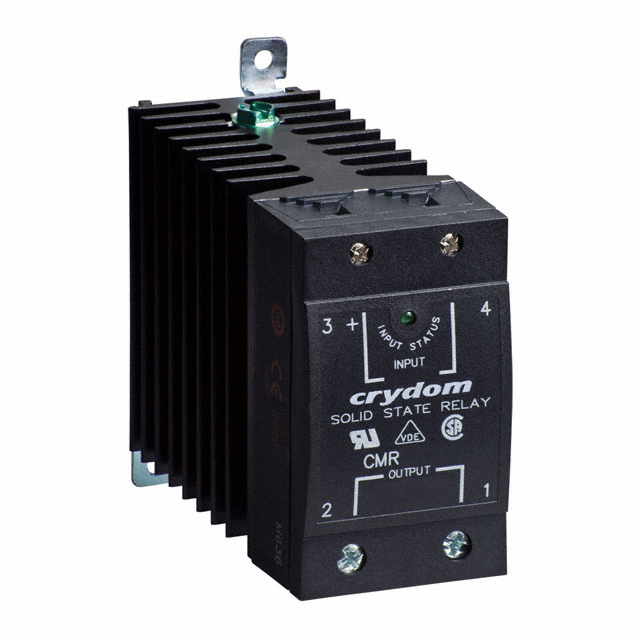

CMRA48 Series

Catalog

SSR RELAY SPST-NO 45A 48-530V

Part	Voltage - Input [Max]	Voltage - Input [Min]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Load Current	Output Type	Approval Agency	Mounting Type	Termination Style
Sensata-Crydom CMRA4845	140 VAC	90 VAC	SSR with Integrated Heat Sink	80 °C	-40 C	45 A	AC Zero Cross	CE CSA cURus VDE	DIN Rail	Screw Terminal
Sensata-Crydom CMRA4845-10	140 VAC	90 VAC	SSR with Integrated Heat Sink	80 °C	-40 C	45 A	AC	CE CSA cURus VDE	DIN Rail	Screw Terminal
Sensata-Crydom CMRA4865	140 VAC	90 VAC	SSR with Integrated Heat Sink	80 °C	-40 C	65 A	AC Zero Cross	CE CSA cURus VDE	DIN Rail	Screw Terminal
Sensata-Crydom CMRA4835	140 VAC	90 VAC	SSR with Integrated Heat Sink	80 °C	-40 C	35 A	AC Zero Cross	CE CSA cURus VDE	DIN Rail	Screw Terminal
Sensata-Crydom CMRA4855-10	140 VAC	90 VAC	SSR with Integrated Heat Sink	80 °C	-40 C	55 A	AC	CE CSA cURus VDE	DIN Rail	Screw Terminal
Sensata-Crydom CMRA4855	140 VAC	90 VAC	SSR with Integrated Heat Sink	80 °C	-40 C	55 A	AC Zero Cross	CE CSA cURus VDE	DIN Rail	Screw Terminal
