M20-787 Series

Catalog

3+3 POS. FEMALE DIL VERTICAL SMT CONN. ROHS COMPLIANT: YES

Part	Insulation Material	Contact Shape	Applications	Contact Material	Termination	Style	Number of Positions	Connector Type	Contact Finish - Mating	Insulation Color	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Material Flammability Rating	Current Rating (Amps)	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Mated Stacking Heights	Mounting Type	Number of Positions Loaded	Voltage Rating	Insulation Height [z]	Insulation Height [z]
Harwin Inc. M20-7870342	Nylon 6T Polyamide (PA6T)	Square	General Purpose Industrial Telecommunications	Phosphor Bronze	Solder	Board to Board Cable	6	Receptacle Bottom or Top Entry	Gold	Black	Tin	-40 C	105 ░C	Push-Pull	UL94 V-0	3 A	2	0.1 "	2.54 mm	0.1 in	2.54 mm	Female Socket	10.04 mm 11.63 mm	Surface Mount	All	1000 VDC	7.5 mm	0.295 in
Harwin Inc. M20-7870642	Nylon 6T Polyamide (PA6T)	Square	General Purpose Industrial Telecommunications	Phosphor Bronze	Solder	Board to Board Cable	12	Receptacle Bottom or Top Entry	Gold	Black	Tin	-40 C	105 ░C	Push-Pull	UL94 V-0	3 A	2	0.1 "	2.54 mm	0.1 in	2.54 mm	Female Socket	10.04 mm 11.63 mm	Surface Mount	All	1000 VDC	7.5 mm	0.295 in
Harwin Inc. M20-7870842	Nylon 6T Polyamide (PA6T)	Square	General Purpose Industrial Telecommunications	Phosphor Bronze	Solder	Board to Board Cable	16	Receptacle Bottom or Top Entry	Gold	Black	Tin	-40 C	105 ░C	Push-Pull	UL94 V-0	3 A	2	0.1 "	2.54 mm	0.1 in	2.54 mm	Female Socket	10.04 mm 11.63 mm	Surface Mount	All	1000 VDC	7.5 mm	0.295 in
Harwin Inc. M20-7870242	Nylon 6T Polyamide (PA6T)	Square	General Purpose Industrial Telecommunications	Phosphor Bronze	Solder	Board to Board Cable	4	Receptacle Bottom or Top Entry	Gold	Black	Tin	-40 C	105 ░C	Push-Pull	UL94 V-0	3 A	2	0.1 "	2.54 mm	0.1 in	2.54 mm	Female Socket	10.04 mm 11.63 mm	Surface Mount	All	1000 VDC	7.5 mm	0.295 in
Harwin Inc. M20-7870646	Nylon 6T Polyamide (PA6T)	Square	General Purpose Industrial Telecommunications	Phosphor Bronze	Solder	Board to Board Cable	12	Receptacle Bottom or Top Entry		Black	Tin	-40 C	105 ░C	Push-Pull	UL94 V-0	3 A	2	0.1 "	2.54 mm	0.1 in	2.54 mm	Female Socket	10.04 mm 11.63 mm	Surface Mount	All	1000 VDC	7.5 mm	0.295 in
Harwin Inc. M20-7870442	Nylon 6T Polyamide (PA6T)	Square	General Purpose Industrial Telecommunications	Phosphor Bronze	Solder	Board to Board Cable	8	Receptacle Bottom or Top Entry	Gold	Black	Tin	-40 C	105 ░C	Push-Pull	UL94 V-0	3 A	2	0.1 "	2.54 mm	0.1 in	2.54 mm	Female Socket	10.04 mm 11.63 mm	Surface Mount	All	1000 VDC	7.5 mm	0.295 in
Harwin Inc. M20-7871042	Nylon 6T Polyamide (PA6T)	Square	General Purpose Industrial Telecommunications	Phosphor Bronze	Solder	Board to Board Cable	20	Receptacle Bottom or Top Entry	Gold	Black	Tin	-40 C	105 ░C	Push-Pull	UL94 V-0	3 A	2	0.1 "	2.54 mm	0.1 in	2.54 mm	Female Socket	10.04 mm 11.63 mm	Surface Mount	All	1000 VDC	7.5 mm	0.295 in

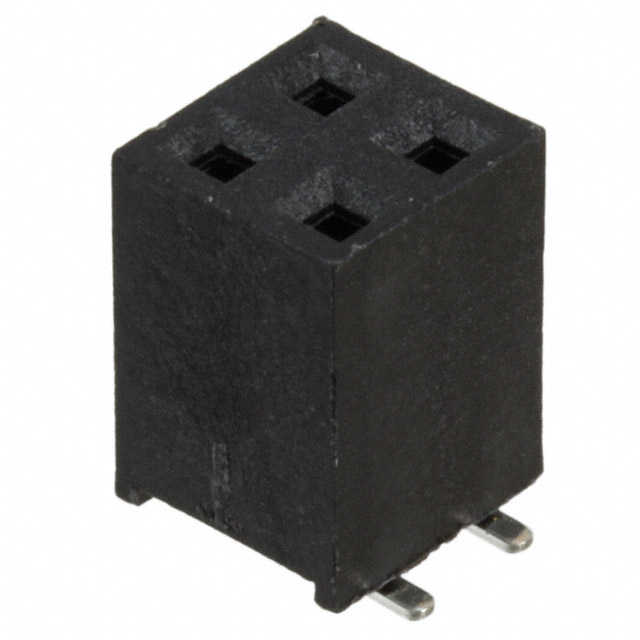

Harwin Inc. M20-7870246	Nylon 6T Polyamide (PA6T)	Square	General Purpose Industrial Telecommunications	Phosphor Bronze	Solder	Board to Board Cable	4	Receptacle Bottom or Top Entry		Black	Tin	-40 C	105 ░C	Push-Pull	UL94 V-0	3 A	2	0.1 "	2.54 mm	0.1 in	2.54 mm	Female Socket	10.04 mm 11.63 mm	Surface Mount	All	1000 VDC	7.5 mm	0.295 in
Harwin Inc. M20-7870442R	Nylon 6T Polyamide (PA6T)	Square	General Purpose Industrial Telecommunications	Phosphor Bronze	Solder	Board to Board Cable	8	Receptacle Bottom or Top Entry	Gold	Black	Tin	-40 C	105 ░C	Push-Pull	UL94 V-0	3 A	2	0.1 "	2.54 mm	0.1 in	2.54 mm	Female Socket	10.04 mm 11.63 mm	Surface Mount	All	1000 VDC	7.5 mm	0.295 in
Harwin Inc. M20-7870542	Nylon 6T Polyamide (PA6T)	Square	General Purpose Industrial Telecommunications	Phosphor Bronze	Solder	Board to Board Cable	10	Receptacle Bottom or Top Entry	Gold	Black	Tin	-40 C	105 ░C	Push-Pull	UL94 V-0	3 A	2	0.1 "	2.54 mm	0.1 in	2.54 mm	Female Socket	10.04 mm 11.63 mm	Surface Mount	All	1000 VDC	7.5 mm	0.295 in
