XZM2CYK45 Series

Manufacturer: SunLED

Catalog

LED YELLOW CLEAR 2SMD

Part	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Millicandela Rating	Lens Size [diameter]	Color	Mounting Type	Lens Color	Wavelength - Peak	Current - Test	Package / Case	Package / Case	Wavelength - Dominant	Viewing Angle	Lens Transparency	Lens Style	Configuration	Height (Max) [Max] [z]	Height (Max) [z]

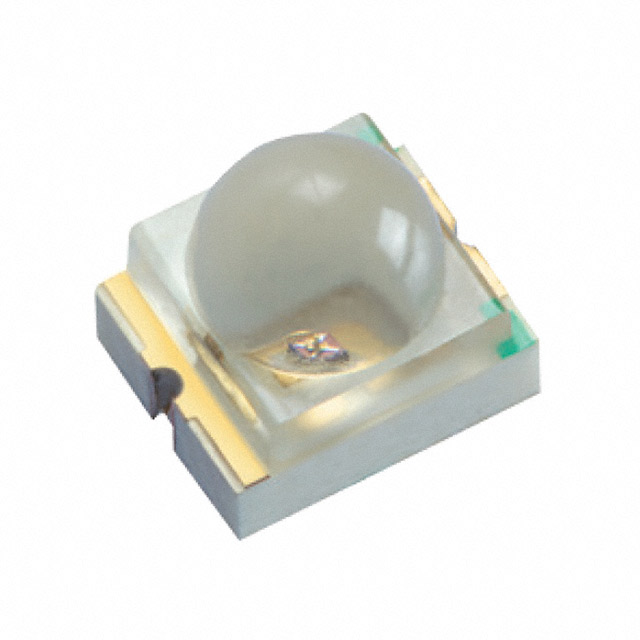

SunLED XZM2CYK45W-2	3.5 mm	2.8 mm	2 V	2-SMD	1295 mcd	2.6 mm Dia	Yellow	Surface Mount	Colorless	590 nm	20 mA	3528 Metric	1411	590 nm	40 °	Clear	Round with Domed Top	Standard	3.2 mm
SunLED XZM2CYK45WT-9	3.2 mm	2.8 mm	2 V	2-PLCC	447 mcd	2.4 mm Dia	Yellow	Surface Mount Bottom Entry	Colorless	590 nm	20 mA		2-SMD Z-Bend	590 nm	120 °	Clear	Round with Flat Top	Standard		2.1 mm
SunLED XZM2CYK45W50MAV-6	3.5 mm	2.8 mm	2.3 V	4-SMD	4490 mcd	2.6 mm Dia	Yellow	Surface Mount	Colorless	590 nm	50 mA	3528 Metric	1411	590 nm	60 °	Clear	Round with Domed Top	Standard	3.4 mm

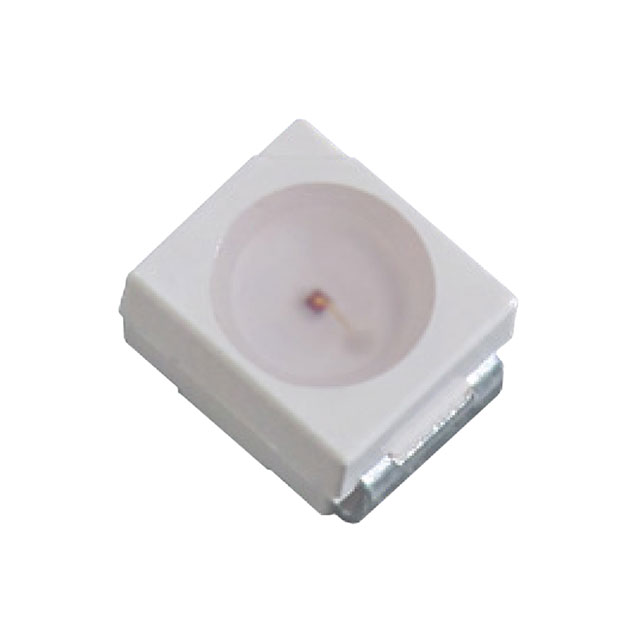

SunLED XZM2CYK45WT	3.2 mm	2.8 mm	2 V	2-PLCC	447 mcd	2.4 mm Dia	Yellow	Surface Mount	Colorless	590 nm	20 mA		2-PLCC	590 nm	120 °	Clear	Round with Flat Top	Standard		2.1 mm
