NKR141 Series

Catalog

DISPLAY 7-SEG 0.4" SGL RED 10DIP

Part	Common Pin	Power Dissipation (Max) [Max]	Current - Test	Voltage - Forward (Vf) (Typ)	Number of Characters	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Digit/Alpha Size	Digit/Alpha Size	Display Type	Color	Wavelength - Peak	Package / Case	Millicandela Rating	Size / Dimension [y]	Size / Dimension [x]

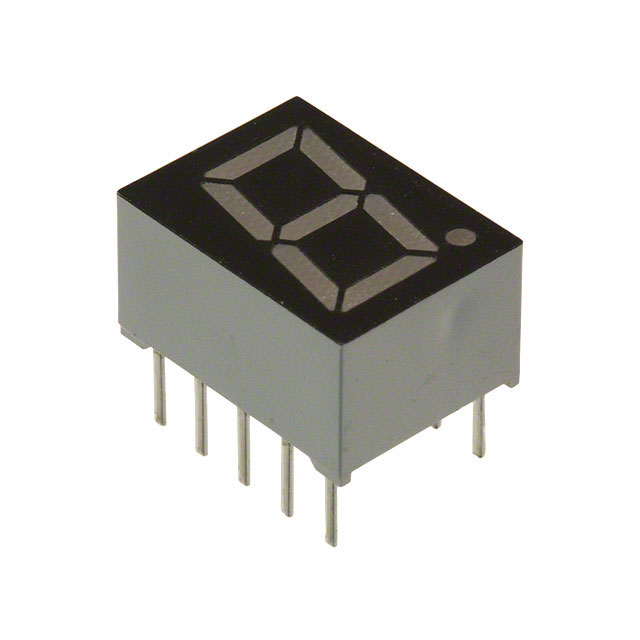

Stanley Electric Co NKR141SC	Common Cathode	40 mW	10 mA	1.7 V	1	13 mm	0.512 in	9	0.276 "	0.378 in	10.16 mm	0.4 in	7-Segment	Red	660 nm	10-DIP (0.300" 7.62mm)
Stanley Electric Co NKR141SB	Common Cathode	40 mW	10 mA	1.7 V	1	13 mm	0.512 in	9	0.276 "	0.378 in	10.16 mm	0.4 in	7-Segment	Red	660 nm	10-DIP (0.300" 7.62mm)	3.2 mcd
Stanley Electric Co NKR141SH-F
Stanley Electric Co NKR141B	Common Cathode		20 mA	1.7 V	1	19 mm	0.748 in		0.248 in	0.492 "	10.92 mm	0.43 in	7-Segment	Red	660 nm	14-DIP	8 mcd	12.5 mm	6.3 mm
