BD9G341 Series
Manufacturer: Rohm Semiconductor
Beta
⌘K

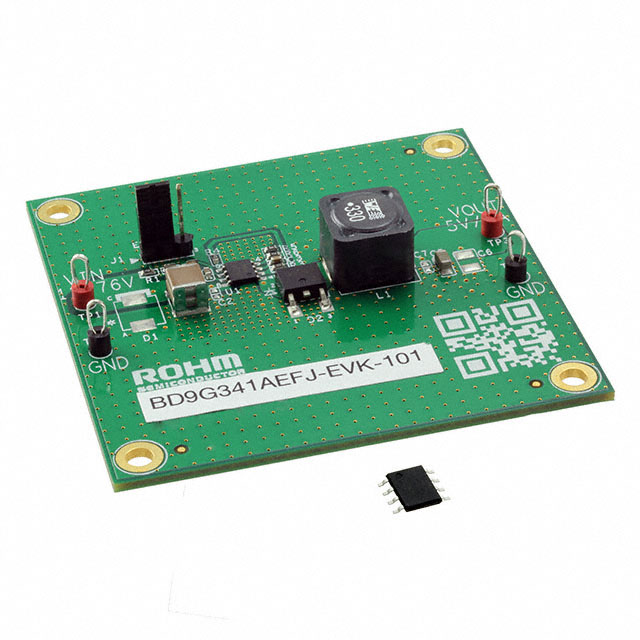

EVAL BOARD FOR BD9G341
| Part | Outputs and Type | Outputs and Type | Board Type | Supplied Contents | Contents | Main Purpose | Current - Output | Voltage - Input [Min] | Voltage - Input [Max] | Regulator Topology | Voltage - Output | Utilized IC / Part | Function | Mounting Type | Voltage - Input (Min) [Min] | Voltage - Output (Max) [Max] | Topology | Number of Outputs | Supplier Device Package | Synchronous Rectifier | Operating Temperature [Max] | Operating Temperature [Min] | Frequency - Switching [Min] | Frequency - Switching [Max] | Output Type | Output Configuration | Voltage - Input (Max) [Max] | Package / Case | Package / Case [y] | Package / Case [x] | Voltage - Output (Min/Fixed) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rohm Semiconductor | 1 | 1 Non-Isolated Output Non-Isolated | Fully Populated | Board(s) | Board(s) | DC/DC Step Down | 3 A | 12 V | 76 V | Buck | |||||||||||||||||||||
 Rohm Semiconductor | 1 | 1 Non-Isolated Output Non-Isolated | Fully Populated | Board(s) | Board(s) | DC/DC Step Down | 3 A | 12 V | 76 V | Buck | 5 V | BD9G341A | |||||||||||||||||||
 Rohm Semiconductor | 3 A | Step-Down | Surface Mount | 12 V | 76 V | Buck | 1 | 8-HTSOP-J | 85 C | -40 ¯C | 50 kHz | 750 kHz | Adjustable | Positive | 76 V | 8-SOIC Exposed Pad | 3.9 mm | 0.154 in | 1 V |
