19302161 Series

Manufacturer: HARTING

Catalog

HEAVY DUTY CONNECTOR, M32, HOOD, TOP ENTRY, ALUMINUM BODY, 1 LEVER, 16B

Part	Style	Lock Location	Housing Finish	Housing Material	Housing Color	Ingress Protection	Connector Type	Thread Size	Size	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Size / Dimension [y]	Size / Dimension [z]
HARTING 19302161752	Top Entry Top or Bottom Entry	Locking Clip (1) on Hood	Powder Coated	Aluminum Die Cast	Gray	IP65 - Dust Tight Water Resistant	Hood - Coupling	M32	16 B	43 mm	47.4 mm	3.681 in	1.866 "	1.693 "	93.5 mm	125 °C	-40 C	Cable to Cable

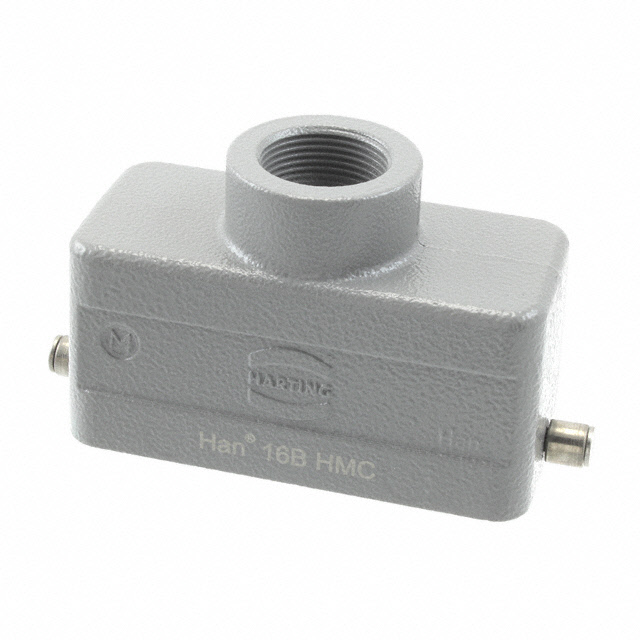

HARTING 19302161441	Top Entry	Locking Clip (1) on Base Bottom	Powder Coated	Aluminum Die Cast	Gray	IP65 - Dust Tight Water Resistant	Hood	M25	16 B	43 mm	45 mm	3.681 in	1.772 in	1.693 "	93.5 mm	125 °C	-40 C
HARTING 19302161251	Side Entry	Locking Clip (1) on Base Bottom	Powder Coated	Aluminum Die Cast	Gray	IP65 - Dust Tight Water Resistant	Base - Box Mount	M25	16 B			4.606 in	2.197 in	2.244 "	117 mm	125 °C	-40 C		57 mm	55.8 mm
HARTING 19302161291	Side Entry Dual	Locking Clip (1) on Base Bottom	Powder Coated	Aluminum Die Cast	Gray	IP65 - Dust Tight Water Resistant	Base - Box Mount	M25	16 B			4.606 in	2.197 in	2.244 "	117 mm	125 °C	-40 C	Feed Through	57 mm	55.8 mm

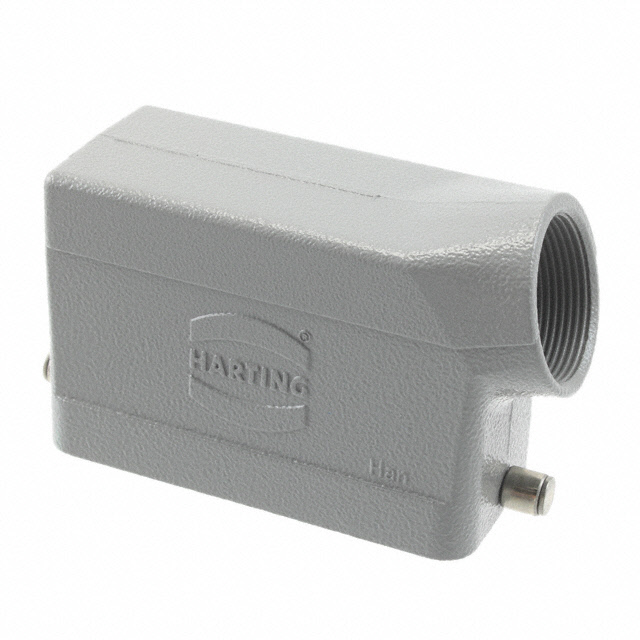

HARTING 19302161542	Side Entry	Locking Clip (1) on Base Bottom	Powder Coated	Aluminum Die Cast	Gray	IP65 - Dust Tight Water Resistant	Hood	M32	16 B	1.693 " 43 mm	2.461 in 62.5 mm				3.681 in 93.5 mm	125 °C	-40 C
