SWH204 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN RCPT HSG 26POS 2.00MM

Part	Note	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Number of Rows [custom]	Connector Type	Number of Positions	Mounting Type	Pitch [x]	Pitch [x]	Row Spacing	Row Spacing	Color	Contact Type
Sullins Connector Solutions SWH204-NULN-D13-UU-WH	Contacts Not Included	Crimp	85 °C	-25 °C	Nylon 6/6 Polyamide (PA66)	2	Receptacle	26	Free Hanging (In-Line)	0.079 in	2 mm	2 mm	0.079 in	White	Female Socket

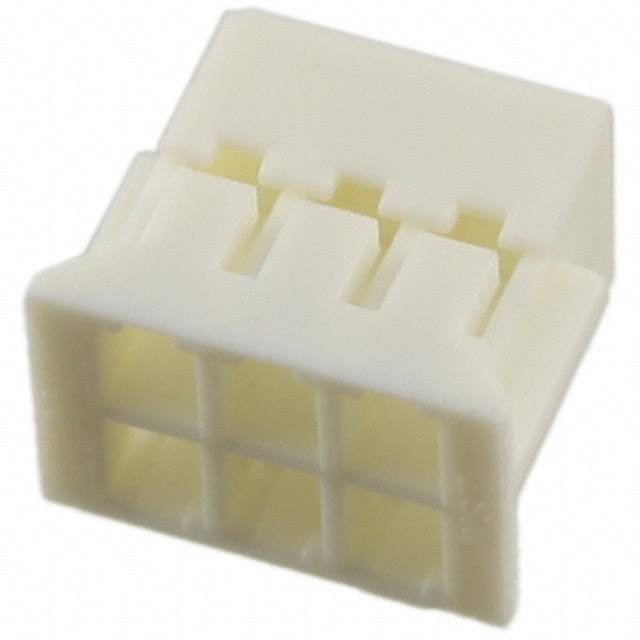

Sullins Connector Solutions SWH204-NULN-D03-UU-WH	Contacts Not Included	Crimp	85 °C	-25 °C	Nylon 6/6 Polyamide (PA66)	2	Receptacle	6	Free Hanging (In-Line)	0.079 in	2 mm	2 mm	0.079 in	White	Female Socket
Sullins Connector Solutions SWH204-NULN-D11-UU-WH	Contacts Not Included	Crimp	85 °C	-25 °C	Nylon 6/6 Polyamide (PA66)	2	Receptacle	22	Free Hanging (In-Line)	0.079 in	2 mm	2 mm	0.079 in	White	Female Socket

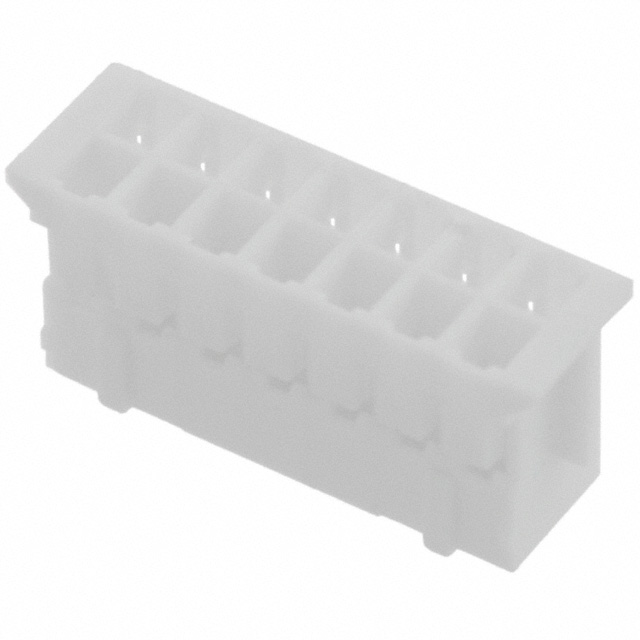

Sullins Connector Solutions SWH204-NULN-D07-UU-WH	Contacts Not Included	Crimp	85 °C	-25 °C	Nylon 6/6 Polyamide (PA66)	2	Receptacle	14	Free Hanging (In-Line)	0.079 in	2 mm	2 mm	0.079 in	White	Female Socket

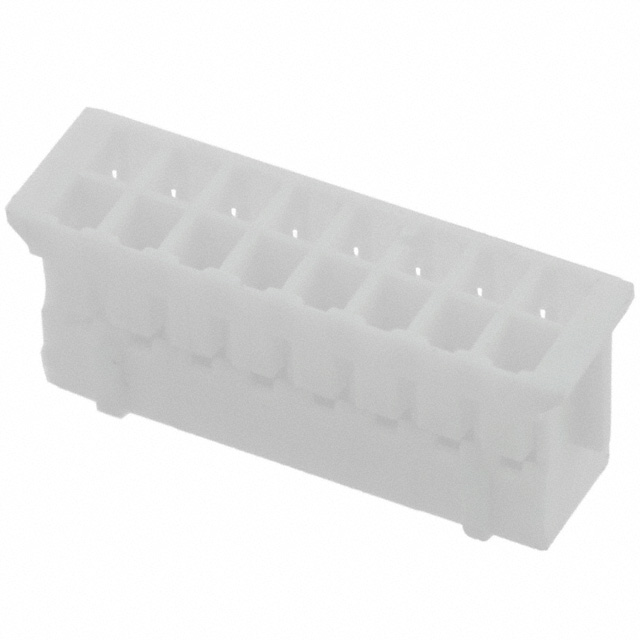

Sullins Connector Solutions SWH204-NULN-D08-UU-WH	Contacts Not Included	Crimp	85 °C	-25 °C	Nylon 6/6 Polyamide (PA66)	2	Receptacle	16	Free Hanging (In-Line)	0.079 in	2 mm	2 mm	0.079 in	White	Female Socket
Sullins Connector Solutions SWH204-NULN-D14-UU-WH	Contacts Not Included	Crimp	85 °C	-25 °C	Nylon 6/6 Polyamide (PA66)	2	Receptacle	28	Free Hanging (In-Line)	0.079 in	2 mm	2 mm	0.079 in	White	Female Socket
Sullins Connector Solutions SWH204-NULN-D12-UU-WH	Contacts Not Included	Crimp	85 °C	-25 °C	Nylon 6/6 Polyamide (PA66)	2	Receptacle	24	Free Hanging (In-Line)	0.079 in	2 mm	2 mm	0.079 in	White	Female Socket

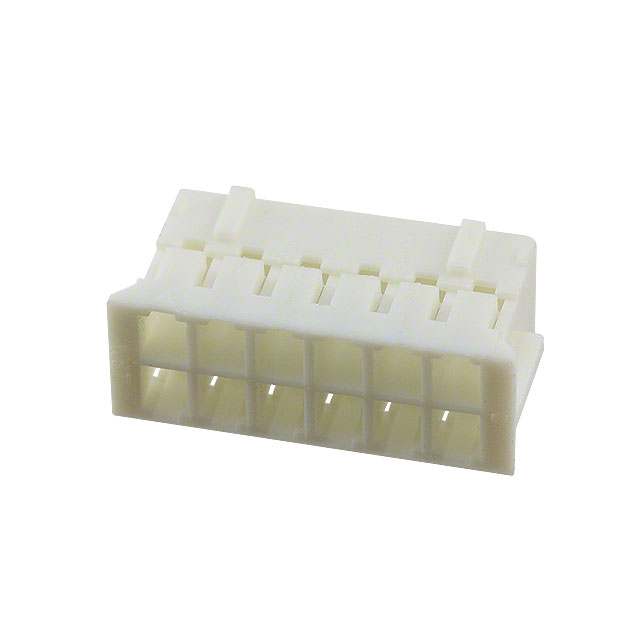

Sullins Connector Solutions SWH204-NULN-D06-UU-WH	Contacts Not Included	Crimp	85 °C	-25 °C	Nylon 6/6 Polyamide (PA66)	2	Receptacle	12	Free Hanging (In-Line)	0.079 in	2 mm	2 mm	0.079 in	White	Female Socket

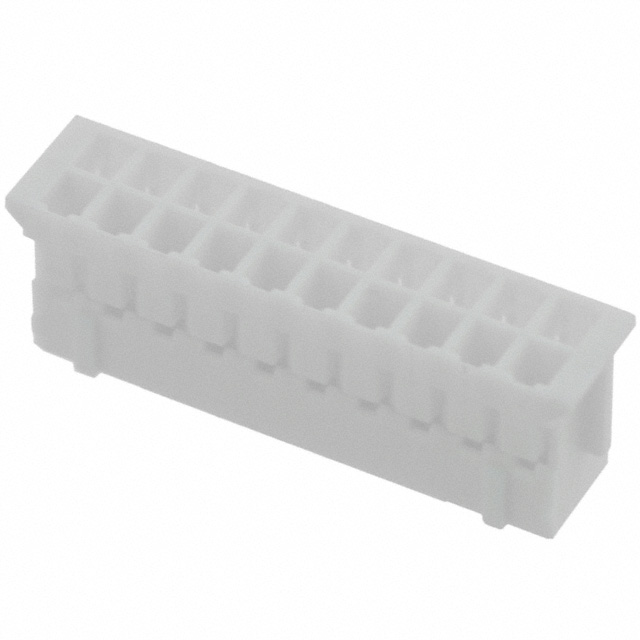

Sullins Connector Solutions SWH204-NULN-D10-UU-WH	Contacts Not Included	Crimp	85 °C	-25 °C	Nylon 6/6 Polyamide (PA66)	2	Receptacle	20	Free Hanging (In-Line)	0.079 in	2 mm	2 mm	0.079 in	White	Female Socket
