9891 Series
Manufacturer: Belden Inc.
Beta
⌘K

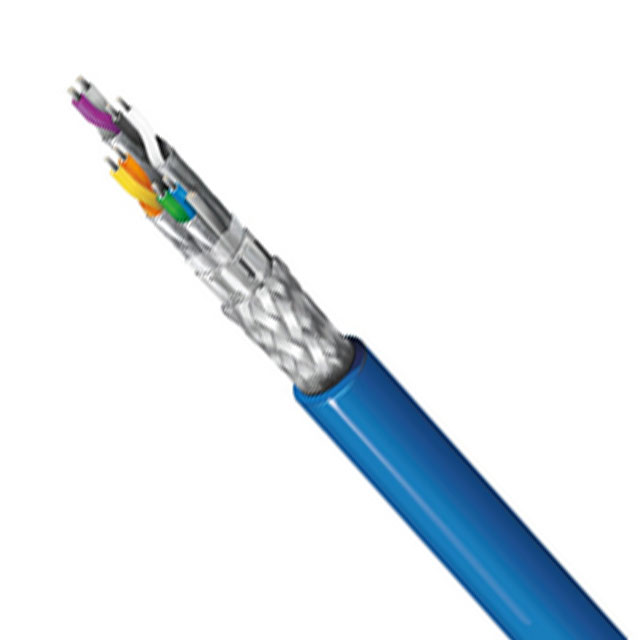

MULTI-PAIR 8COND 20/22AWG
| Part | Shield Material | Shield Coverage | Conductor Material | Cable Type | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Insulation | Number of Conductors | Conductor Strand [custom] | Conductor Strand [x] | Ratings | Wire Gauge | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Shield Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Copper Tinned | Multi-Pair | 80 °C | -20 ░C | Foam High Density Polyethylene (FHDPE) Poly-Vinyl Chloride (PVC) | 8 | 28 30 | 7 | UL Style 2919 | 20 22 | Blue | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | 0.336 in | 8.53 mm | Drain Wire | Foil | ||
Belden Inc. | Aluminum Copper Tinned | 95 % 100 % | Copper Tinned | Multi-Pair | 80 °C | -20 ░C | Foam High Density Polyethylene (FHDPE) Poly-Vinyl Chloride (PVC) | 8 | 28 30 | 7 | UL Style 2919 | 20 22 | Blue | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | 0.316 " | 8.03 mm | Drain Wire | Braid Foil | 100 ft | 30.5 m |
