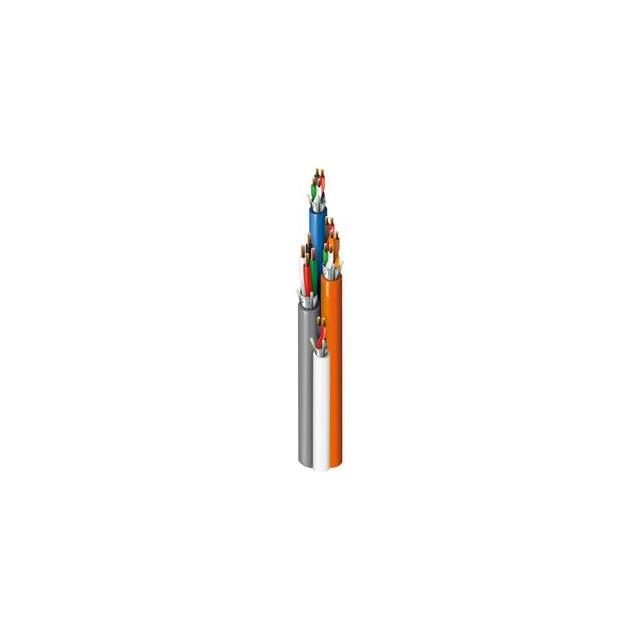

658AFS Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTI-PAIR 16COND 18/22AWG
| Part | Shield Coverage | Shield Material | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Features | Conductor Insulation | Wire Gauge | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Number of Conductors [custom] | Number of Conductors [custom] | Voltage | Conductor Material | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | UL Style CMP | 7 | 26 AWG 30 AWG | Drain Wire | Low Smoke Poly-Vinyl Chloride (LSPVC) | 18 AWG 22 AWG | Foil | 10.67 mm | 0.42 in | 304.8 m | 1000 ft | 3 | 10 | 300 VDC | Copper Bare | Multi-Pair |
Belden Inc. | 100 % | Aluminum | UL Style CMP | 7 | 26 AWG 30 AWG | Drain Wire | Low Smoke Poly-Vinyl Chloride (LSPVC) | 18 AWG 22 AWG | Foil | 10.67 mm | 0.42 in | 152.4 m | 500 ft | 3 | 10 | 300 VDC | Copper Bare | Multi-Pair |
