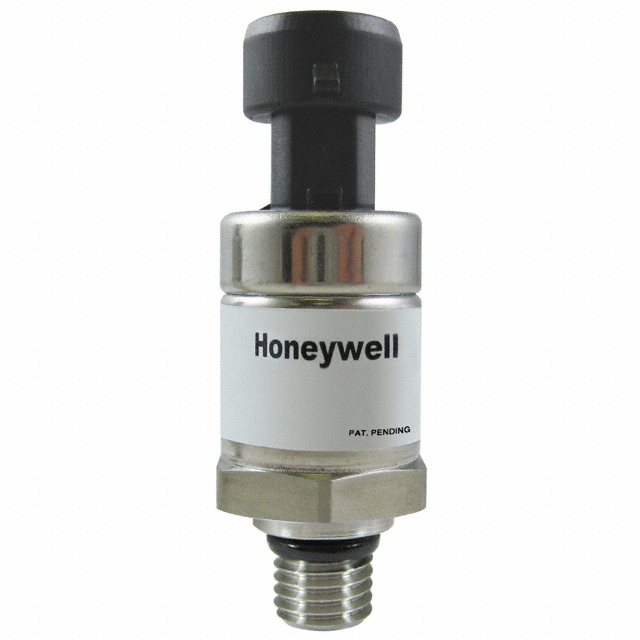

PX2AM1 Series

Catalog

HEAVY DUTY PRESSURE TRANSDUCER

Part	Output [Max]	Output [Min]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Features	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Accuracy	Operating Pressure	Operating Pressure	Maximum Pressure [Max]	Maximum Pressure [Max]	Termination Style	Port Style	Port Size	Port Size	Package / Case	Pressure Type
Honeywell Sensing and Productivity Solutions PX2AM1XX100PAABX	4.75 V	0.25 V	Industrial Automation	125 °C	-40 °C	Temperature Compensated	Analog Voltage	4.5 V	5.5 V	0.25 %	689.48 kPa	100 PSI	450 PSI	3102.64 kPa	Connector	Threaded	M12 Male	1.5	Cylinder
Honeywell Sensing and Productivity Solutions PX2AM1XX001GSCHX

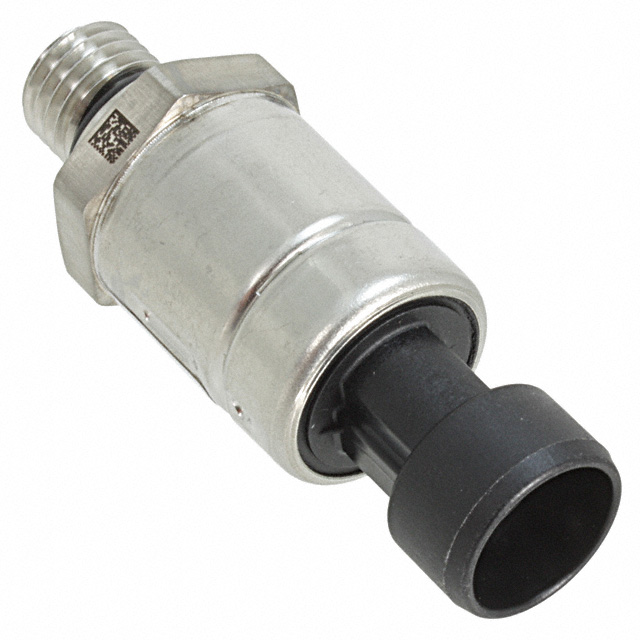

Honeywell Sensing and Productivity Solutions PX2AM1XX100PSCHX	20 mA	4 mA	Industrial Automation	125 °C	-40 °C	Temperature Compensated	Analog Current	8 V	30 VDC	0.25 %	689.48 kPa	100 PSI	450 PSI	3102.64 kPa	Connector	Threaded	M12 Male	1.5	Cylinder	Sealed Gauge
