NCN3411 Series

Data Switch, 4-Channel Differential, 1:2 Mux/Demux, for PCI Express Gen3

Catalog

Data Switch, 4-Channel Differential, 1:2 Mux/Demux, for PCI Express Gen3

Part	Multiplexer/Demultiplexer Circuit	Operating Temperature [Max]	Operating Temperature [Min]	On-State Resistance (Max) [Max]	Number of Channels	Mounting Type	Switch Circuit	Package / Case	Applications	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Supplier Device Package
ON Semiconductor NCN3411MTTWG	2:1	85 °C	-40 °C	13 Ohm	4	Surface Mount	SPDT	42-WFQFN Exposed Pad	PCI Express®	1.5 V	2 V	42-WQFN (3.5x9)

Catalog

Data Switch, 4-Channel Differential, 1:2 Mux/Demux, for PCI Express Gen3

Key Features

• Data Rate of 8 Gbps

• Low Supply Current: 200 µA typical

Description

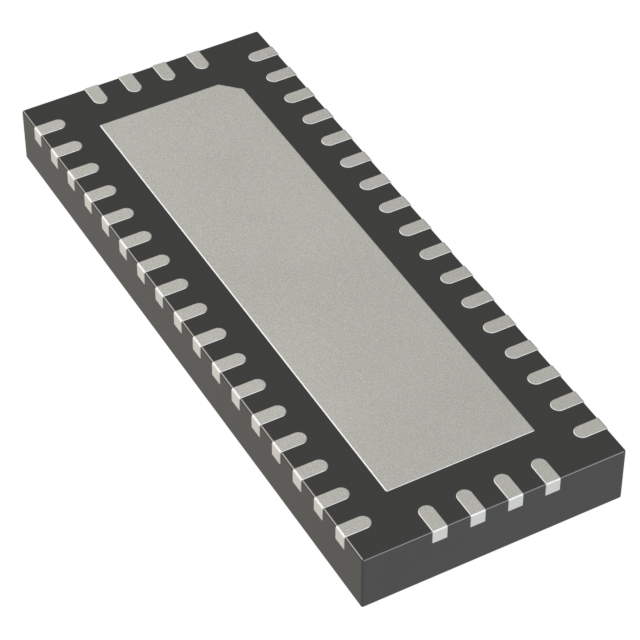

The NCN3411 is a 4-Channel differential SPDT switch designed to route PCI Express Gen3 signals. When used in a PCI Express application, the switch can handle up to two PCIe lanes. Due to the ultra-low ON-state capacitance (2 pF typ) and resistance (7.5 Ω typ), these switches are ideal for switching high frequency data signals up to a signal bit rate of 8 Gbps. This switch pinout is designed to be used in BTX form factor desktop PCs and is available in a space-saving 3.5 x 9 x 0.75 mm WQFN42 package.
