ATS-19B Series

Manufacturer: Advanced Thermal Solutions Inc.

Catalog

Catalog

HEATSINK 40X40X35MM R-TAB

...

Part	Attachment Method	Material	Type	Package Cooled	Thermal Resistance @ Forced Air Flow	Shape	Material Finish	Width [y]	Width [y]	Fin Height [custom]	Fin Height [custom]	Fin Height	Fin Height	Fin Height [z]	Fin Height [z]	Length	Length	Width [x]	Width [x]	Length [x]	Length [x]
Advanced Thermal Solutions Inc. ATS-19B-186-C1-R0	Push Pin	Aluminum	Top Mount	ASIC BGA CPU LGA	2.77 °C/W	Fins Square	Blue Anodized	1.575 in	40 mm	1.378 in	35 mm

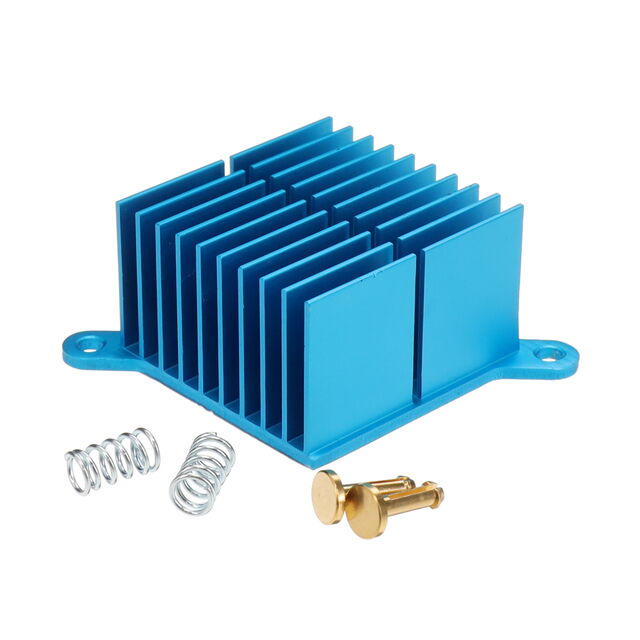

Advanced Thermal Solutions Inc. ATS-19B-184-C2-R0	Push Pin	Aluminum	Top Mount	ASIC BGA CPU LGA	4.14 °C/W	Fins Square	Blue Anodized	1.575 in	40 mm			25 mm	0.984 in
Advanced Thermal Solutions Inc. ATS-19B-181-C3-R0	Push Pin	Aluminum	Top Mount	ASIC BGA CPU LGA	12.06 °C/W	Fins Square	Blue Anodized	1.575 in	40 mm	0.394 "	10 mm
Advanced Thermal Solutions Inc. ATS-19B-183-C1-R0	Push Pin	Aluminum	Top Mount	ASIC BGA CPU LGA	5.34 °C/W	Fins Square	Blue Anodized	1.575 in	40 mm					20 mm	0.79 in
Advanced Thermal Solutions Inc. ATS-19B-128-C2-R0	Push Pin	Aluminum	Top Mount	ASIC BGA CPU LGA	2.91 °C/W	Fins Square	Blue Anodized					25 mm	0.984 in			2.126 in	54 mm	54 mm	2.126 in
Advanced Thermal Solutions Inc. ATS-19B-131-C3-R0	Push Pin	Aluminum	Top Mount	ASIC BGA CPU LGA	3.65 °C/W	Fins Square	Blue Anodized	2.362 in	60 mm					20 mm	0.79 in					2.362 in	60 mm
Advanced Thermal Solutions Inc. ATS-19B-20-C3-R0	Push Pin	Aluminum	Top Mount	ASIC BGA CPU LGA	7.21 °C/W	Fins Square	Blue Anodized					25 mm	0.984 in			2.126 in	54 mm	54 mm	2.126 in
Advanced Thermal Solutions Inc. ATS-19B-25-C3-R0	Push Pin	Aluminum	Top Mount	ASIC BGA CPU LGA	6.32 °C/W	Fins Square	Blue Anodized	2.362 in	60 mm			25 mm	0.984 in							2.362 in	60 mm
Advanced Thermal Solutions Inc. ATS-19B-29-C1-R0	Push Pin	Aluminum	Top Mount	ASIC BGA CPU LGA	7.56 °C/W	Fins Square	Blue Anodized							20 mm	0.79 in			70 mm	2.756 "	2.756 in	70 mm
Advanced Thermal Solutions Inc. ATS-19B-116-C3-R0	Push Pin	Aluminum	Top Mount	ASIC BGA CPU LGA	4.26 °C/W	Fins Square	Blue Anodized	1.575 in	40 mm			25 mm	0.984 in
