19370160 Series

Manufacturer: HARTING

Catalog

16B MARINE HOOD SIDE ENTRY, SINGLE LEVER, HIGH CONSTRUCTION, M40

Part	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location	Size	Housing Color	Ingress Protection	Connector Type	Housing Finish	Style	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Thread Size	Features

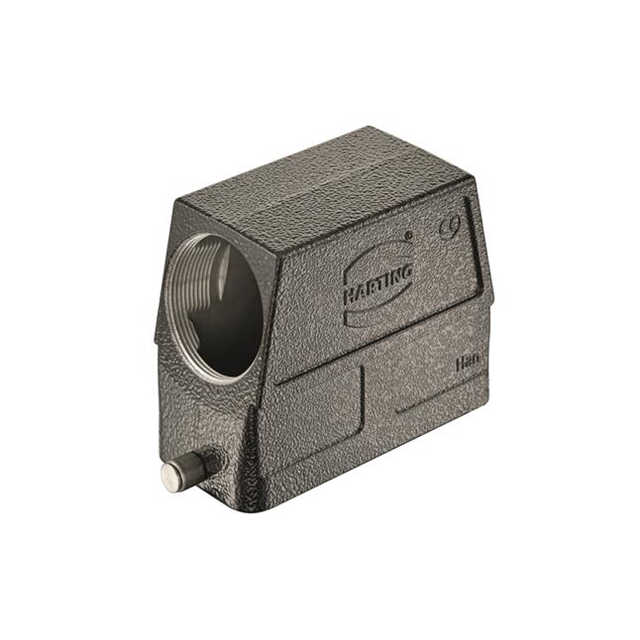

HARTING 19370160548	Aluminum Die Cast	125 °C	-40 C	Locking Clip (1) on Base Bottom	16 B	Black	IP65 IP66 IP67	Hood	Powder Coated	Side Entry
HARTING 19370160738
HARTING 19370160527	Aluminum Die Cast	125 °C	-40 C	Locking Clip (2) on Base Bottom	16 B	Black	IP65 - Dust Tight Water Resistant	Hood	Epoxy Powder Paint	Side Entry	3.681 in	43 mm	2.992 in	76 mm	1.693 "	93.5 mm	M32

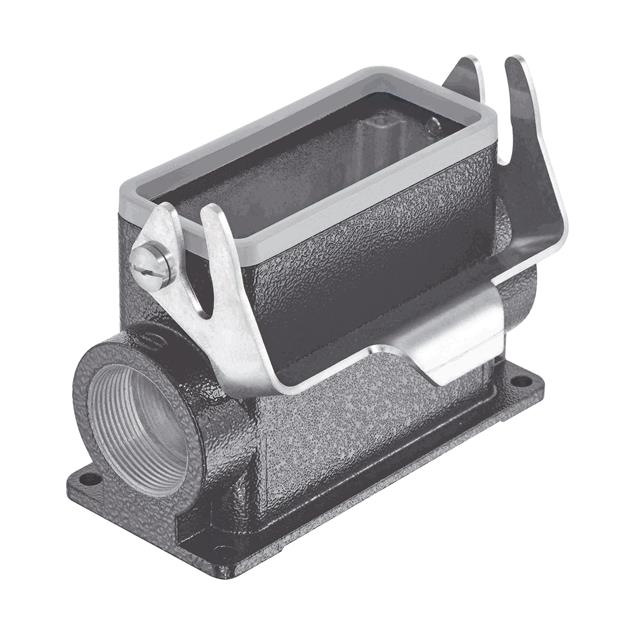

HARTING 19370160292

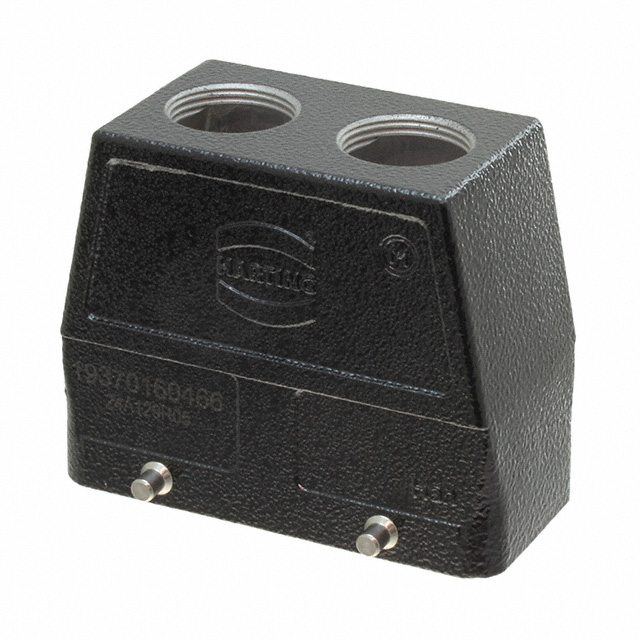

HARTING 19370160466
HARTING 19370160766

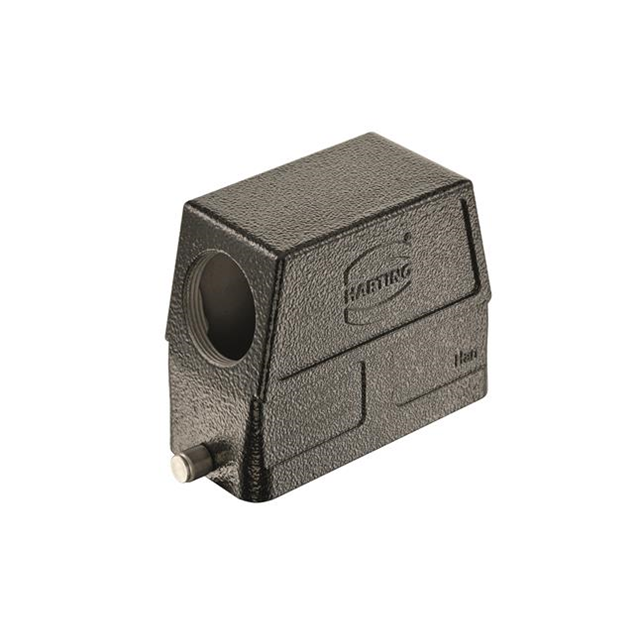

HARTING 19370160547	Aluminum Die Cast	125 °C	-40 C	Locking Clip (1) on Base Bottom	16 B	Black	IP65 IP66 IP67	Hood	Powder Coated	Side Entry							M32

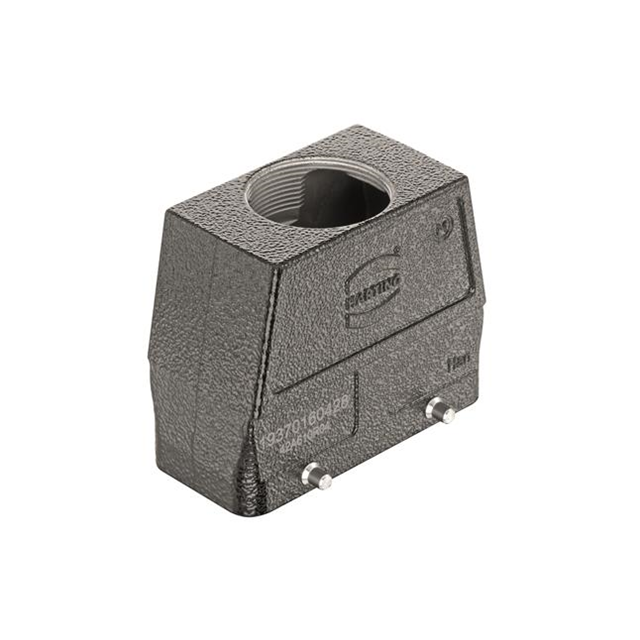

HARTING 19370160428	Aluminum Die Cast	125 °C	-40 C	Locking Clip (2) on Base Bottom	16 B	Black	IP65 - Dust Tight Water Resistant	Hood	Powder Coated	Top Entry	3.681 in	43 mm	2.992 in	76 mm	1.693 "	93.5 mm

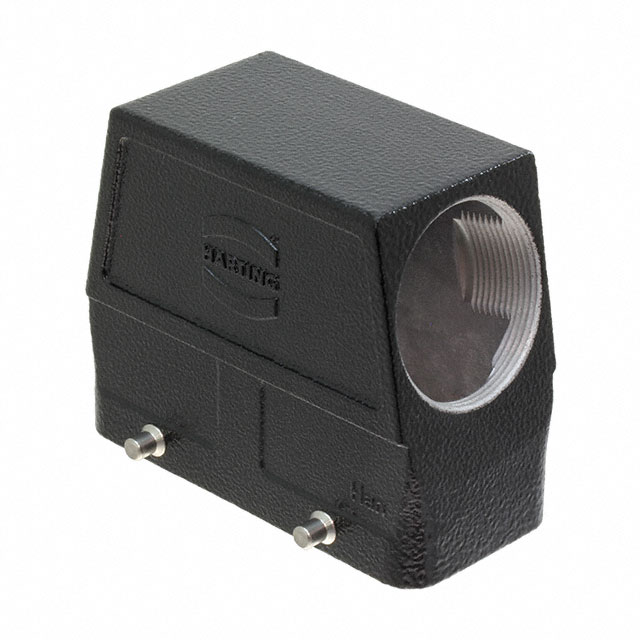

HARTING 19370160528	Aluminum Die Cast	125 °C	-40 C	Locking Clip (2) on Base Bottom	16 B	Black	IP65 - Dust Tight Water Resistant	Hood	Powder Coated	Side Entry	3.681 in	43 mm	2.992 in	76 mm	1.693 "	93.5 mm
HARTING 19370160272	Aluminum Die Cast	125 °C	-40 C	Locking Clip (2) on Base Bottom	16 B	Black	IP65 - Dust Tight Water Resistant	Base - Box Mount	Powder Coated	Side Entry	4.606 in	57 mm	3.181 in	80.8 mm	2.244 "	117 mm	M32	Feed Through
