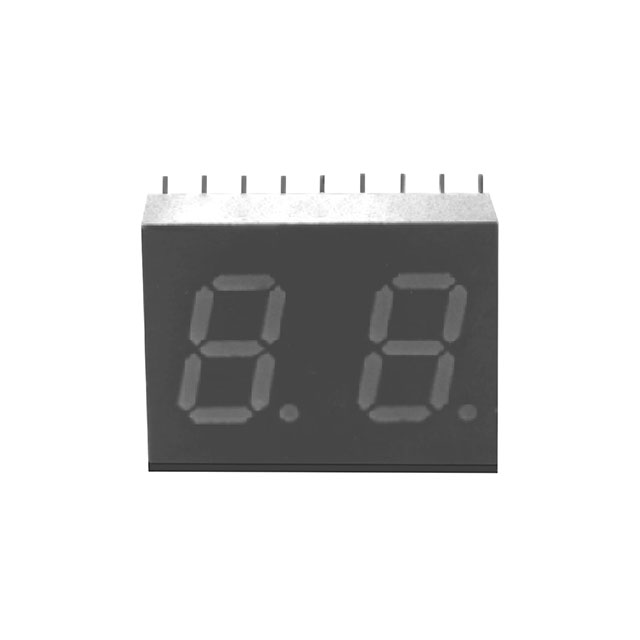

HDSP-K5 Series
Manufacturer: Broadcom Limited
Beta
⌘K
DISPLAY 7SEG 0.56" DBL GRN 18DIP
| Part | Package / Case | Package / Case | Package / Case | Common Pin | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Number of Characters | Voltage - Forward (Vf) (Typ) | Millicandela Rating | Color | Current - Test | Digit/Alpha Size | Digit/Alpha Size | Wavelength - Peak | Display Type | Power Dissipation (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Broadcom Limited | 15.24 mm | 0.6 in | 18-DIP | Common Anode | 0.315 " | 0.99 in | 25.15 mm | 17.02 mm | 0.67 in | 8 mm | 2 | 2.1 V | 2.5 mcd | Green | 10 mA | 0.56 in | 14.22 mm | 566 nm | 7-Segment | 105 mW |
Broadcom Limited | 15.24 mm | 0.6 in | 18-DIP | Common Cathode | 0.315 " | 0.99 in | 25.15 mm | 17.02 mm | 0.67 in | 8 mm | 2 | 2.1 V | 2.5 mcd | Green | 10 mA | 0.56 in | 14.22 mm | 566 nm | 7-Segment | 105 mW |
