0358-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Flange Diameter [diameter]	Flange Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Finish	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Tail Type	Termination	Socket Depth	Socket Depth	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Material	Contact Finish Thickness	Contact Finish Thickness
Mill-Max Manufacturing Corp. 0358-0-15-15-34-14-10-0	-55 C	125 °C	0.11 in	2.79 mm	1.17 mm	0.81 mm	0.046 "	0.032 "	Gold	0.09 in	2.29 mm	8.71 mm	0.343 in	Turret	Knurled Press-Fit	0.19 in	4.83 mm	1.63 mm	0.064 in	Beryllium Copper	0.25 Ám	10 Áin
Mill-Max Manufacturing Corp. 0358-0-15-01-34-14-10-0	-55 C	125 °C	0.11 in	2.79 mm	1.17 mm	0.81 mm	0.046 "	0.032 "	Gold	0.09 in	2.29 mm	8.71 mm	0.343 in	Turret	Knurled Press-Fit	0.19 in	4.83 mm	1.63 mm	0.064 in	Beryllium Copper	0.25 Ám	10 Áin
Mill-Max Manufacturing Corp. 0358-0-15-80-34-14-10-0	-55 C	125 °C	0.11 in	2.79 mm	1.17 mm	0.81 mm	0.046 "	0.032 "	Gold	0.09 in	2.29 mm	8.71 mm	0.343 in	Turret	Knurled Press-Fit	0.19 in	4.83 mm	1.63 mm	0.064 in	Beryllium Copper	0.25 Ám	10 Áin

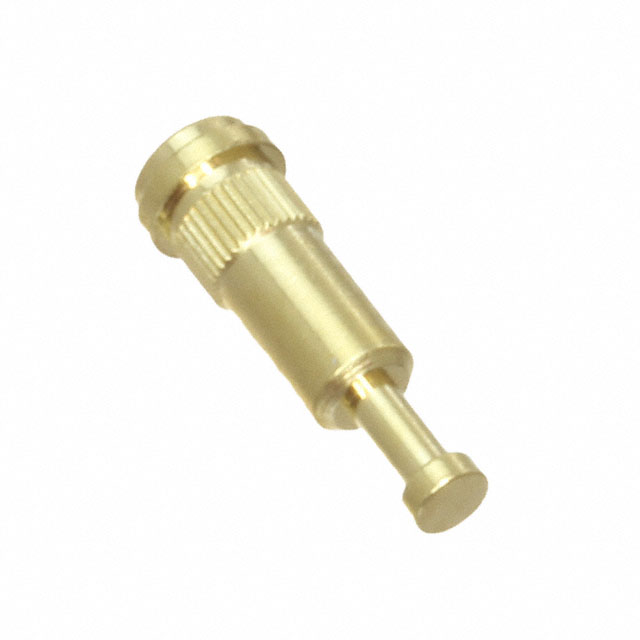

Mill-Max Manufacturing Corp. 0358-0-15-15-34-27-10-0	-55 C	125 °C	0.11 in	2.79 mm	1.17 mm	0.81 mm	0.046 "	0.032 "	Gold	0.09 in	2.29 mm	8.71 mm	0.343 in	Turret	Knurled Press-Fit	0.19 in	4.83 mm	1.63 mm	0.064 in	Beryllium Copper	0.76 Ám	30 Áin
Mill-Max Manufacturing Corp. 0358-0-15-80-34-27-10-0	-55 C	125 °C	0.11 in	2.79 mm	1.17 mm	0.81 mm	0.046 "	0.032 "	Gold	0.09 in	2.29 mm	8.71 mm	0.343 in	Turret	Knurled Press-Fit	0.19 in	4.83 mm	1.63 mm	0.064 in	Beryllium Copper	0.76 Ám	30 Áin
