0038-3 Series

Catalog

CONN PCB PIN WRAPOST RECEPT .025

Part	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish Thickness	Tail Type	Termination	Flange Diameter	Socket Depth	Length - Overall	Pin Hole Diameter	Mounting Hole Diameter	Contact Material	Accepts Pin Diameter (Min)	Accepts Pin Diameter (Max)	Contact Finish	Tail Diameter	Tail Diameter Shape
Mill-Max Manufacturing Corp. 0038-3-17-01-30-02-02-0	125 °C	-55 °C	100 µin	Wire Wrap	Press-Fit	0.072 in	0.083 in	0.7 in	0.043 in	0.057 in	Beryllium Copper	0.015 in	0.025 in	Tin-Lead

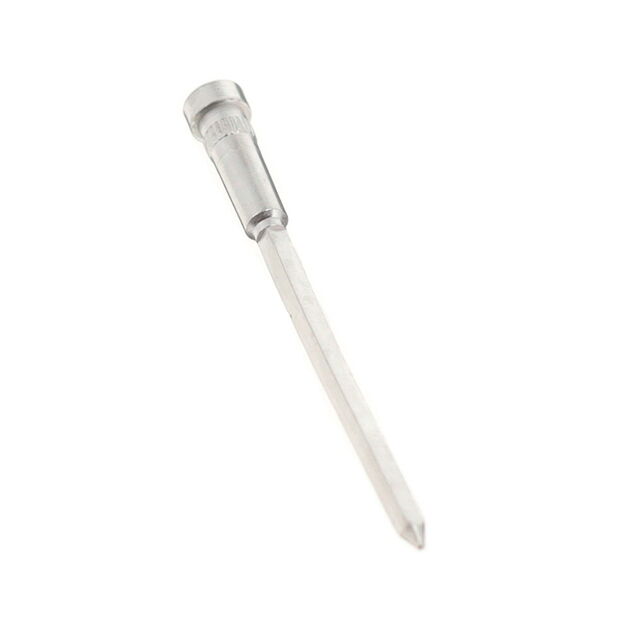

Mill-Max Manufacturing Corp. 0038-3-17-80-30-84-02-0	125 °C	-55 °C	100 µin	Wire Wrap	Press-Fit	0.072 in	0.162 in	0.7 in	0.043 in	0.057 in	Beryllium Copper	0.015 in	0.025 in	Tin	0.025 in	Square
Mill-Max Manufacturing Corp. 0038-3-05-21-00-00-01-0				Wire Wrap	Press-Fit	0.072 in		0.7 in		0.057 in				Unplated
Mill-Max Manufacturing Corp. 0038-3-17-80-30-14-02-0	125 °C	-55 °C	10 Ąin	Wire Wrap	Press-Fit	0.072 in	0.162 in	0.7 in	0.043 in	0.057 in	Beryllium Copper	0.015 in	0.025 in	Gold	0.025 in	Square

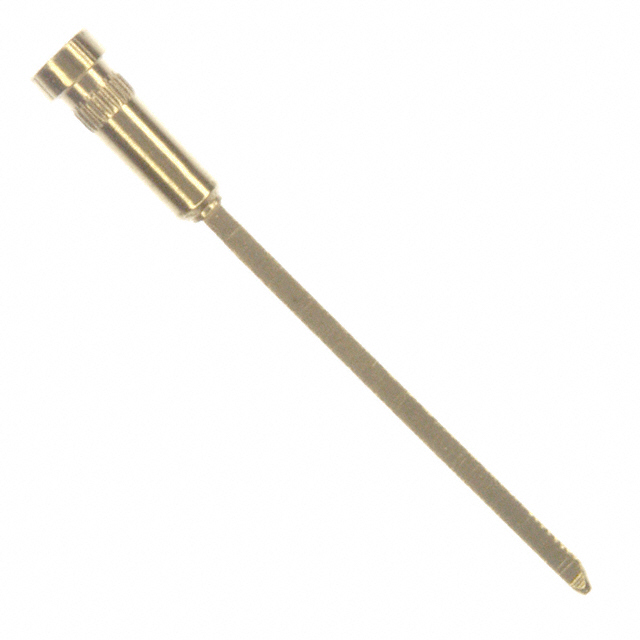

Mill-Max Manufacturing Corp. 0038-3-17-15-30-27-02-0	125 °C	-55 °C	30 µin	Wire Wrap	Press-Fit	0.072 in	0.162 in	0.7 in	0.043 in	0.057 in	Beryllium Copper	0.015 in	0.025 in	Gold	0.025 in	Square
Mill-Max Manufacturing Corp. 0038-3-05-15-00-00-01-0				Wire Wrap	Press-Fit	0.072 in		0.7 in		0.057 in				Unplated

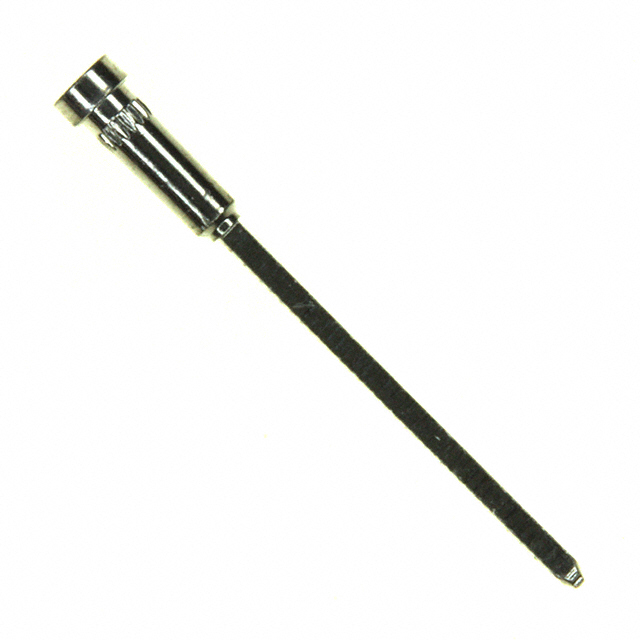

Mill-Max Manufacturing Corp. 0038-3-17-01-30-27-02-0	125 °C	-55 °C	30 µin	Wire Wrap	Press-Fit	0.072 in	0.162 in	0.7 in	0.043 in	0.057 in	Beryllium Copper	0.015 in	0.025 in	Gold	0.025 in	Square
