337-064 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 64POS 0.156

...

Part	Material - Insulation	Termination Rows [custom]	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Number of Rows [custom]	Mounting Type	Number of Positions/Bay/Row	Termination	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Color	Contact Finish Thickness	Contact Finish Thickness	Read Out	Contact Material	Contact Type	Gender	Flange Feature	Card Type	Flange Feature [diameter]	Flange Feature [diameter]	Features

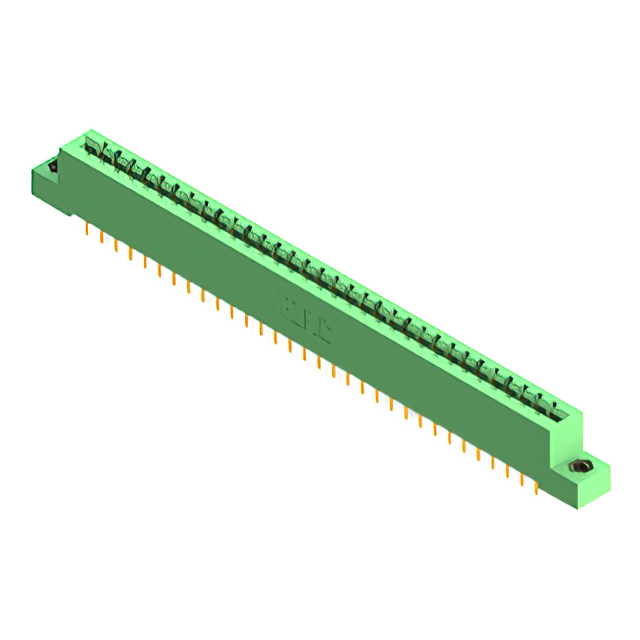

EDAC Inc. 337-064-520-207	Polyester Thermoplastic	2	3.96 mm	0.156 in	-40 C	105 ░C	64	2	Through Hole	32	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Green	0.25 Ám	10 Áin	Dual	Copper Alloy	Cantilever	Female	Flush Mount M3 Threaded Insert Top Opening	Non Specified - Dual Edge
EDAC Inc. 337-064-523-802	Polyester Thermoplastic	2	3.96 mm	0.156 in	-40 C	105 ░C	64	2	Through Hole	32	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Green	0.25 Ám	10 Áin	Dual	Copper Alloy	Cantilever	Female		Non Specified - Dual Edge	3.25 mm	0.128 "
EDAC Inc. 337-064-540-203	Polyester Thermoplastic	2	3.96 mm	0.156 in	-40 C	105 ░C	64	2	Through Hole	32	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Green	0.25 Ám	10 Áin	Dual	Copper Alloy	Cantilever	Female	Floating Bobbin Flush Mount	Non Specified - Dual Edge	2.95 mm	0.116 "
EDAC Inc. 337-064-524-204	Polyester Thermoplastic	2	3.96 mm	0.156 in	-40 C	105 ░C	64	2	Through Hole	32	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Green	0.25 Ám	10 Áin	Dual	Copper Alloy	Cantilever	Female	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	3.96 mm	0.156 "

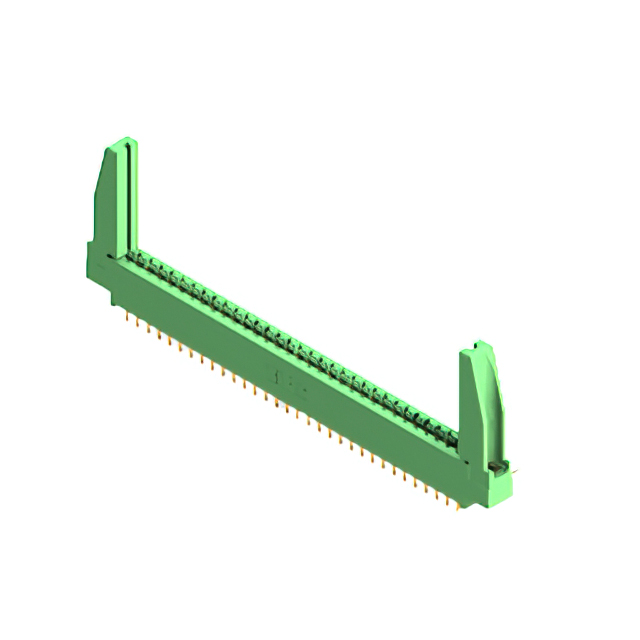

EDAC Inc. 337-064-558-878	Polyester Thermoplastic	2	3.96 mm	0.156 in	-40 C	105 ░C	64	2	Right Angle Through Hole	32	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Green	0.25 Ám	10 Áin	Dual	Copper Alloy	Cantilever	Female	4-40 Threaded Insert Top Mount Opening	Non Specified - Dual Edge			Card Guides
EDAC Inc. 337-064-540-204	Polyester Thermoplastic	2	3.96 mm	0.156 in	-40 C	105 ░C	64	2	Through Hole	32	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Green	0.25 Ám	10 Áin	Dual	Copper Alloy	Cantilever	Female	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	3.96 mm	0.156 "
EDAC Inc. 337-064-559-203	Polyester Thermoplastic	2	3.96 mm	0.156 in	-40 C	105 ░C	64	2	Right Angle Through Hole	32	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Green	0.25 Ám	10 Áin	Dual	Copper Alloy	Cantilever	Female	Floating Bobbin Flush Mount	Non Specified - Dual Edge	2.95 mm	0.116 "
EDAC Inc. 337-064-500-807	Polyester Thermoplastic	2	3.96 mm	0.156 in	-40 C	105 ░C	64	2	Through Hole	32	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Green	0.25 Ám	10 Áin	Dual	Copper Alloy	Cantilever	Female	M3 Threaded Insert Top Mount Opening	Non Specified - Dual Edge

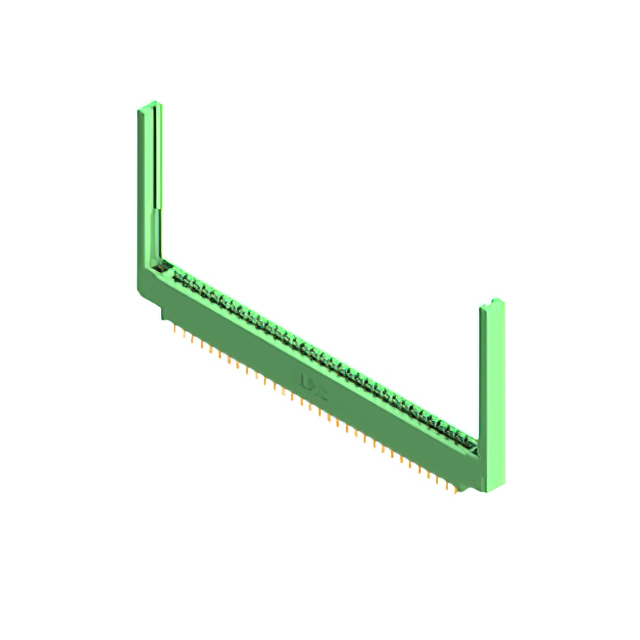

EDAC Inc. 337-064-540-868	Polyester Thermoplastic	2	3.96 mm	0.156 in	-40 C	105 ░C	64	2	Through Hole	32	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Green	0.25 Ám	10 Áin	Dual	Copper Alloy	Cantilever	Female	4-40 Threaded Insert Top Mount Opening	Non Specified - Dual Edge			Card Guides
EDAC Inc. 337-064-560-808	Polyester Thermoplastic	2	3.96 mm	0.156 in	-40 C	105 ░C	64	2	Board Edge Straddle Mount	32	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Green	0.25 Ám	10 Áin	Dual	Copper Alloy	Cantilever	Female	4-40 Threaded Insert Top Mount Opening	Non Specified - Dual Edge			Card Extender
