11136000 Series

Manufacturer: HARTING

Catalog

HAN-YELLOCK 60M CARRIER HOOD (PLAIN PUSH BUTTON) - OUTDOOR VERSION

Part	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Housing Finish	Lock Location	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Connector Type	Housing Material	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Style

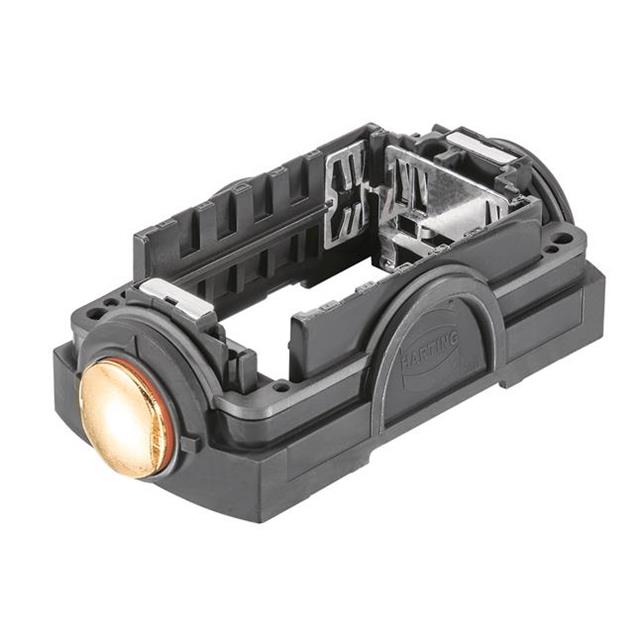

HARTING 11136000100	Black	125 °C	-40 C	IP65 IP67	Zinc Passivation	Push Button Snap Lock on Hood Carrier	116.6 mm	4.591 in	1.339 in	34 mm	56 mm	2.205 in	Hood - Carrier	Zinc Die Cast

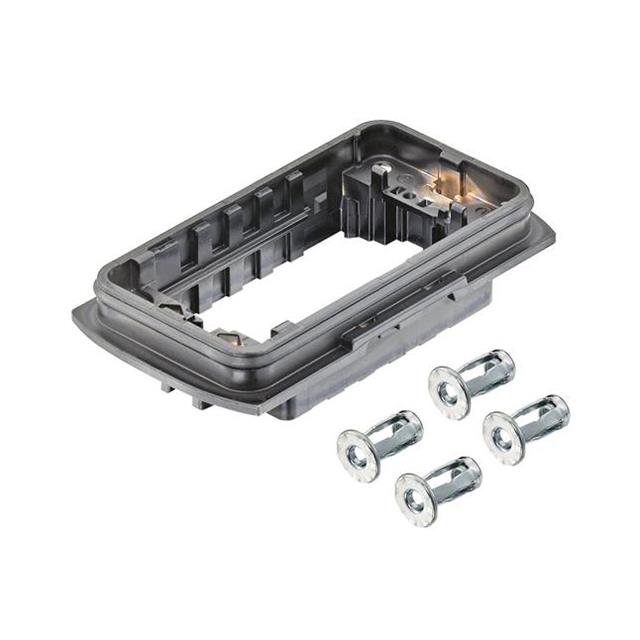

HARTING 11136000302		125 °C	-40 C	IP65 IP67	Zinc Passivation	Push Button Snap Lock on Hood Carrier	4.094 in			0.921 in	2.236 in		Base - Panel Mount	Zinc Die Cast	23.4 mm	104 mm	56.8 mm	Bottom Entry

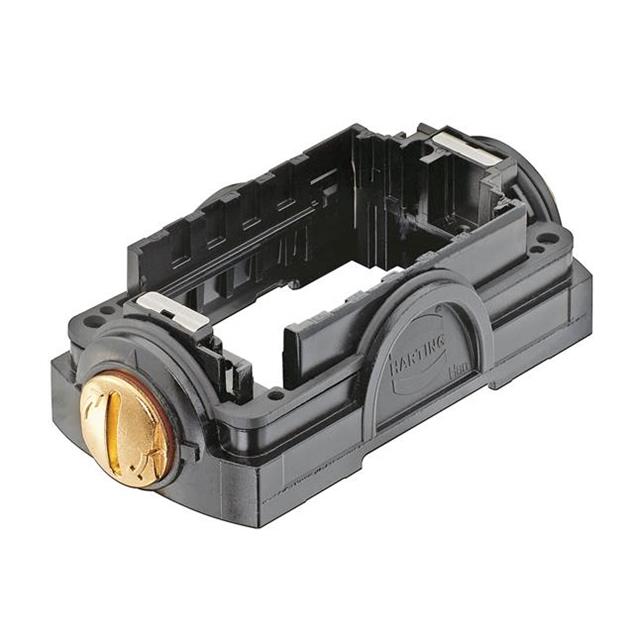

HARTING 11136000110	Black	125 °C	-40 C	IP65 IP67	Zinc Passivation	Push Button Snap Lock on Hood Carrier	116.6 mm	4.591 in	1.339 in	34 mm	56 mm	2.205 in	Hood - Carrier	Zinc Die Cast
